CHASSIS ELECTRICAL EQUIPMENT
ZX550A6 GPZ550 1989 FG

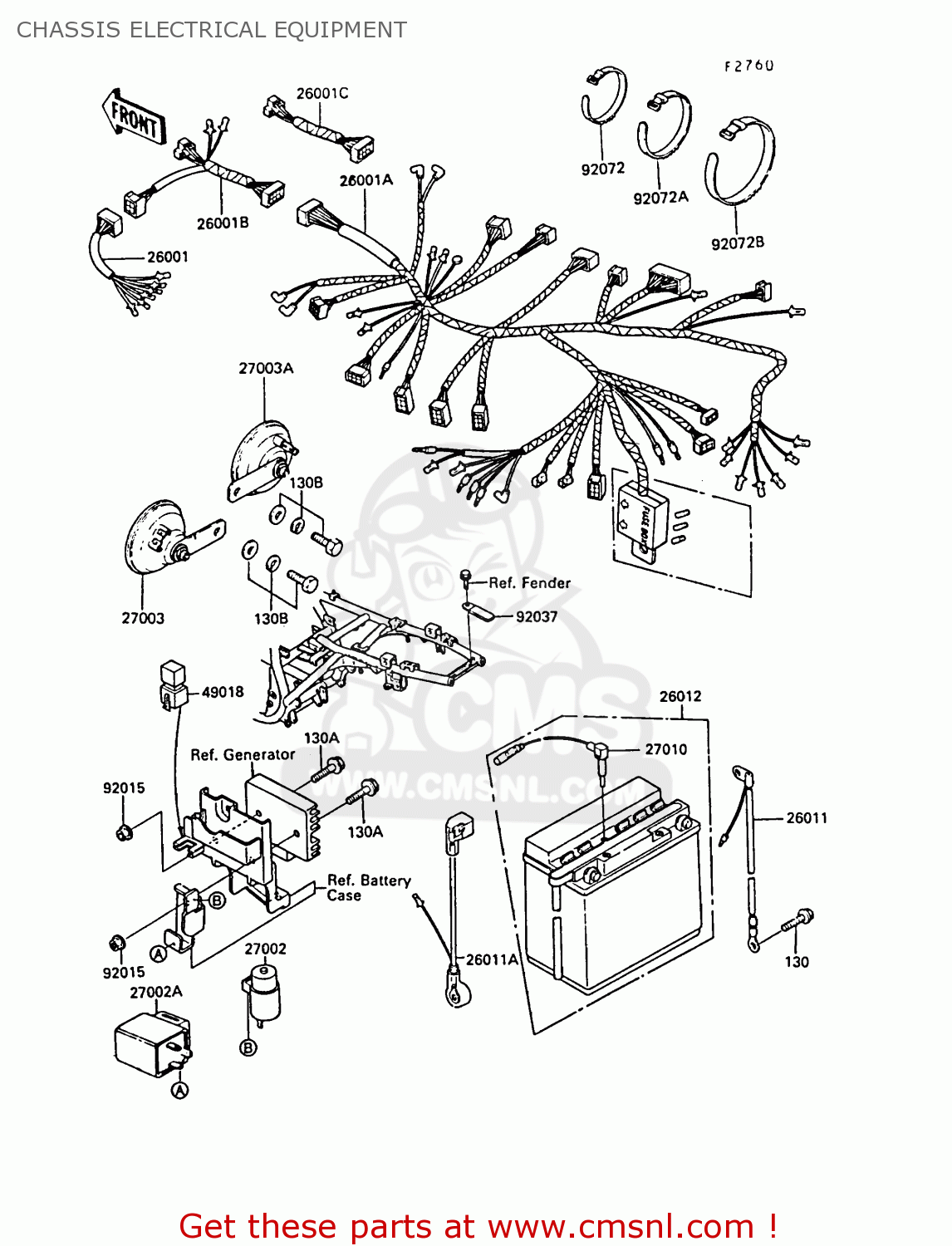

Chassis electrical equipment diagram ZX550A6 GPZ550 1989 FG
CHASSIS ELECTRICAL EQUIPMENT ZX550A6 GPZ550 1989 FG
×
prices are in EUR
ref
part #
description
quantity
130
130B0608
ref: 130
BOLT,FLANGED,6X8
€ 0.50
130A
130B0625
ref: 130A
BOLT,FLANGED,6X25
€ 0.50
130B
130C0812
ref: 130B
BOLT-FLANGED,8X12,BLA
€ 0.50
26001
260011520
ref: 26001
HARNESS,SUB,FR SIGNAL
€ 23.50
26001A
260011582
ref: 26001A
HARNESS,MAIN
€ 214.00
26001B
260011654
ref: 26001B
HARNESS,HEAD
€ 24.50
26001C
260011793
ref: 26001C
HARNESS,IGNITER
€ 19.50
26011
260111195
ref: 26011
WIRE-LEAD,BATTERY GRO
€ 14.50
26011A
260111255
ref: 26011A
WIRE-LEAD,BATTERY (+)
€ 20.00
26012
260121215
ref: 26012
BATTERY,12V 12AH,FB12
€ 73.00
27002
270021051
ref: 27002
RELAY-ASSY
€ 32.00
27002A
270021060
ref: 27002A
RELAY-ASSY,TURN SIGNA
€ 65.50
27003
270031057
ref: 27003
HORN,LH
€ 62.00
27003A
270031058
ref: 27003A
HORN,RH
€ 32.50
27010
270101085
ref: 27010
SWITCH,BATTERY
€ 32.50
49018
490181052
ref: 49018
DIODE
€ 35.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072031
ref: 92072A
BAND,MIDDLE
€ 3.00
92072B
920721087
ref: 92072B
BAND,L=278
€ 3.50
