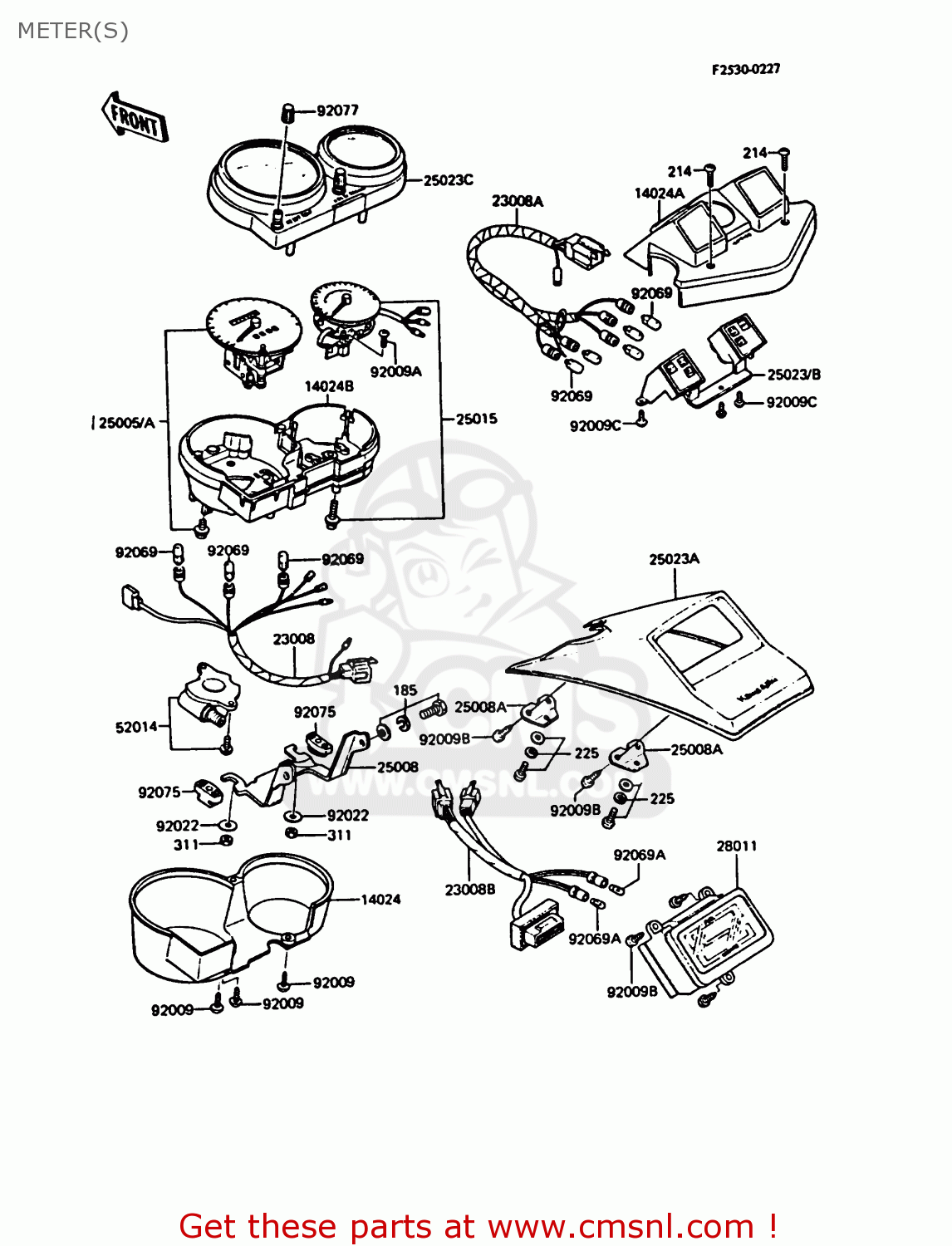

METER(S)

ref

part #

description

quantity

185

185C0816
ref: 185

BOLT-UPSET-WSP-SMALL

€ 3.00

214

214C0430
ref: 214

SCREW-PAN+-

€ 0.50

225

225B0514
ref: 225

SCREW-PAN-WSP-CROS

€ 2.00

311

311B0500
ref: 311

NUT-HEX

€ 0.50

14024

140251691
ref: 14024

COVER,METER CASE,LWR

€ 31.50

14024A

140251693
ref: 14024A

COVER,PILOT BOX

€ 64.50

14024B

140251694
ref: 14024B

COVER,METER HOUSING

€ 79.50

23008

230081188
ref: 23008

SOCKET-ASSY,METER

€ 44.00

23008A

230081192
ref: 23008A

SOCKET-ASSY,LAMP ASSY

€ 55.50

23008B

230081202
ref: 23008B

SOCKET-ASSY,FUEL&WARN

€ 39.00

25005

250051219
ref: 25005
EUFGFRGRITNRSDST

SPEEDOMETER,KPH ZX750-A1

€ 202.50

25005A

250051220
ref: 25005A
UK

SPEEDOMETER,MPH

€ 203.50

25008

250081060
ref: 25008

BRACKET-METER

€ 46.50

25008A

250081103
ref: 25008A

BRACKET-METER,FUEL TA

€ 9.50

25015

250151213
ref: 25015

TACHOMETER,X1000R/MIN

€ 229.00

25023

250231058
ref: 25023
EUFGFRGRITNRSTUK

COVER-METER CASE,LAMP

€ 61.50

25023A

250231102
ref: 25023A

COVER-METER CASE,FUEL

€ 78.50

25023B

250231109
ref: 25023B
SD

COVER-METER CASE,LAMP

€ 66.50

25023C

250231114
ref: 25023C

COVER-METER CASE,UPP

€ 81.50

28011

280111042
ref: 28011

METER,FUEL&WARNING

€ 792.00

52014

520141006
ref: 52014

ELBOW,SPEEDOMETER GEA

€ 35.00

92009

920091158
ref: 92009

SCREW,4X16,BLACK

€ 2.50

92009A

920091172
ref: 92009A

SCREW,2X6,BLACK

€ 2.00

92009B

920091254
ref: 92009B

SCREW,TAPPING,4X12

€ 2.50

92009C

920091255
ref: 92009C

SCREW,TAPPING,3X12

€ 2.50

92022

92022263
ref: 92022

WASHER,PLAIN,6MM

€ 1.50

92069

920691020
ref: 92069

BULB,12C3W T-7

€ 3.00

92069A

920691051
ref: 92069A

BULB,12V1.4W T-5

€ 2.50

92075

920751495
ref: 92075

DAMPER,METER BRACKET

€ 8.00

92077

920771017
ref: 92077

KNOB,RESET TRIP

€ 16.00
