FRONT FORK

ZX550A2 GPZ550 1985 EUROPE UK FR FG GR IT NR SD ST

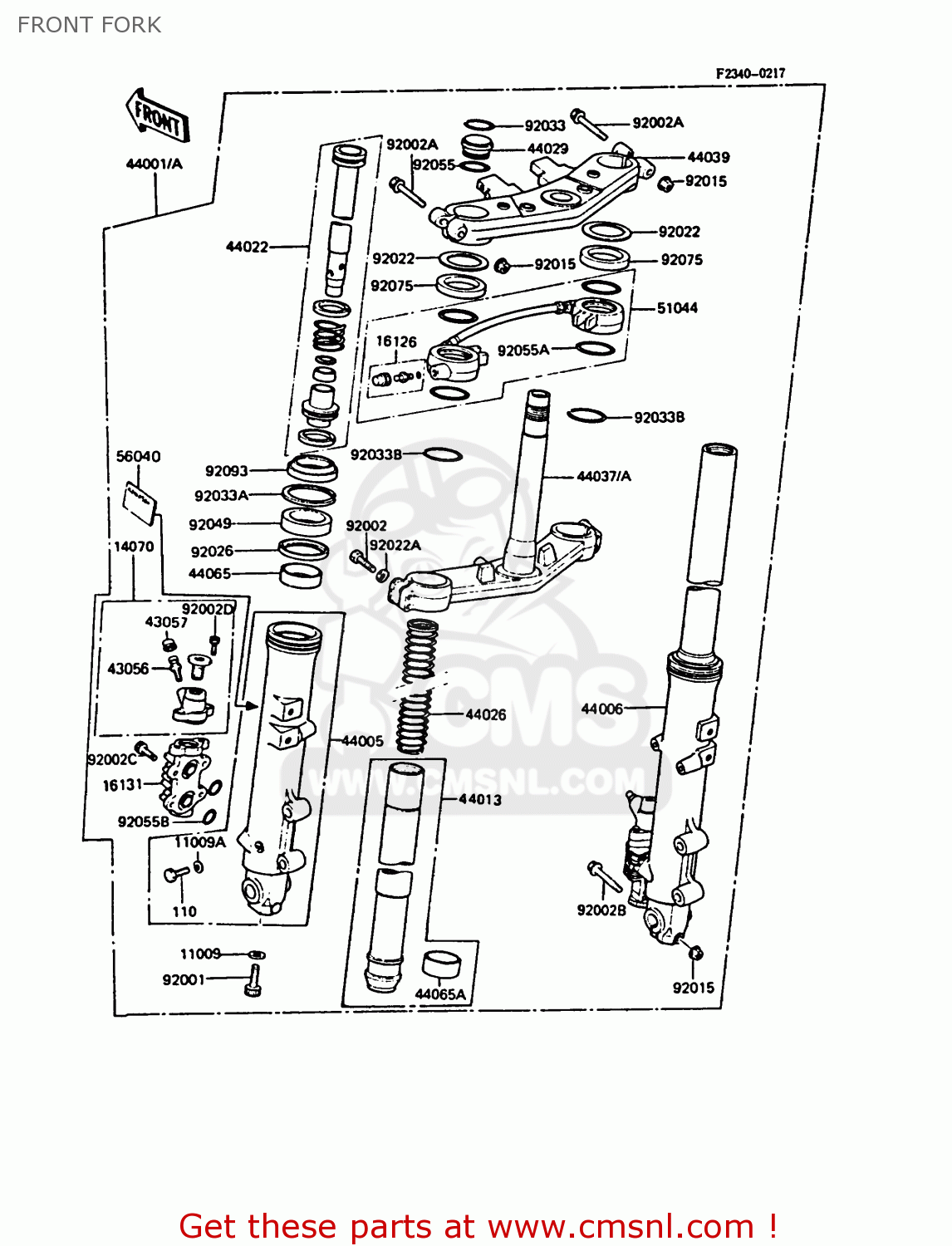

Front fork diagram ZX550A2 GPZ550 1985 EUROPE UK FR FG GR IT NR SD ST

FRONT FORK ZX550A2 GPZ550 1985 EUROPE UK FR FG GR IT NR SD ST
FRONT FORK ZX550A2 GPZ550 1985 EUROPE UK FR FG GR IT NR SD ST
FRONT FORK ZX550A2 GPZ550 1985 EUROPE UK FR FG GR IT NR SD ST
prices are in EUR
ref
part #
description
quantity
11009
44045051
ref: 11009
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
11009A
44045052
ref: 11009A
GASKET,DRAIN PLUG (NAS)
€ 6.00
14070
140701053
ref: 14070
BODY-BREATHER,ANTI-DI
140701053
€ 103.50
16126
161261043
ref: 16126
VALVE,AIR
161261043
€ 24.50
16131
161311056
ref: 16131
BODY-VALVE,FORK,ANTI-
161311056
€ 66.50
43056
430561053
ref: 43056
BREATHER-BRAKE
€ 9.00
43057
430571051
ref: 43057
CAP-BREATHER
€ 3.50
44001
440011514
ref: 44001
EUFRGRITNRSTUK
FORK-FRONT
€ 2,405.50
44001A
440011515
ref: 44001A
FGSD
FORK-FRONT
€ 2,405.50
44005
440051214
ref: 44005
PIPE-LEFT FORK OUTER
440051214
€ 176.00
44006
440061213
ref: 44006
PIPE-RIGHT FORK OUTER
€ 223.50
44013
440131217
ref: 44013
PIPE-FORK INNER
440131217
€ 124.00
44022
440221165
ref: 44022
CYLINDER-FORK
€ 81.00
44026
440261274
ref: 44026
SPRING-FRONT FORK
440261274
€ 51.00
44029
440291006
ref: 44029
SEAT-FORK SPRING
440291006
€ 9.50
44037
440371114
ref: 44037
EUFRGRITNRSTUK
HOLDER-FORK UNDER
€ 202.00
44037A
440371161
ref: 44037A
FGSD
HOLDER-FORK UNDER
440371161
€ 202.00
44039
440391107
ref: 44039
HOLDER-FORK UPPER
440391107
€ 96.00
44065
440651020
ref: 44065
BUSHING-FRONT FORK
440651020
€ 13.00
44065A
440651054
ref: 44065A
BUSHING-FRONT FORK,IN
440651054
€ 13.00
51044
510441055
ref: 51044
TUBE-ASSY,FRONT FORK
€ 117.50
56040
560401033
ref: 56040
LABEL-WARNING
560401033
€ 2.50
92001
44041078
ref: 92001
BOLT, FORK CYLINDER
44041078
€ 6.50
92002
920021156
ref: 92002
BOLT,8X40
€ 4.00
92002A
920021158
ref: 92002A
BOLT,FLANGED,8X55
920021158
€ 6.00
92002B
920021159
ref: 92002B
BOLT,FLANGED,8X50
920021159
€ 4.00
92002C
920021189
ref: 92002C
BOLT,SOCKET,6X15
€ 3.50
92002D
920021190
ref: 92002D
BOLT,SOCKET,5X10
€ 2.50
110
110C0608
ref: 110
BOLT
€ 0.50
92015
920151408
ref: 92015
NUT,FLANGED,8MM
920151408
€ 1.00
92022
920221486
ref: 92022
WASHER
920221486
€ 5.50
92022A
920221552
ref: 92022A
WASHER,SPRING,8MM
920221552
€ 2.50
92026
920261108
ref: 92026
SPACER
€ 13.50
92033
920331023
ref: 92033
CIRCLIP
920331023
€ 3.00
92033A
920331055
ref: 92033A
RING,SNAP
920331055
€ 4.00
92033B
920331155
ref: 92033B
RING-SNAP
920331155
€ 3.50
92049
920491089
ref: 92049
SEAL-OIL
920491089
€ 25.50
92055
920551034
ref: 92055
RING-O
920551034
€ 5.00
92055A
920551129
ref: 92055A
RING-O
920551129
€ 3.00
92055B
920551219
ref: 92055B
RING-O
920551219
€ 1.00
92075
920751623
ref: 92075
DAMPER,FORK
€ 3.00
92093
920931154
ref: 92093
SEAL
920931154
€ 19.50
