FRAME

ZX550A2 GPZ550 1985 EUROPE UK FR FG GR IT NR SD ST

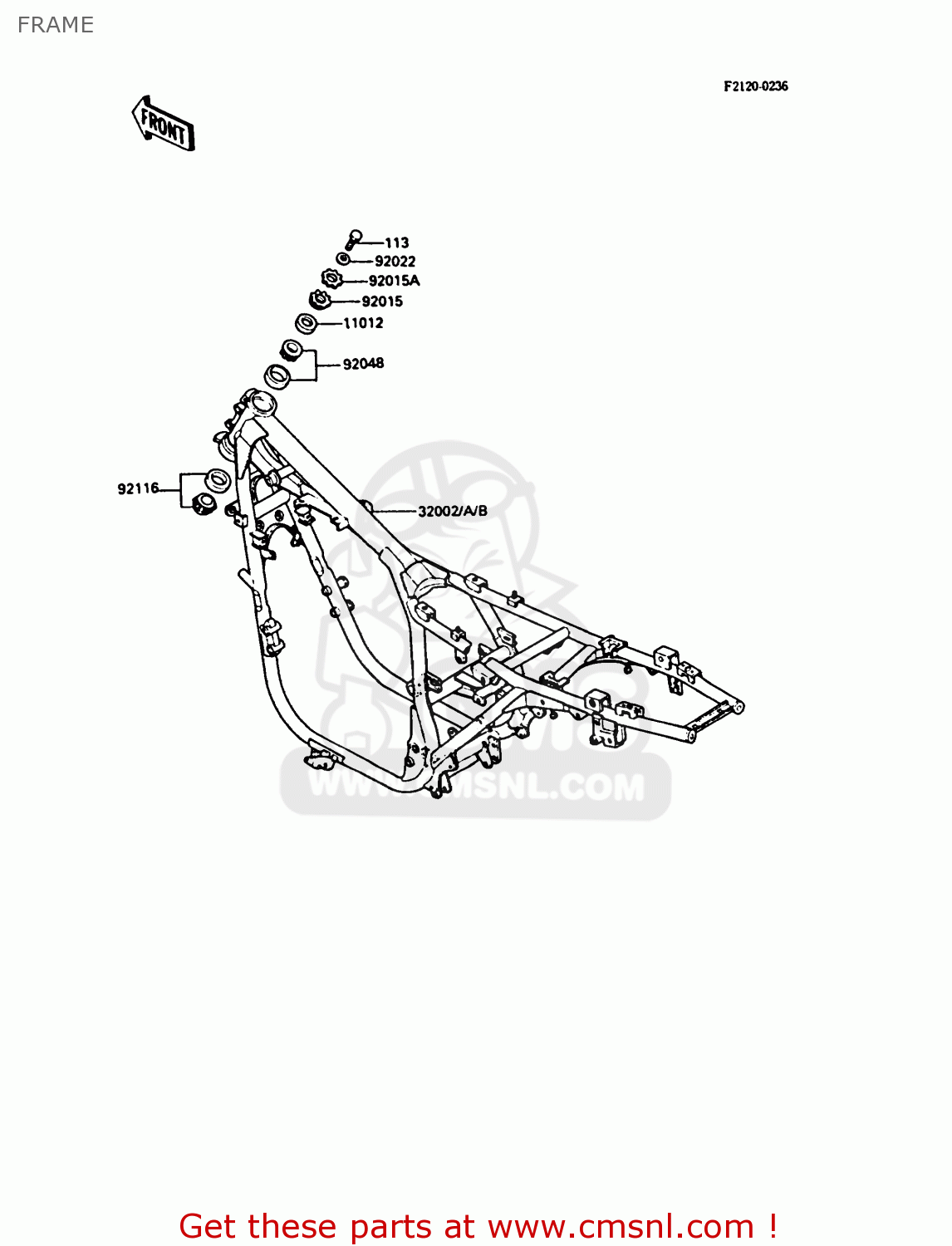

Frame diagram ZX550A2 GPZ550 1985 EUROPE UK FR FG GR IT NR SD ST

prices are in EUR

ref

part #

description

quantity

113

113G1425
ref: 113

BOLT-SMALL-FINE,14X25

€ 5.50

11012

110121256
ref: 11012

CAP,STEERING STEM

€ 4.00

32002

320021681
ref: 32002
EUFRGRITNRSTUK

FRAME-COMP

€ 925.00

32002A

320021682
ref: 32002A
FG

FRAME-COMP

€ 1,083.50

32002B

320021691
ref: 32002B
SD

FRAME-COMP

€ 770.50

92015

920151377
ref: 92015

NUT,25MM,T=10

€ 18.50

92015A

920151378
ref: 92015A

NUT,25MM,T=6

€ 14.50

92022

920221229
ref: 92022

WASHER,14.5X36X4.5

€ 8.00

92048

92047017
ref: 92048

CONE,STRNG,STEM

€ 49.50

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

FRAME

all assemblies
