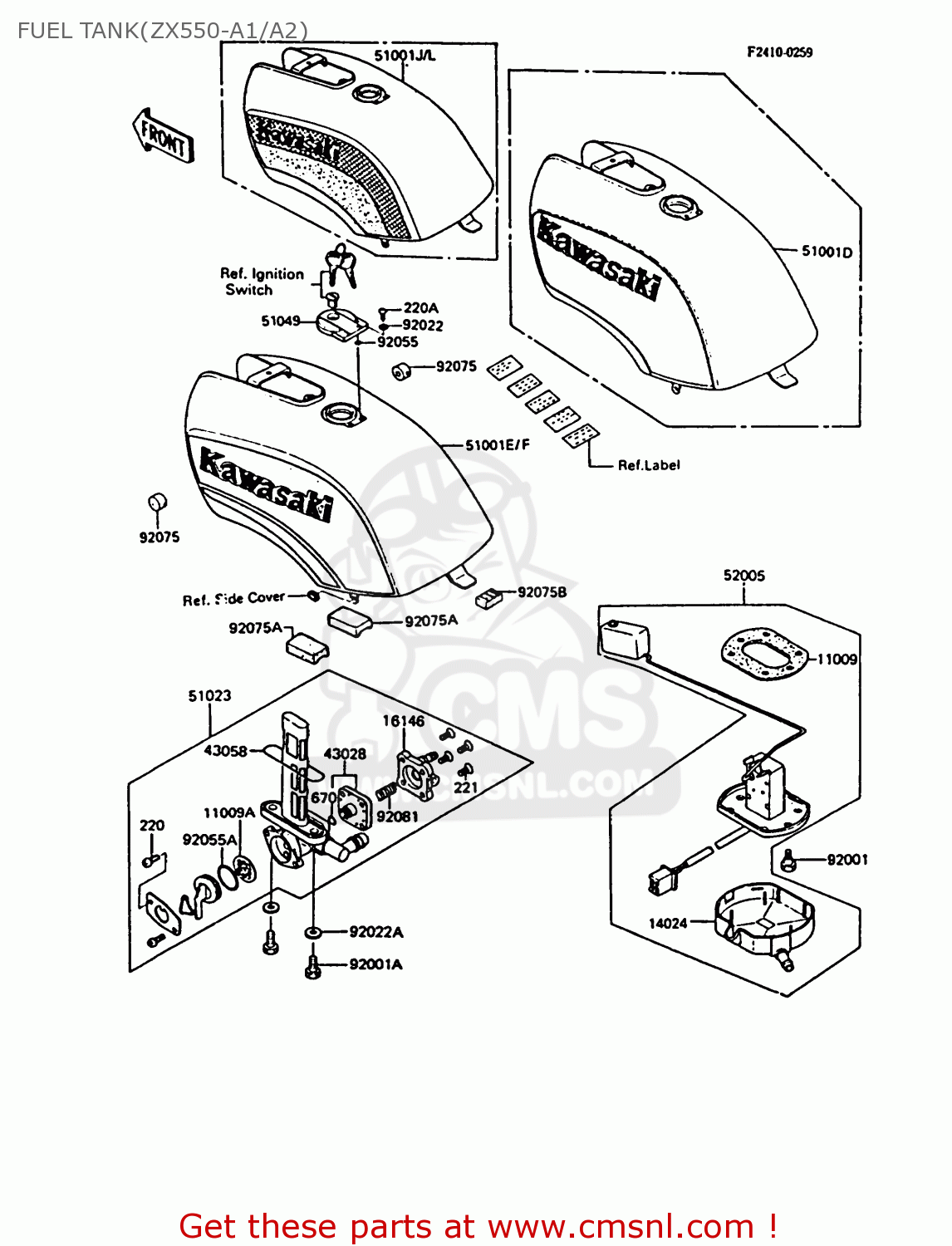

FUEL TANK(ZX550-A1/A2)

ref

part #

description

quantity

11009

110091037
ref: 11009

GASKET (NAS)

€ 14.00

11009A

110091188
ref: 11009A

GASKET,TAP VALVE (NAS)

€ 4.00

14024

140251400
ref: 14024

COVER,FUEL GAUGE

€ 22.50

16146

161461009
ref: 16146

COVER-ASSY,TAP DIAPHR

€ 12.50

43028

430281033
ref: 43028

DIAPHRAGM

€ 15.00

43058

51039003
ref: 43058

'O' RING

€ 4.00

51001E

510015396B1
ref: 51001E
FGUK

TANK-COMP-FUEL,F.RED

€ 621.50

51001F

510015397F2
ref: 51001F
UK

TANK-COMP-FUEL,G.SILV

€ 698.00

51001J

510015495B1
ref: 51001J
EUGRITNRSDST

TANK-COMP-FUEL,F.RED

€ 824.50

51001L

510015499F2
ref: 51001L
FRGRITNRSDST

TANK-COMP-FUEL,G.SILV

€ 551.00

51023

510231044
ref: 51023

TAP-ASSY

€ 105.50

51049

510491056
ref: 51049

CAP-TANK

€ 120.00

52005

520051034
ref: 52005

GAUGE,FUEL

€ 72.00

92001

920011069
ref: 92001

BOLT,FUEL GAUGE FIT

€ 4.50

92001A

920011091
ref: 92001A

BOLT,6X20,FUEL TAP

€ 2.50

92022

920221038
ref: 92022

WASHER,PLAIN

€ 2.50

92022A

92022183
ref: 92022A

WASHER,6.2X11X1.5

€ 2.50

92055

920551023
ref: 92055

ORING

€ 2.50

92055A

920551085
ref: 92055A

'O' RING,FUEL TAP LEV

€ 3.00

92075

92075101
ref: 92075

DAMPER RUBBER-FL TANK

€ 4.00

220

220B0308
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220B0510
ref: 220A

SCREW-PAN-CROS,5X10

€ 0.50

221

221B0414
ref: 221

SCREW-CSR-CROS,4X14

€ 2.50

670

670B1504
ref: 670

O RING,4MM

€ 2.50

92075A

920751463
ref: 92075A

DAMPER,FUEL TANK

€ 6.00

92075B

920751553
ref: 92075B

DAMPER,FUEL ,TANK

€ 7.00

92081

920811240
ref: 92081

SPRING,DIAPHRAGM VLV

€ 2.50

all assemblies
