SWINGARM

ZX400L4 ZXR400 1994 UNITED KINGDOM FR NL AR FG IT

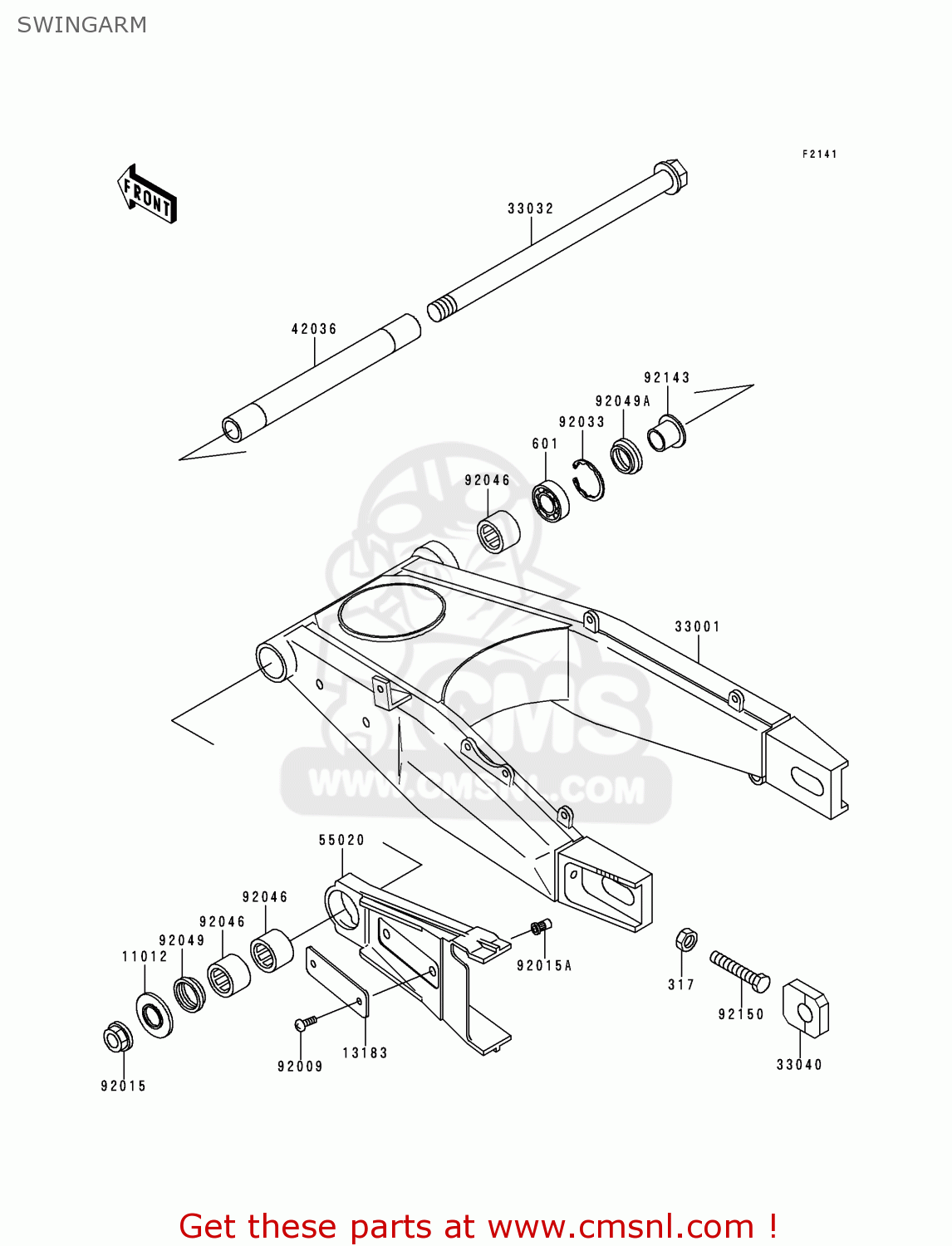

Swingarm diagram ZX400L4 ZXR400 1994 UNITED KINGDOM FR NL AR FG IT

SWINGARM ZX400L4 ZXR400 1994 UNITED KINGDOM FR NL AR FG IT

SWINGARM ZX400L4 ZXR400 1994 UNITED KINGDOM FR NL AR FG IT

prices are in EUR

ref

part #

description

quantity

317

317G0800
ref: 317

NUT-HEX-SMALL,8MM

€ 0.50

601

601A6004
ref: 601

BEARING-BALL,#6004

€ 13.00

11012

110121658
ref: 11012

CAP

€ 5.50

13183

131831574
ref: 13183

PLATE,CHAIN GUARD

€ 6.00

33001

330011381KF
ref: 33001

ARM-COMP-SWING,SILVER

€ 1,230.50

33032

330321152
ref: 33032

SHAFT-SWING ARM

€ 45.00

33040

330401118
ref: 33040

ADJUSTER-CHAIN

€ 16.00

42036

420361283
ref: 42036

SLEEVE,SWING ARM,L=21

€ 62.00

55020

550201374
ref: 55020

GUARD,CHAIN

€ 45.50

92009

920091181
ref: 92009

SCREW,6X18

€ 2.00

92015

920151724
ref: 92015

NUT,FLANGED,20MM

€ 10.50

92015A

920151792
ref: 92015A

NUT,POP,6MM,L=16.5

€ 3.00

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92046

920461111
ref: 92046

BEARING-NEEDLE,BM2817

€ 21.50

92049

920491181
ref: 92049

SEAL-OIL

€ 7.50

92049A

920491314
ref: 92049A

SEAL-OIL,MHSA25 42 6

€ 9.00

92143

921431227
ref: 92143

COLLAR,SWING ARM,L=12

€ 7.50

92150

921501350
ref: 92150

BOLT

€ 1.50
