CRANKSHAFT

ZX400L4 ZXR400 1994 UNITED KINGDOM FR NL AR FG IT

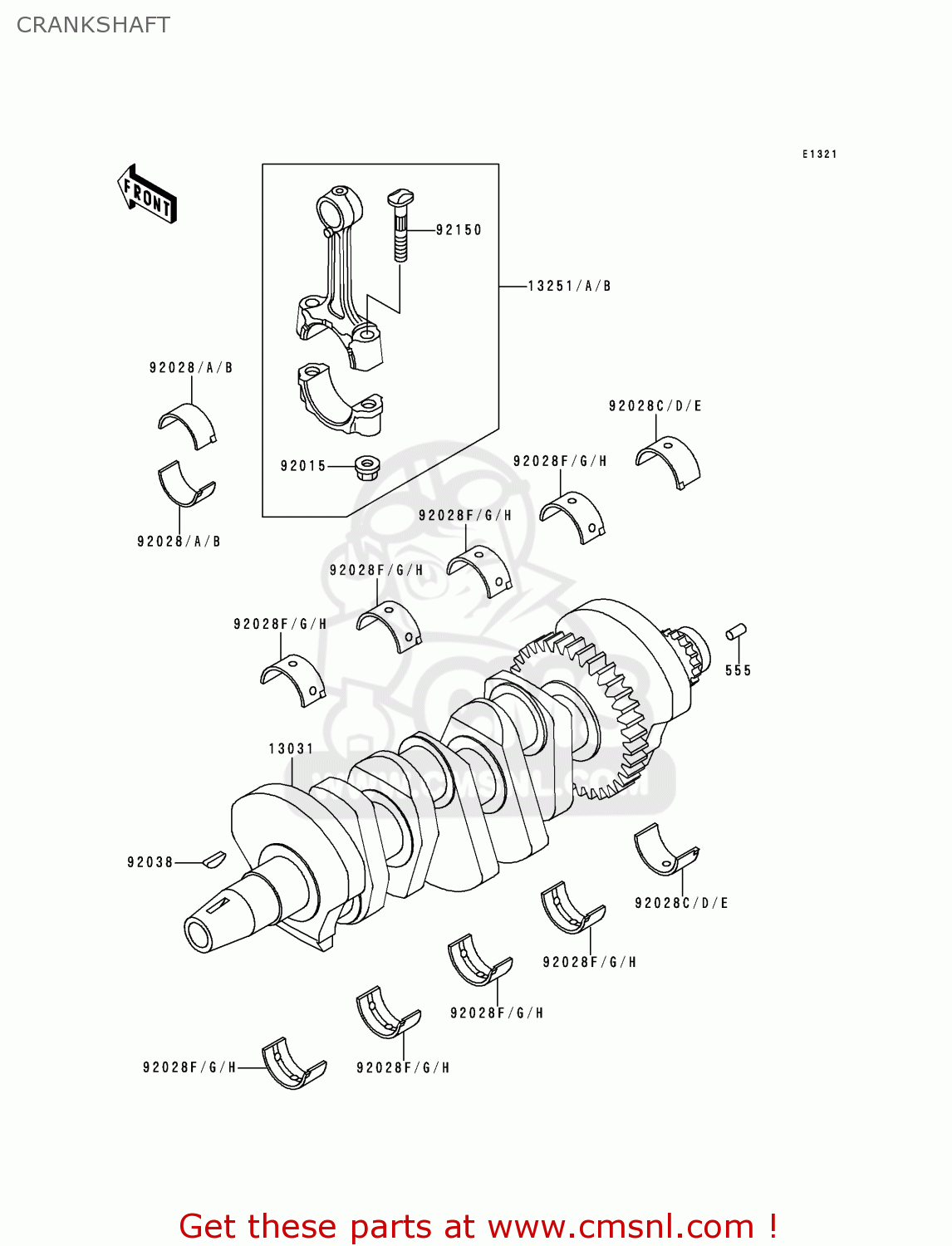

Crankshaft diagram ZX400L4 ZXR400 1994 UNITED KINGDOM FR NL AR FG IT

CRANKSHAFT ZX400L4 ZXR400 1994 UNITED KINGDOM FR NL AR FG IT

CRANKSHAFT ZX400L4 ZXR400 1994 UNITED KINGDOM FR NL AR FG IT

prices are in EUR

ref

part #

description

quantity

555

555A0408
ref: 555

PIN-SPRING,4X8

€ 2.50

13031

130311343
ref: 13031

CRANKSHAFT-COMP

€ 1,401.50

13251

132511096HH
ref: 13251

ROD-ASSY-CONNECTING,H

€ 161.50

13251B

132511106JJ
ref: 13251B

ROD-ASSY-CONNECTING,J

€ 111.50

92015

920151715
ref: 92015

NUT,CONNECTING ROD,7M

€ 4.00

92028

920281492
ref: 92028

BUSHING,CONNECTING RO

€ 13.00

92028A

920281493
ref: 92028A

BUSHING,CONNECTING RO

€ 13.00

92028B

920281494
ref: 92028B

BUSHING,CONNECTING RO

€ 13.00

92028C

920281768
ref: 92028C

BUSHING,CRANKSHAFT,#1

€ 14.00

92028D

920281769
ref: 92028D

BUSHING,CRANKSHAFT,#1

€ 13.00

92028E

920281770
ref: 92028E

BUSHING,CRANKSHAFT,#1

€ 12.00

92028F

920281771
ref: 92028F

BUSHING,CRANKSHAFT,#2

€ 14.00

92028G

920281772
ref: 92028G

BUSHING,CRANKSHAFT,#2

€ 12.00

92028H

920281773
ref: 92028H

BUSHING,CRANKSHAFT,#2

€ 14.00

92038

92038001
ref: 92038

WOODRUFF KEY

€ 3.00

92150

921501081
ref: 92150

BOLT,CONNECTING ROD,7

€ 6.50
