CYLINDER/PISTON(S)

ZX400L4 ZXR400 1994 UNITED KINGDOM FR NL AR FG IT

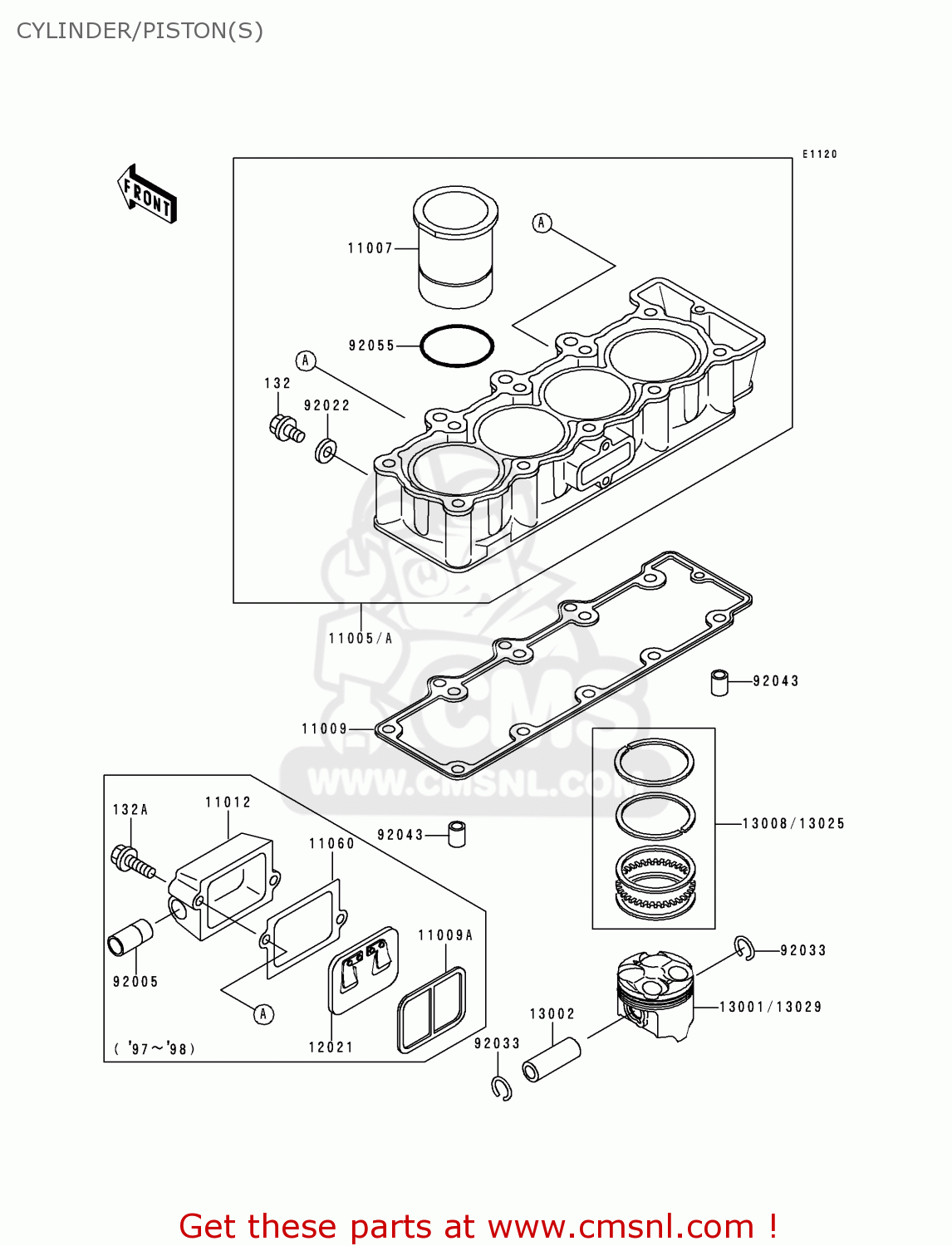

Cylinder/piston(s) diagram ZX400L4 ZXR400 1994 UNITED KINGDOM FR NL AR FG IT

prices are in EUR

ref

part #

description

quantity

132

132G0610
ref: 132

BOLT-FLANGED-SMALL

€ 1.00

11005

110051660
ref: 11005

CYLINDER-ENGINE

€ 1,208.50

11007

110071117
ref: 11007

LINER-CYLINDER

€ 92.50

11009

110091734
ref: 11009

GASKET,CYLNDER BASE,T (NAS)

€ 20.50

13001

130011333
ref: 13001

PISTON-ENGINE,STD

€ 55.50

13002

130021084
ref: 13002

PIN-PISTON

€ 13.00

13008

130081133
ref: 13008

RING-SET-PISTON,STD

€ 54.50

13025

130251108
ref: 13025

RING-SET-PISTON L,O/S

€ 42.00

13029

130291199
ref: 13029

PISTON-ENGINE L,O/S 0

€ 49.00

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92033

920331151
ref: 92033

RING-SNAP,PISTON PIN

€ 2.50

92043

920431264
ref: 92043

PIN,DOWEL,8.2X10X14

€ 0.50

92055

920551404
ref: 92055

RING-O,62.5X2.4

€ 4.50
