STARTER MOTOR

ZX400L4 ZXR400 1994 UNITED KINGDOM FR NL AR FG IT

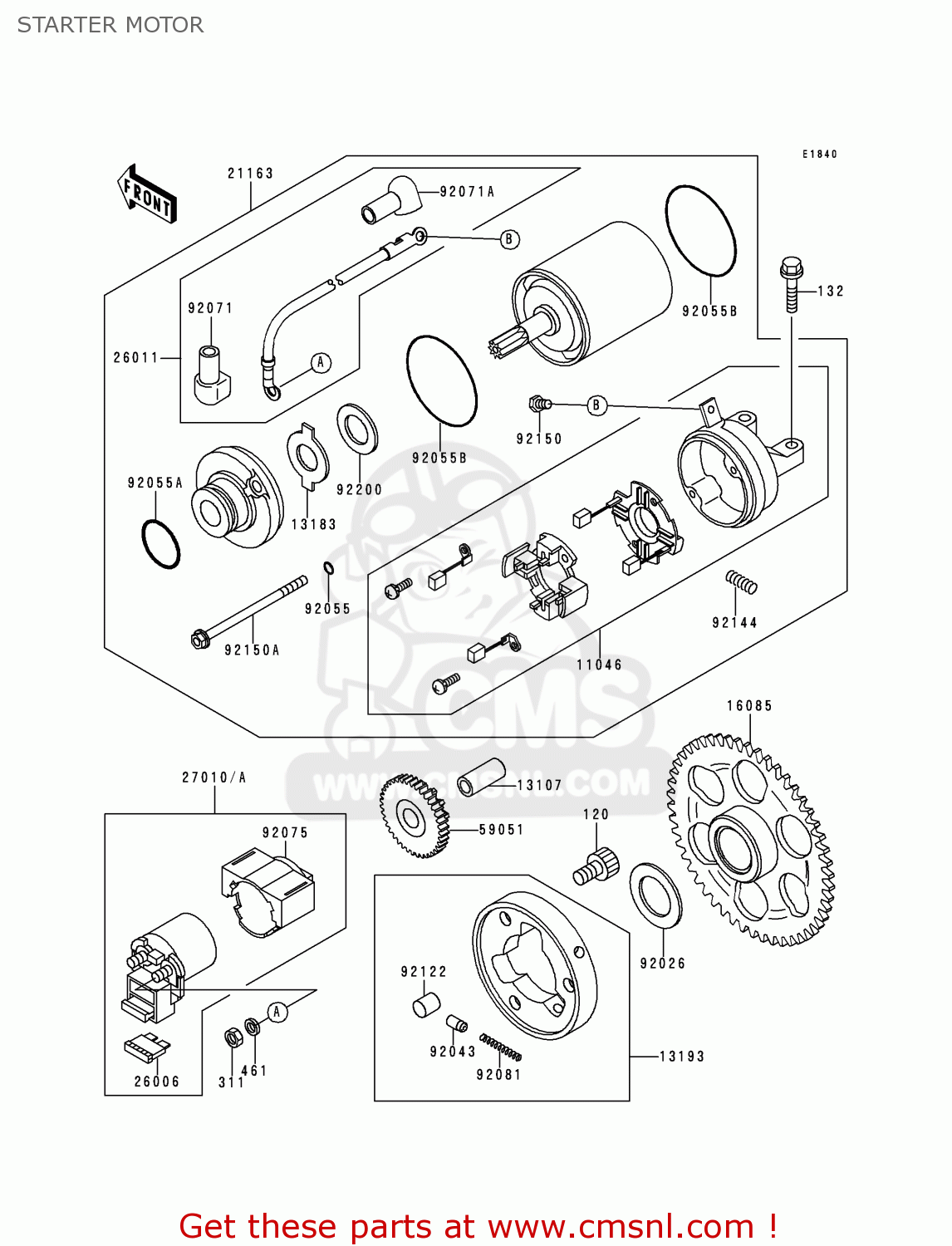

Starter motor diagram ZX400L4 ZXR400 1994 UNITED KINGDOM FR NL AR FG IT

STARTER MOTOR ZX400L4 ZXR400 1994 UNITED KINGDOM FR NL AR FG IT
STARTER MOTOR ZX400L4 ZXR400 1994 UNITED KINGDOM FR NL AR FG IT
STARTER MOTOR ZX400L4 ZXR400 1994 UNITED KINGDOM FR NL AR FG IT
prices are in EUR
ref
part #
description
quantity
120
120P0814
ref: 120
BOLT-SOCKET,8X14
120P0814
€ 3.00
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
132J0625
€ 2.50
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
11046
110461794
ref: 11046
BRACKET,STARTER MOTOR
€ 175.00
13107
131071176
ref: 13107
SHAFT,7.8X12X26.5
131071176
€ 6.50
13183
131831460
ref: 13183
PLATE
€ 9.00
13193
131931002
ref: 13193
CLUTCH-ASSY-ONEWAY
131931002
€ 96.00
16085
160851166
ref: 16085
GEAR,ONEWAY CLUTCH,65
160851166
€ 121.00
21163
211631148
ref: 21163
STARTER-ELECTRIC
€ 479.50
26006
260061006
ref: 26006
FUSE,30A-G
260061006
€ 3.00
26011
260111455
ref: 26011
WIRE-LEAD,STARTER MOT
€ 47.50
27010A
270101269
ref: 27010A
SWITCH,MAGNETIC
270101269
€ 111.00
59051
590511200
ref: 59051
GEAR-SPUR,IDLE,48T&14
590511200
€ 57.00
92026
920261285
ref: 92026
SPACER,25.2X40X1.0
920261285
€ 4.00
92043
92043132
ref: 92043
PIN
92043132
€ 4.00
92055
920551261
ref: 92055
RING-O,4.5MM
920551261
€ 2.00
92055A
920551262
ref: 92055A
RING-O,24.4X3.1
920551262
€ 8.50
92055B
920551455
ref: 92055B
RING-O
€ 9.50
92071
920711121
ref: 92071
GROMMET,TERMINAL
€ 8.00
92071A
920711182
ref: 92071A
GROMMET,TERMINAL
€ 8.00
92075
920751863
ref: 92075
DAMPER,MAGNETIC SWITC
920751863
€ 14.00
92081
92081159
ref: 92081
SPRING, COIL
92081159
€ 2.50
92122
92122006
ref: 92122
ROLLER
92122006
€ 4.00
92144
921441423
ref: 92144
SPRING,BRUSH
921441423
€ 3.00
92150
921501305
ref: 92150
BOLT
€ 3.00
92150A
921501326
ref: 92150A
BOLT
€ 12.50
92200
922001019
ref: 92200
WASHER
922001019
€ 5.00
