Genuine ZX Kawasaki Parts delivered quickly!


FUEL TANK

ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA

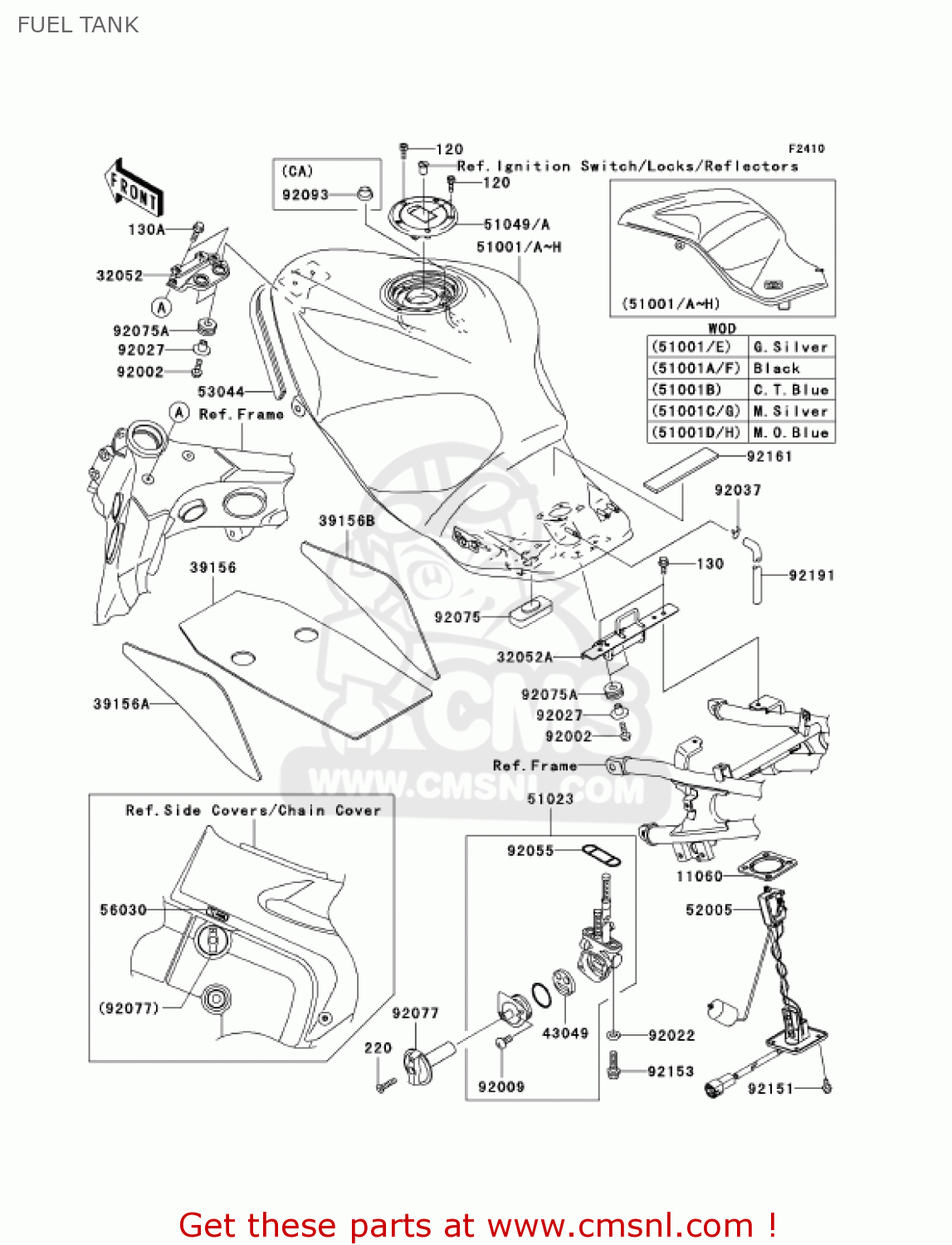

Fuel tank diagram ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA

FUEL TANK ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA
FUEL TANK ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA
FUEL TANK ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11060
110601952
ref: 11060
GASKET,FUEL GAUGE (NAS)
110601952
€ 14.50
32052
320521559
ref: 32052
BRACKET-TANK,FR
€ 19.00
32052A
320521560
ref: 32052A
BRACKET-TANK,RR
€ 19.50
39156
391561709
ref: 39156
PAD,FUEL TANK,CNT
391561709
€ 38.50
39156A
391561710
ref: 39156A
PAD,FUEL TANK,LH
391561710
€ 18.00
39156B
391561711
ref: 39156B
PAD,FUEL TANK,RH
391561711
€ 18.00
43049
430491099
ref: 43049
PACKING,TAP VALVE (NAS)
430491099
€ 6.00
51001B
510011672235
ref: 51001B
[CN]
TANK-COMP-FUEL,C.T.BL
€ 1,328.00
51001C
510011672473
ref: 51001C
[CN,US
TANK-COMP-FUEL,M.SILV
€ 1,328.00
51001G
510011673473
ref: 51001G
[CA]
TANK-COMP-FUEL,M.SILV
€ 732.50
51023
510231368
ref: 51023
TAP-ASSY,FUEL
510231368
€ 100.00
51049A
510491127
ref: 51049A
CAP-TANK,FUEL
510491127
€ 87.00
52005
520051155
ref: 52005
GAUGE,FUEL
520051155
€ 161.00
53044
530441329
ref: 53044
TRIM,L=600
€ 17.00
56030
560301281
ref: 56030
LABEL,FUEL TAP KNOB
€ 4.50
92002
920021237
ref: 92002
BOLT,6X20
920021237
€ 2.50
92009
920091386
ref: 92009
SCREW,3X8
€ 2.00
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
92022183
€ 2.50
92027
92027251
ref: 92027
COLLAR,L=13.1
92027251
€ 1.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
920551112
ref: 92055
RING-/,FUEL TAP PACKI
920551112
€ 3.00
92075
920751114
ref: 92075
DAMPER,FUEL TANK,RR
920751114
€ 11.00
92075A
920751690
ref: 92075A
DAMPER,10X24X12
920751690
€ 3.00
92077
920771131
ref: 92077
KNOB,FUEL TAP
920771131
€ 13.50
120
120S0516
ref: 120
BOLT-SOCKET
120S0516
€ 0.50
130
130J0616
ref: 130
BOLT-FLANGED,6X16
130J0616
€ 1.50
130A
130J0620
ref: 130A
BOLT-FLANGED,6X20
130J0620
€ 2.50
220
220F0416
ref: 220
SCREW-PAN-CROSS
220F0416
€ 1.00
92093
920931030
ref: 92093
[CA]
OIL SEAL,FUEL TANK CA
920931030
€ 5.00
92151
921511599
ref: 92151
BOLT,FLANGED,5X12
921511599
€ 1.50
92153
921530514
ref: 92153
BOLT,FLANGED,6X25
921530514
€ 1.50
92161
921611299
ref: 92161
DAMPER,FUEL TANK
921611299
€ 8.00
92191
921911272
ref: 92191
TUBE,DRAIN
€ 16.00
