ENGINE COVER(S)

ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA

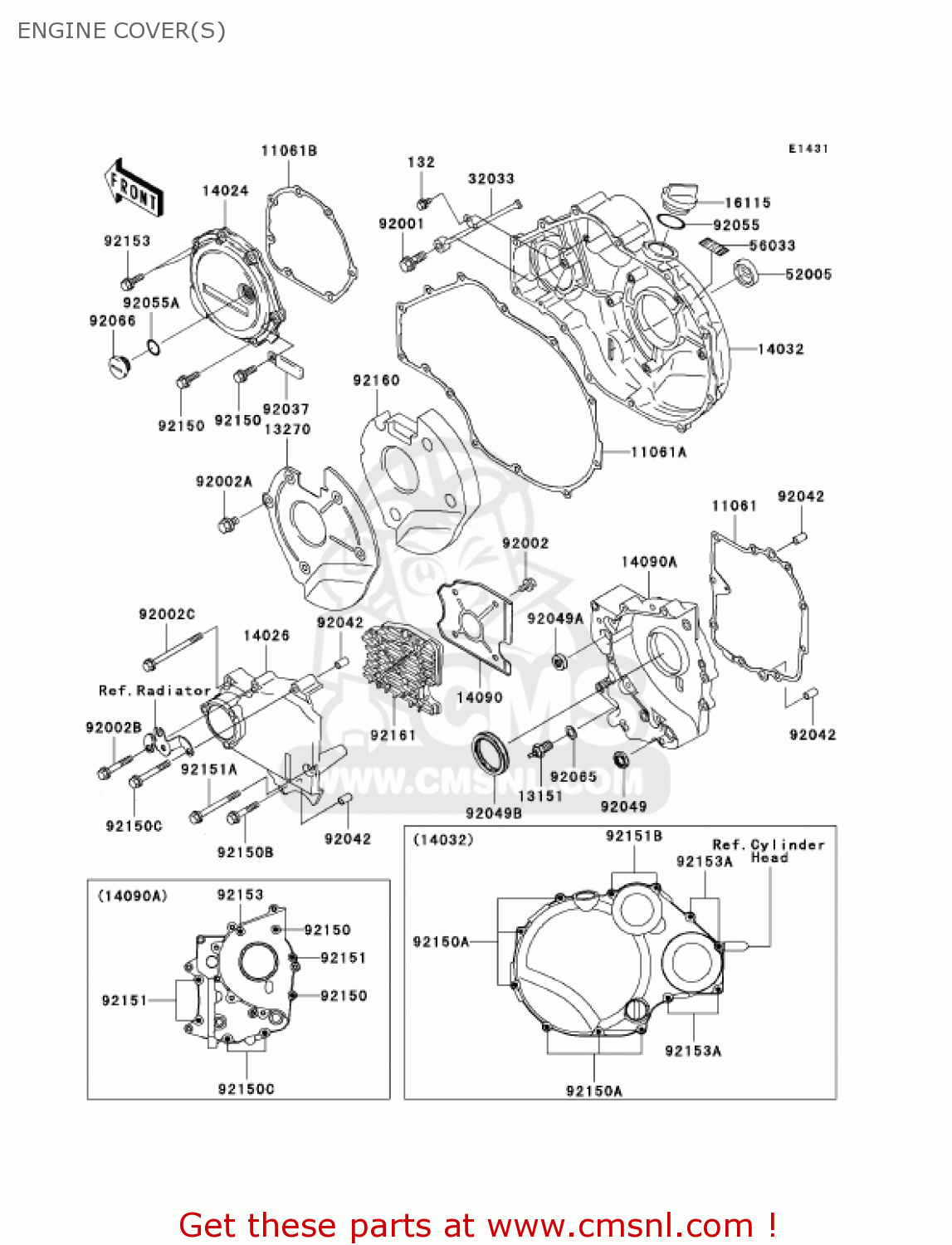

Engine cover(s) diagram ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA

ENGINE COVER(S) ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA
ENGINE COVER(S) ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA
ENGINE COVER(S) ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132H0510
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
11061
110611093
ref: 11061
GASKET,TRANSMISSION C (NAS)
110611093
€ 12.00
11061A
110611154
ref: 11061A
GASKET,CLUTCH COVER (NAS)
110611154
€ 9.50
11061B
110611155
ref: 11061B
GASKET,PULSING COVER (NAS)
110611155
€ 6.50
13151
131511080
ref: 13151
SWITCH-COMP,NEUTRAL
131511080
€ 9.00
13270
132701765
ref: 13270
PLATE
€ 9.00
14024
140241721
ref: 14024
COVER,PULSING
140241721
€ 111.50
14026
140261213
ref: 14026
COVER-CHAIN
€ 130.50
14032
140321530
ref: 14032
COVER-CLUTCH
140321530
€ 237.00
14090
140901527
ref: 14090
COVER,SOUND ARRESTER
140901527
€ 20.50
14090A
140901877
ref: 14090A
COVER,TRANSMISSION
140901877
€ 169.00
16115
161151009
ref: 16115
CAP-OIL FILLER
161151009
€ 10.00
32033
320331204
ref: 32033
PIPE,CLUTCH COVER
320331204
€ 20.50
52005
520051057
ref: 52005
GAUGE,OIL LEVEL
520051057
€ 17.50
56033
560331292
ref: 56033
LABEL-MANUAL,OIL CAPA
€ 3.50
92001
920011855
ref: 92001
BOLT,BANJO,8X20
920011855
€ 5.50
92002
920021449
ref: 92002
BOLT,6X10
920021449
€ 2.50
92002A
920021541
ref: 92002A
BOLT,6X10
920021541
€ 4.00
92002B
920021566
ref: 92002B
BOLT,6X40
920021566
€ 3.00
92002C
920021568
ref: 92002C
BOLT,6X80
920021568
€ 4.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92049
920491564
ref: 92049
SEAL-OIL
920491564
€ 6.00
92049A
920491566
ref: 92049A
SEAL-OIL
920491566
€ 4.50
92049B
920491567
ref: 92049B
SEAL-OIL
920491567
€ 11.50
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92055A
920551146
ref: 92055A
RING-O
920551146
€ 5.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
92066
920661163
ref: 92066
PLUG,COVER,LH
920661163
€ 10.00
92150
921501010
ref: 92150
BOLT,6X20
921501010
€ 2.00
92150A
921501779
ref: 92150A
BOLT,6X25
921501779
€ 2.50
92150B
921501967
ref: 92150B
BOLT
921501967
€ 2.50
92150C
921501968
ref: 92150C
BOLT
921501968
€ 3.00
92151
921511190
ref: 92151
BOLT,6X25
921511190
€ 2.00
92151A
921511191
ref: 92151A
BOLT,6X65
921511191
€ 2.00
92151B
921511341
ref: 92151B
BOLT,6X55
€ 1.50
92153
921531114
ref: 92153
BOLT,M6X20
€ 1.50
92153A
921531190
ref: 92153A
BOLT,M6X40
921531190
€ 1.50
92160
921601812
ref: 92160
DAMPER
€ 47.00
92161
921611304
ref: 92161
DAMPER,SOUND ARRESTER
€ 16.50
