CHASSIS ELECTRICAL EQUIPMENT

ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA

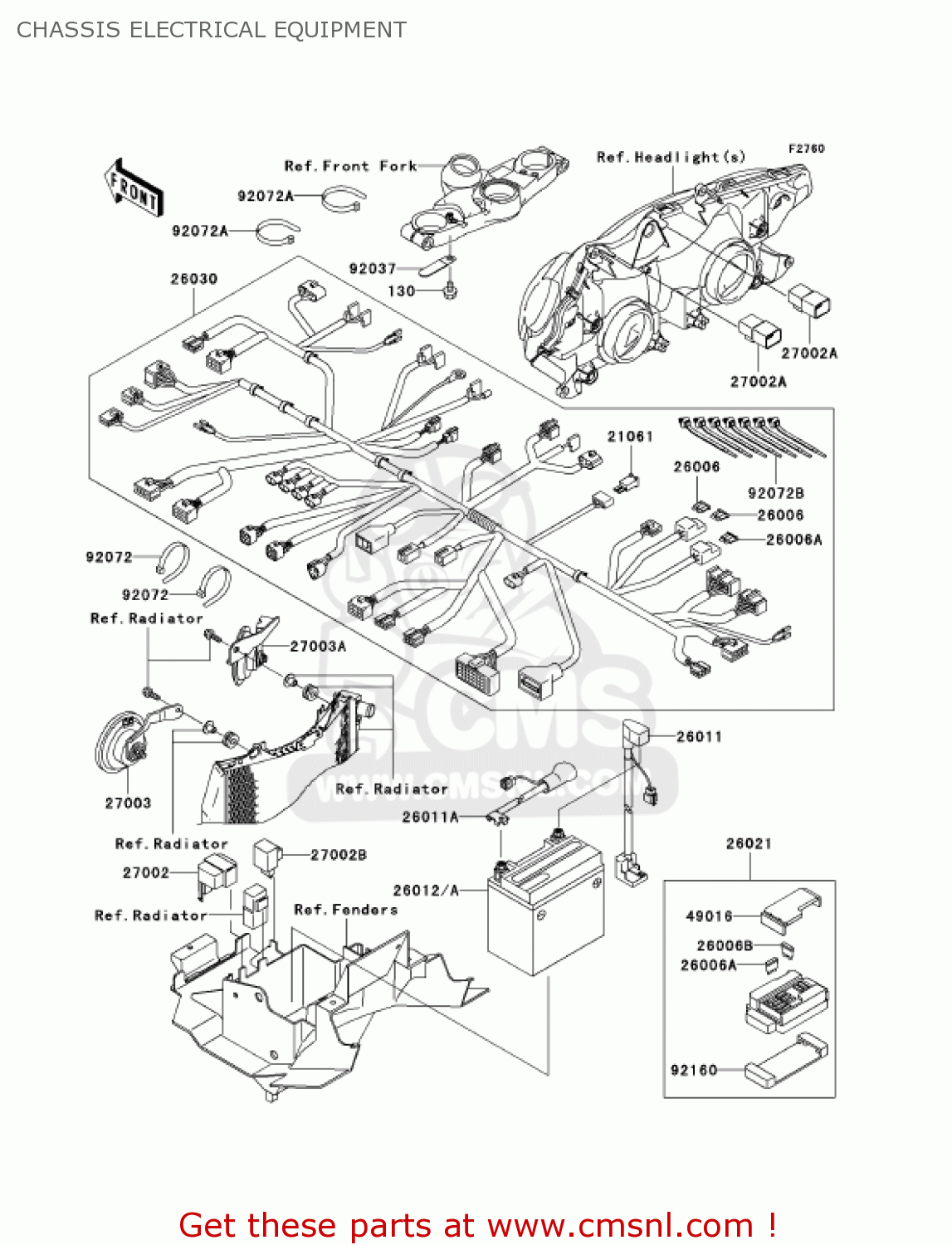

Chassis electrical equipment diagram ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0610
ref: 130
BOLT-FLANGED
130J0610
€ 1.50
21061
210611059
ref: 21061
RECTIFIER
210611059
€ 29.50
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26006B
260061075
ref: 26006B
FUSE,15A
€ 3.50
26011
260111822
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 41.50
26011A
260111823
ref: 26011A
WIRE-LEAD,BATTERY(-)
€ 27.00
26012
260121334
ref: 26012
BATTERY,YTX14-BS,12V
€ 124.50
26021
260211108
ref: 26021
JUNCTION BOX
€ 149.00
26030
260301946
ref: 26030
HARNESS,MAIN
€ 377.50
27002
270021065
ref: 27002
RELAY-ASSY
270021065
€ 31.50
27002A
270021086
ref: 27002A
RELAY-ASSY
270021086
€ 23.00
27002B
270021101
ref: 27002B
RELAY-ASSY,TURN SIGNA
270021101
€ 49.50
27003
270031320
ref: 27003
HORN,LH
270031320
€ 58.50
27003A
270031363
ref: 27003A
HORN,RH
270031363
€ 55.50
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
92037
920371539
ref: 92037
CLAMP,L=45
920371539
€ 3.00
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721237
ref: 92072A
BAND,L=250
920721237
€ 2.00
92072B
920721414
ref: 92072B
BAND
920721414
€ 2.00
92160
921601650
ref: 92160
DAMPER,JUNCTION BOX
921601650
€ 9.50
