Genuine ZX Kawasaki Parts delivered quickly!


CARBURETOR

ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA

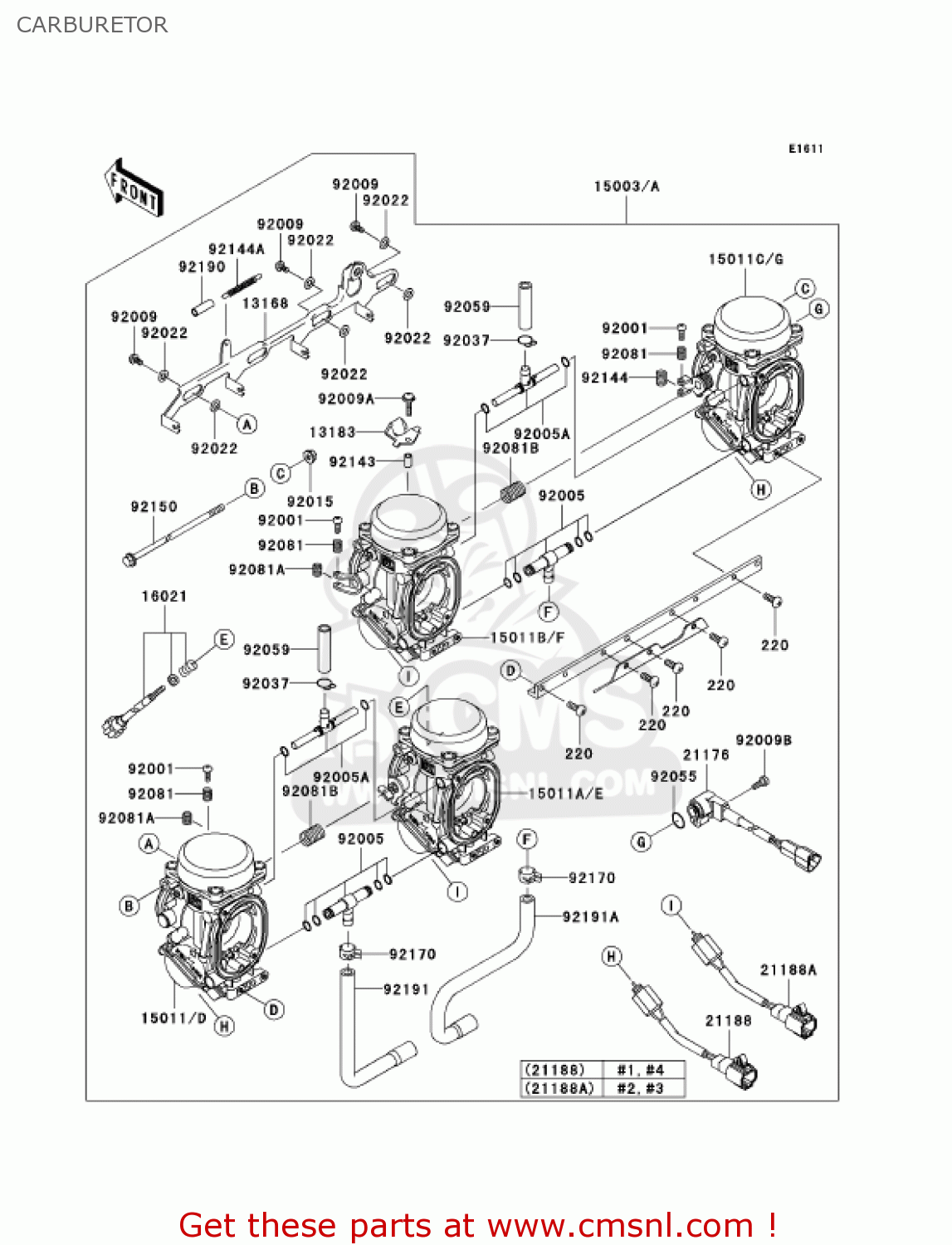

Carburetor diagram ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA

CARBURETOR ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA
CARBURETOR ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA
CARBURETOR ZX1200C3 ZZR1200 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13168
131681405
ref: 13168
LEVER,STARTER
€ 87.00
13183
131831592
ref: 13183
PLATE,STARTER CABLE
131831592
€ 26.00
15003
150031710
ref: 15003
[CN,US
CARBURETOR-ASSY
€ 1,109.50
15003A
150031711
ref: 15003A
[CA]
CARBURETOR-ASSY
€ 1,109.50
15011
150111959
ref: 15011
[CA]
CARBURETOR,LH,OUTSIDE
€ 466.00
15011A
150111960
ref: 15011A
[CA]
CARBURETOR,LH,INSIDE
€ 466.00
15011B
150111961
ref: 15011B
[CA]
CARBURETOR,RH,INSIDE
€ 466.00
15011C
150111962
ref: 15011C
[CA]
CARBURETOR,RH,OUTSIDE
€ 466.00
15011D
150111979
ref: 15011D
[CN,US
CARBURETOR,LH,OUTSIDE
€ 466.00
15011E
150111980
ref: 15011E
[CN,US
CARBURETOR,LH,INSIDE
€ 466.00
15011F
150111981
ref: 15011F
[CN,US
CARBURETOR,RH,INSIDE
€ 466.00
15011G
150111982
ref: 15011G
[CN,US
CARBURETOR,RH,OUTSIDE
€ 466.00
16021
160211240
ref: 16021
SCREW-THROTTLE STOP
160211240
€ 86.50
21176
211761115
ref: 21176
SENSOR,THROTTLE
€ 200.50
21188
211881006
ref: 21188
SOLENOID,#1&#4
€ 133.00
21188A
211881007
ref: 21188A
SOLENOID,#2&#3
€ 113.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051294
ref: 92005
FITTING
920051294
€ 22.00
92005A
920051338
ref: 92005A
FITTING
920051338
€ 17.00
92009
920091262
ref: 92009
SCREW
920091262
€ 4.00
92009A
920091632
ref: 92009A
SCREW
920091632
€ 4.00
92009B
920091981
ref: 92009B
SCREW,THROTTLE SENSOR
€ 1.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
920151259
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92037
920371531
ref: 92037
CLAMP,TUBE
920371531
€ 3.50
92055
920551671
ref: 92055
RING-O,THROTTLE SENSO
920551671
€ 2.50
92059
920591738
ref: 92059
TUBE,7X11X45
€ 17.00
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92143
921431265
ref: 92143
COLLAR,4X5.2X9.6
921431265
€ 3.00
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
92144
921441451
ref: 92144
SPRING
921441451
€ 7.00
92144A
921441518
ref: 92144A
SPRING,STARTER LEVER
921441518
€ 14.50
92150
921501211
ref: 92150
BOLT,5X305
921501211
€ 17.50
92170
921701051
ref: 92170
CLAMP,TUBE
921701051
€ 5.50
92190
921901157
ref: 92190
TUBE,STARTER SPRING
€ 4.50
92191
921911766
ref: 92191
TUBE,7.3X12.5X230
€ 9.00
92191A
921911767
ref: 92191A
TUBE,7.3X12.5X266
€ 9.50
