GENERATOR

ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA

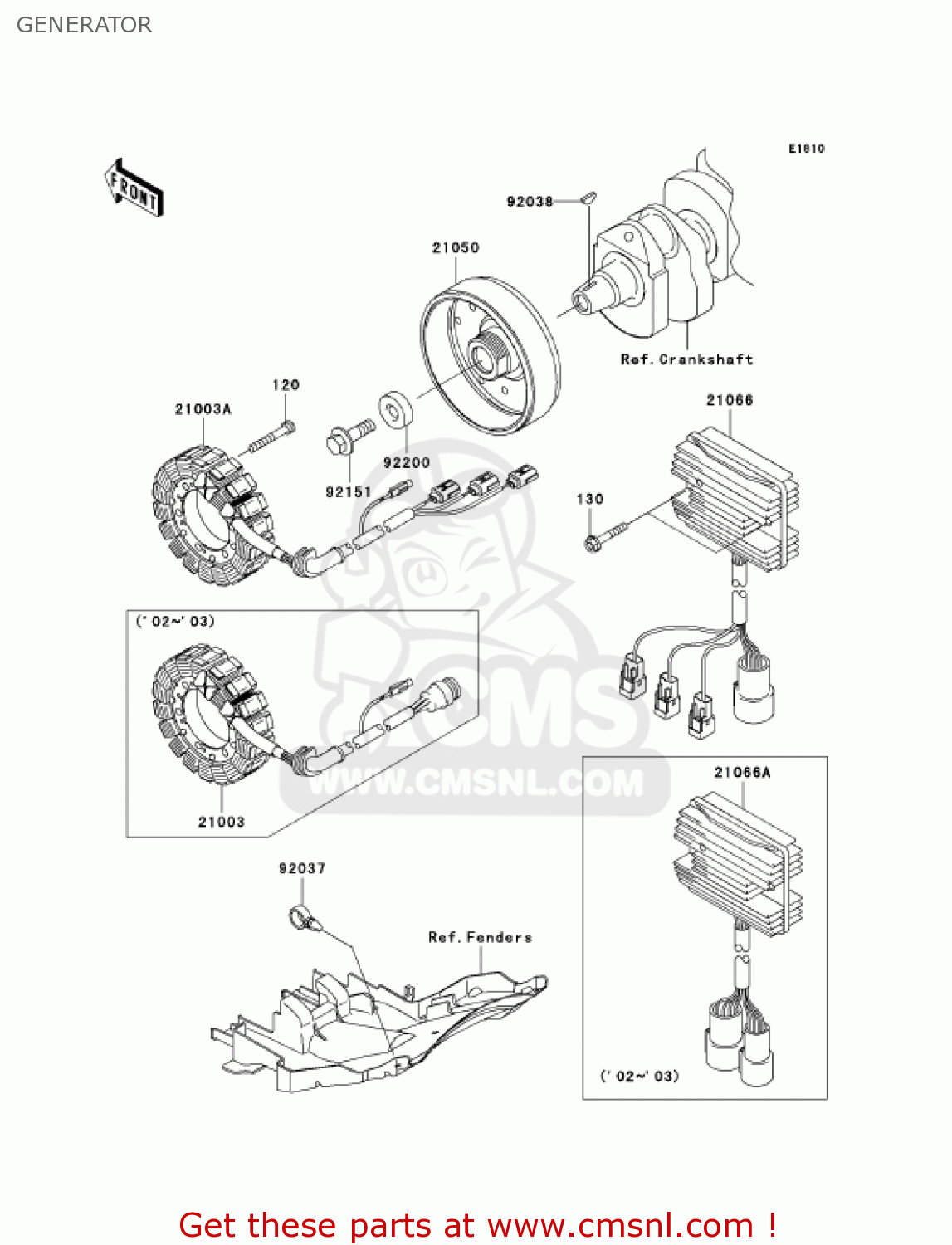

Generator diagram ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA

GENERATOR ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA

GENERATOR ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120Z0640
ref: 120

BOLT-SOCKET

€ 3.00

130

130L0635
ref: 130

BOLT-FLANGED

€ 2.50

21003A

210030017
ref: 21003A

STATOR

€ 655.00

21050

210501195
ref: 21050

FLYWHEEL

€ 397.00

21066

210660007
ref: 21066

REGULATOR-VOLTAGE

€ 198.00

92037

920371827
ref: 92037

CLAMP,HOSE

€ 5.00

92038

920381060
ref: 92038

KEY

€ 5.00

92151

921511230
ref: 92151

BOLT,FLYWHEEL

€ 4.50

92200

922001241
ref: 92200

WASHER

€ 4.00
