CHASSIS ELECTRICAL EQUIPMENT

ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA

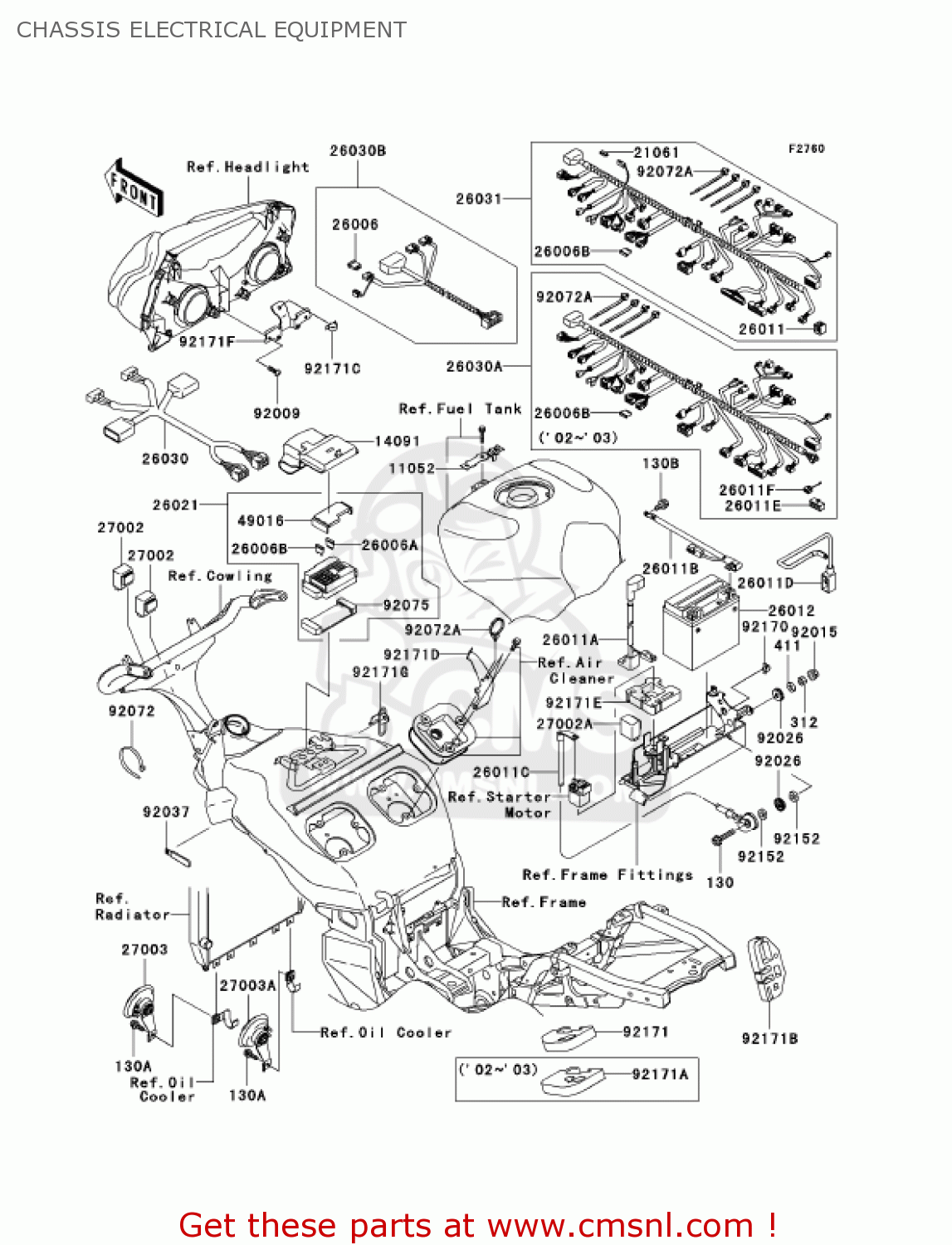

Chassis electrical equipment diagram ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11052
110521830
ref: 11052
BRACKET,FUSE
€ 10.50
14091
140911499
ref: 14091
COVER,JUNCTION BOX
€ 20.00
21061
210610001
ref: 21061
RECTIFIER
210610001
€ 24.00
26006
260061006
ref: 26006
FUSE,30A-G
260061006
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26006B
260061075
ref: 26006B
FUSE,15A
€ 3.50
26011
260110037
ref: 26011
WIRE-LEAD
€ 9.50
26011A
260111730
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 33.50
26011B
260111731
ref: 26011B
WIRE-LEAD,BATTERY(-)
€ 23.00
26011C
260111762
ref: 26011C
WIRE-LEAD,SUB
€ 36.00
26011D
260111772
ref: 26011D
WIRE-LEAD(+) JUMP STA
260111772
€ 43.00
26012
260121334
ref: 26012
BATTERY,YTX14-BS,12V
€ 124.50
26021
260211106
ref: 26021
JUNCTION BOX
€ 151.50
26030
260301779
ref: 26030
HARNESS,FR
260301779
€ 79.50
26030B
260301959
ref: 26030B
HARNESS,SUB
€ 102.50
26031
260310133
ref: 26031
HARNESS,MAIN
€ 415.50
27002
270021086
ref: 27002
RELAY-ASSY
270021086
€ 23.00
27002A
270021101
ref: 27002A
RELAY-ASSY,TURN SIGNA
270021101
€ 49.50
27003
270031418
ref: 27003
HORN,LH
€ 64.00
27003A
270031419
ref: 27003A
HORN,RH
€ 63.50
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
92009
920091197
ref: 92009
SCREW
920091197
€ 2.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
920151367
€ 0.50
92026
920261575
ref: 92026
SPACER
€ 3.50
92037
920371636
ref: 92037
CLAMP,HARNESS,L=100
€ 5.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721414
ref: 92072A
BAND
920721414
€ 2.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
92152
921521252
ref: 92152
COLLAR
€ 2.50
92170
921701494
ref: 92170
CLAMP,HARNESS
€ 3.50
92171
921710375
ref: 92171
CLAMP,HARNESS
€ 7.50
92171B
921711256
ref: 92171B
CLAMP,HARNESS
€ 4.50
92171C
921711269
ref: 92171C
CLAMP,HARNESS
921711269
€ 2.50
92171D
921711371
ref: 92171D
CLAMP,HARNESS
€ 5.50
92171E
921711459
ref: 92171E
CLAMP,HARNESS
€ 8.00
92171F
921711481
ref: 92171F
CLAMP,HEAD LAMP COUPL
921711481
€ 13.50
130
130H0630
ref: 130
BOLT-FLANGED,6X30
€ 0.50
130A
130J0612
ref: 130A
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130B
130V0610
ref: 130B
BOLT-FLANGED,6X10
130V0610
€ 0.50
312
312H0600
ref: 312
NUT-HEX,6 MM
€ 1.00
411
411E0600
ref: 411
W-PLAIN-S
411E0600
€ 0.50
92171G
921711486
ref: 92171G
CLAMP,HARNESS&CABLE
€ 13.50
