CRANKCASE

ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA

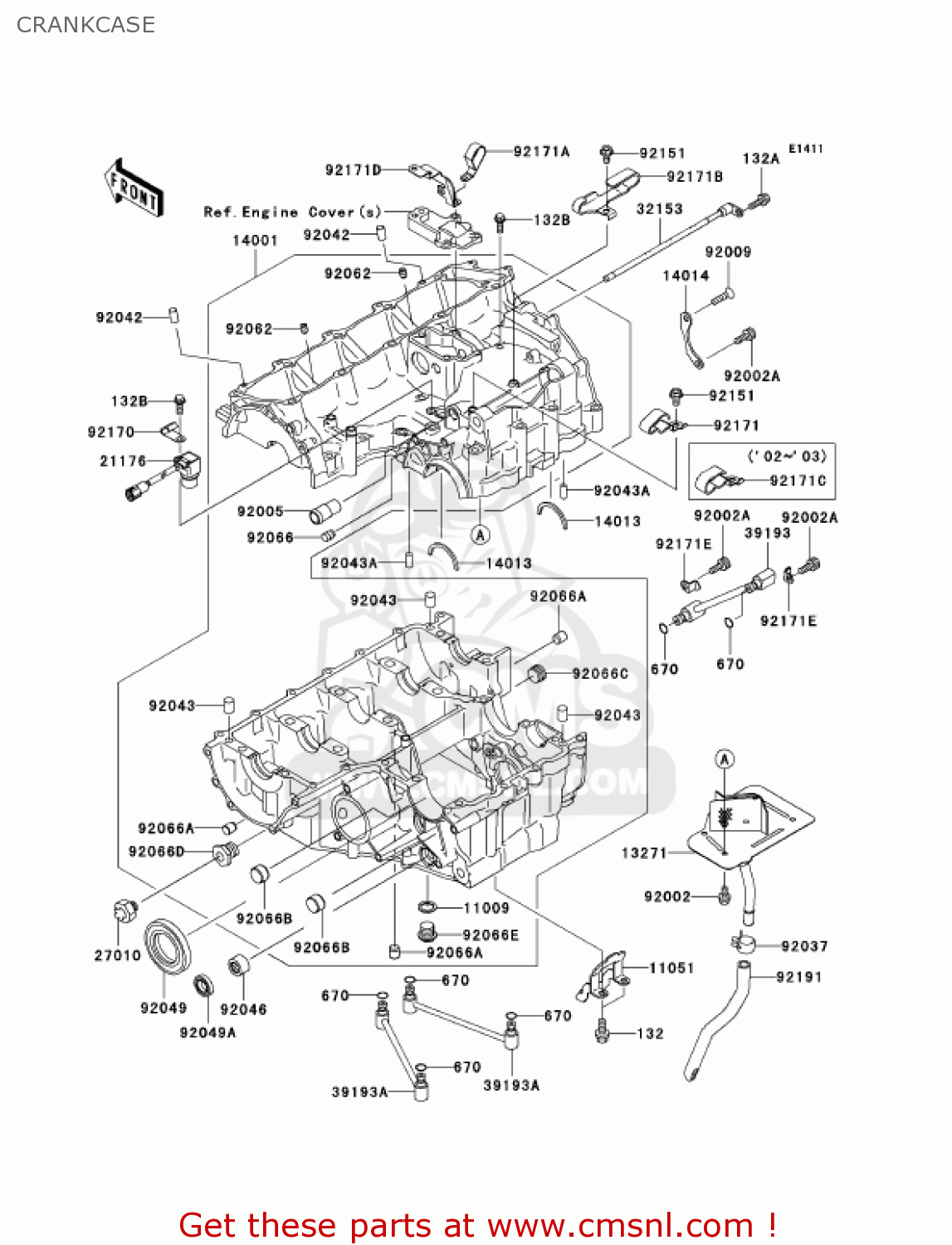

Crankcase diagram ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA

CRANKCASE ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA
CRANKCASE ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA
CRANKCASE ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132H0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132Y0614
ref: 132A
BOLT-FLANGED-SMALL
€ 2.00
11009
110091461
ref: 11009
GASKET,14X19.5X1.4 (NAS)
110091461
€ 3.50
11051
110511334
ref: 11051
BRACKET,TUBE
€ 7.50
13271
132711228
ref: 13271
PLATE,BREATHER
€ 64.00
14001
140011295
ref: 14001
SET-CRANKCASE
140011295
€ 2,439.00
14013
140131004
ref: 14013
RING-POSITION,CRANK
140131004
€ 3.00
14014
140141140
ref: 14014
PLATE-POSITION
€ 5.50
21176
211761106
ref: 21176
SENSOR,SPEEDOMETER
€ 136.00
27010
270101313
ref: 27010
SWITCH,OIL PRESSURE
270101313
€ 28.00
32153
321531139
ref: 32153
PIPE,OIL
€ 69.00
39193
391931063
ref: 39193
PIPE-OIL,RH
391931063
€ 26.00
39193A
391931064
ref: 39193A
PIPE-OIL,OIL PAN
391931064
€ 26.00
92002
920021449
ref: 92002
BOLT,6X10
920021449
€ 2.50
92002A
920021778
ref: 92002A
BOLT,SOCKET,6X16
920021778
€ 3.00
92005
920051238
ref: 92005
FITTING,BREATHER
920051238
€ 7.50
92009
920091360
ref: 92009
SCREW,6X16
920091360
€ 2.50
92037
920371678
ref: 92037
CLAMP
€ 7.00
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92043
920431506
ref: 92043
PIN
920431506
€ 2.00
92043A
920431690
ref: 92043A
PIN,6X16
920431690
€ 3.50
92046
92046037
ref: 92046
BEARING-NEEDLE,7E-HK1
92046037
€ 17.00
92049
920491510
ref: 92049
SEAL-OIL,SD40X62X8
920491510
€ 14.50
92049A
920491520
ref: 92049A
SEAL-OIL,TC14245
920491520
€ 9.50
92062
920621086
ref: 92062
NOZZLE
€ 2.50
92066
92066042
ref: 92066
PLUG
€ 3.00
92066A
920661012
ref: 92066A
PLUG,OIL LINE,7.2X8
920661012
€ 4.00
92066B
920661110
ref: 92066B
PLUG
920661110
€ 4.00
92066C
920661252
ref: 92066C
PLUG
920661252
€ 4.00
92066D
920661513
ref: 92066D
PLUG
€ 9.00
92066E
920662196
ref: 92066E
PLUG,DRAIN
920662196
€ 3.00
92151
921511239
ref: 92151
BOLT,6X12
€ 1.50
92170
921701900
ref: 92170
CLAMP
€ 4.00
92171
921710190
ref: 92171
CLAMP
€ 9.00
92171A
921711099
ref: 92171A
CLAMP
€ 4.00
92171B
921711133
ref: 92171B
CLAMP
921711133
€ 15.50
92171D
921711217
ref: 92171D
CLAMP
€ 11.50
92171E
921711439
ref: 92171E
CLAMP,OIL PIPE,RH
€ 1.50
92191
921911602
ref: 92191
TUBE,BREATHER
€ 30.00
132B
132Y0616
ref: 132B
BOLT-FLANGED-SMALL
132Y0616
€ 2.50
670
670D1507
ref: 670
O RING,7MM
670D1507
€ 1.00
