BRAKE PEDAL/TORQUE LINK

ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA

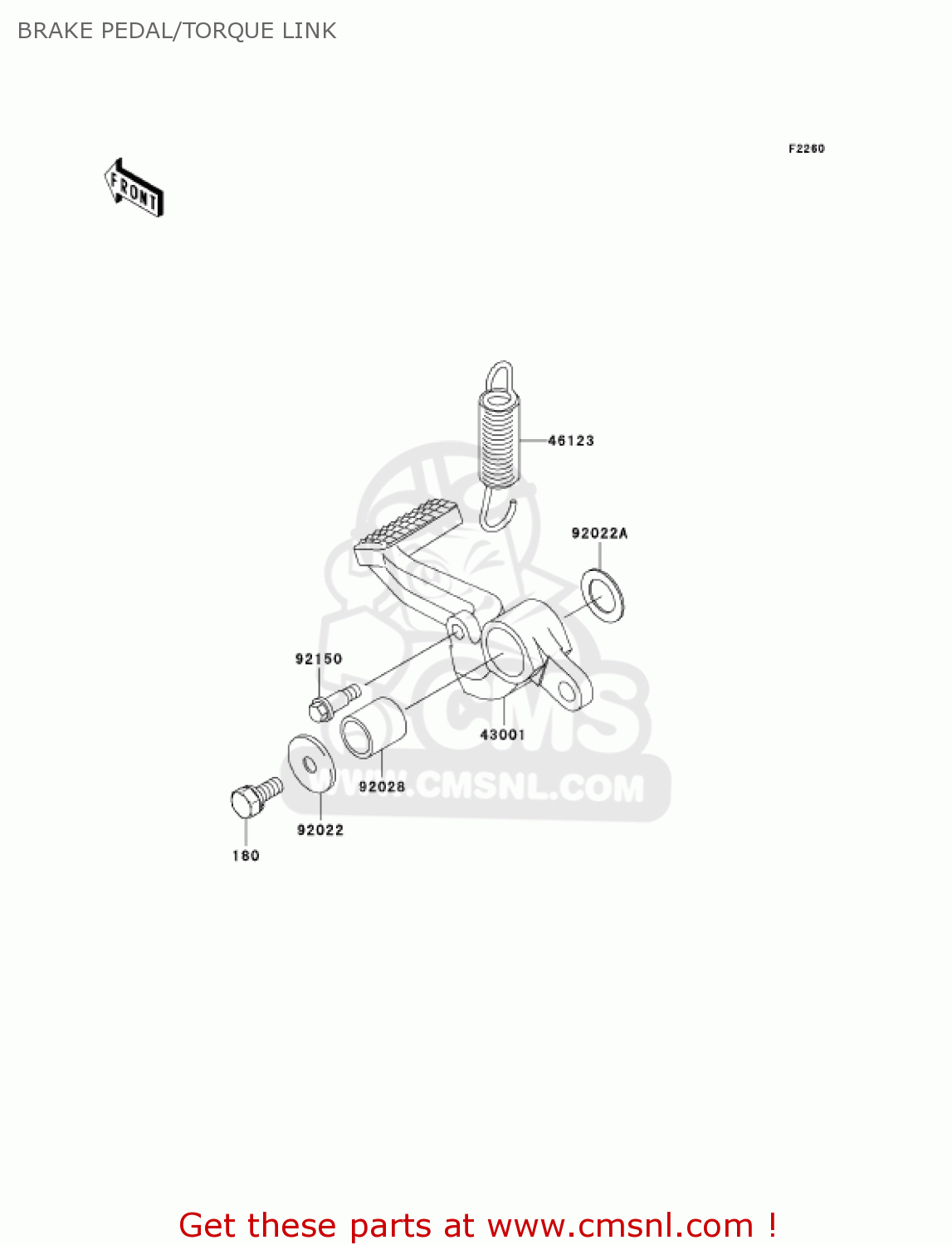

Brake pedal/torque link diagram ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA

BRAKE PEDAL/TORQUE LINK ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA

BRAKE PEDAL/TORQUE LINK ZX1200B3 ZX12R 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

180

180H0614
ref: 180

BOLT-UPSET-WS

€ 1.00

43001

430011421
ref: 43001

LEVER-BRAKE,PEDAL

€ 48.00

46123

461231058
ref: 46123

SPRING-COMP,BRAKE PED

€ 5.50

92022

920221282
ref: 92022

WASHER,7X28X1.6

€ 3.00

92022A

92022326
ref: 92022A

WASHER,15.3X24X1

€ 2.50

92028

920281282
ref: 92028

BUSHING,BRAKE PEDAL

€ 9.50

92150

921501113
ref: 92150

BOLT,CENTER STAND SPR

€ 4.50
