OIL COOLER

ZX1100E1 GPZ1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

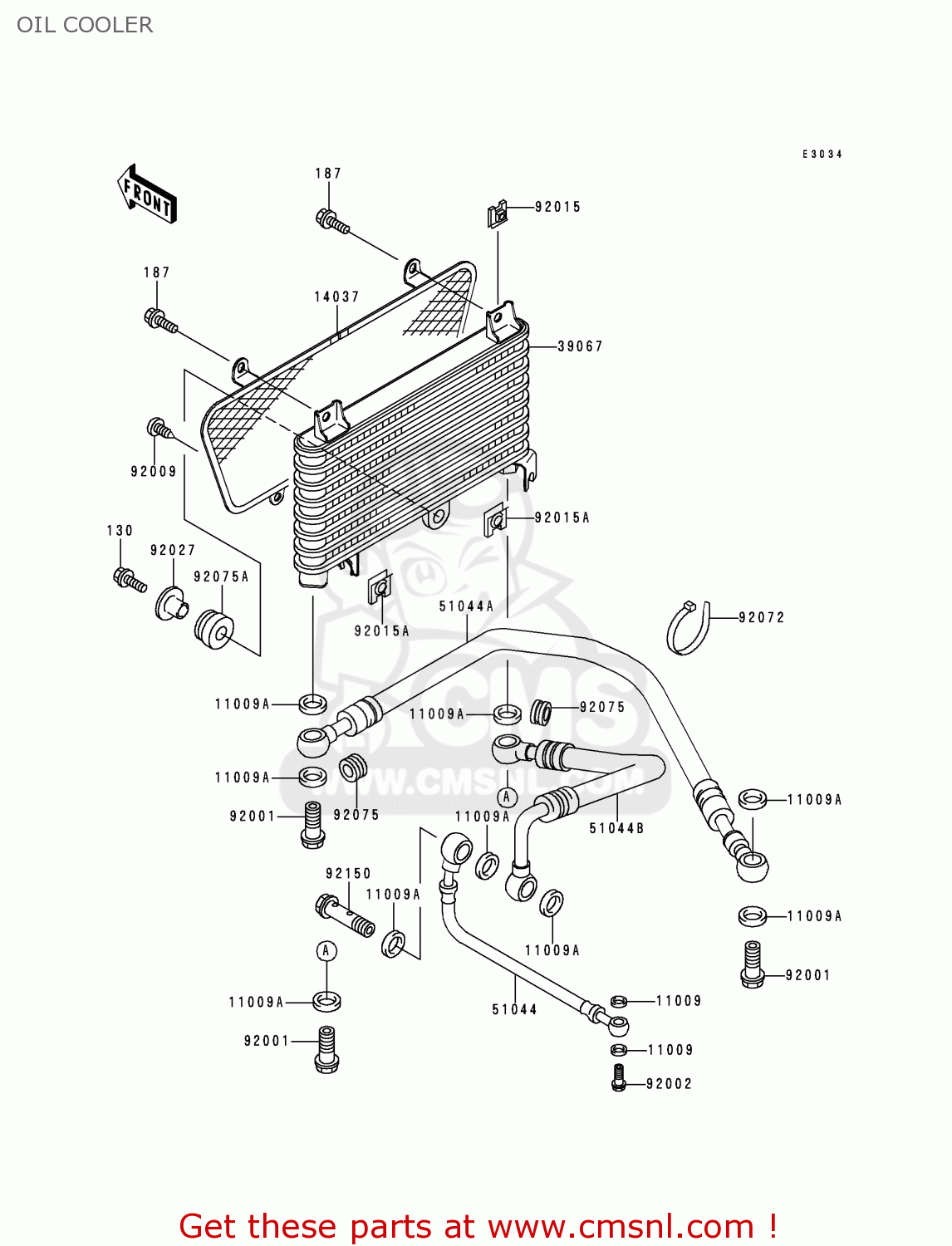

Oil cooler diagram ZX1100E1 GPZ1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130J0625
ref: 130

BOLT-FLANGED,6X25

€ 2.00

187

187G0616
ref: 187

BOLT-UPSET-WSP

€ 1.50

11009

110091344
ref: 11009

GASKET,OIL PIPE,8.2X1 (NAS)

€ 1.50

11009A

110091461
ref: 11009A

GASKET,14X19.5X1.4 (NAS)

€ 3.50

14037

140371199
ref: 14037

SCREEN,OIL COOLER

€ 39.50

39067

390671063
ref: 39067

COOLER-OIL

€ 414.50

51044

510441130
ref: 51044

TUBE-ASSY,OIL

€ 155.00

51044A

510441177
ref: 51044A

TUBE-ASSY

€ 155.00

51044B

510441178
ref: 51044B

TUBE-ASSY

€ 213.00

92001

920011930
ref: 92001

BOLT,14X28.5

€ 6.50

92002

920021429
ref: 92002

BOLT,8X20

€ 7.00

92009

920091261
ref: 92009

SCREW,TAPPING,6MM

€ 2.00

92015

920151487
ref: 92015

NUT

€ 3.00

92015A

920151758
ref: 92015A

NUT

€ 4.50

92027

920271651
ref: 92027

COLLAR

€ 2.50

92072

920721237
ref: 92072

BAND,L=250

€ 2.00

92075

920751942
ref: 92075

DAMPER,OIL COOLER

€ 3.50

92075A

92075277
ref: 92075A

DAMPER

€ 1.00

92150

921501324
ref: 92150

BOLT

€ 15.00

OIL COOLER

all assemblies
