GENERATOR

ZX1100E1 GPZ1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

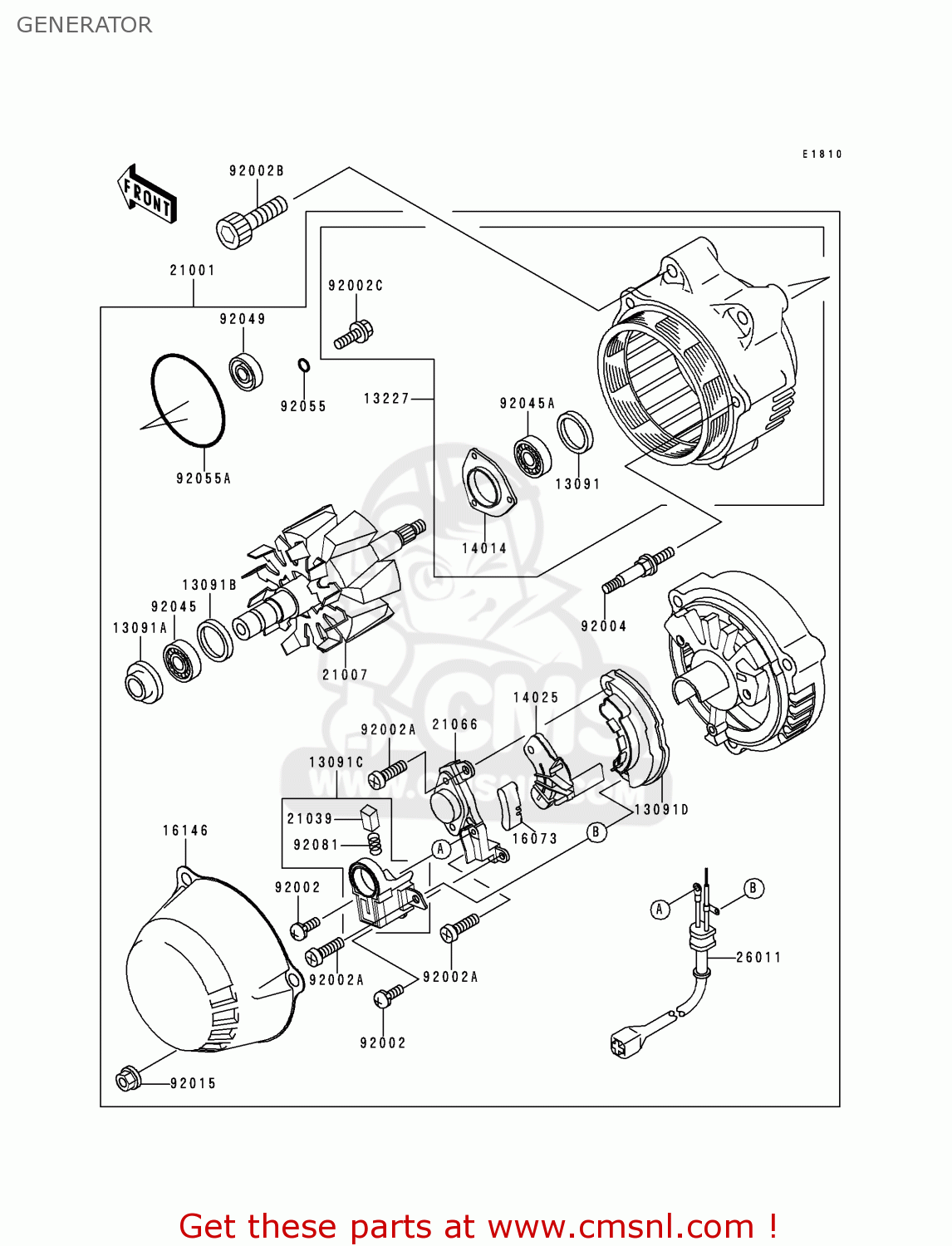

Generator diagram ZX1100E1 GPZ1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

GENERATOR ZX1100E1 GPZ1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
GENERATOR ZX1100E1 GPZ1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
GENERATOR ZX1100E1 GPZ1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
13091
130911326
ref: 13091
HOLDER,BEARING
130911326
€ 10.00
13091A
130911327
ref: 13091A
HOLDER,COVER
130911327
€ 13.00
13091B
130911328
ref: 13091B
HOLDER,BEARING
130911328
€ 10.00
13091C
130911465
ref: 13091C
HOLDER,BRUSH
130911465
€ 85.50
13091D
130911466
ref: 13091D
RECTIFIER
130911466
€ 432.50
13227
132271079
ref: 13227
HOUSING,GENERATOR
€ 683.50
14014
140141065
ref: 14014
PLATE-POSITION
140141065
€ 15.00
14025
140251942
ref: 14025
COVER,RECTIFIER
140251942
€ 7.50
16073
160731062
ref: 16073
INSULATOR
€ 14.50
16146
161461163
ref: 16146
COVER-ASSY,GENERATOR
€ 176.50
21001
210011134
ref: 21001
GENERATOR
€ 1,308.50
21007
210071196
ref: 21007
ROTOR,GENERATOR
€ 515.00
21039
210391052
ref: 21039
BRUSH,CARBON
210391052
€ 19.00
21066
210661076
ref: 21066
REGULATOR-VOLTAGE
210661076
€ 313.00
26011
260111619
ref: 26011
WIRE-LEAD,GENERATOR
€ 69.00
92002
920021379
ref: 92002
BOLT
€ 3.00
92002A
920021380
ref: 92002A
BOLT
920021380
€ 3.00
92002B
920021716
ref: 92002B
BOLT,SOCKET,8X45
920021716
€ 5.50
92002C
920021856
ref: 92002C
BOLT
€ 10.50
92004
920041196
ref: 92004
STUD
€ 17.50
92015
920151800
ref: 92015
NUT
€ 2.00
92045
920451133
ref: 92045
BEARING-BALL,#6002NC
920451133
€ 56.50
92045A
920451350
ref: 92045A
BEARING-BALL,#6002
€ 44.50
92049
920491467
ref: 92049
SEAL-OIL
€ 20.50
92055
920551264
ref: 92055
RING-O
920551264
€ 3.00
92055A
920551366
ref: 92055A
RING-O,70.6X2.4
920551366
€ 19.00
92081
920811759
ref: 92081
SPRING,BRUSH
920811759
€ 5.00
