Genuine ZX Kawasaki Parts delivered quickly!


IGNITION SWITCH

ZX1100E1 GPZ1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

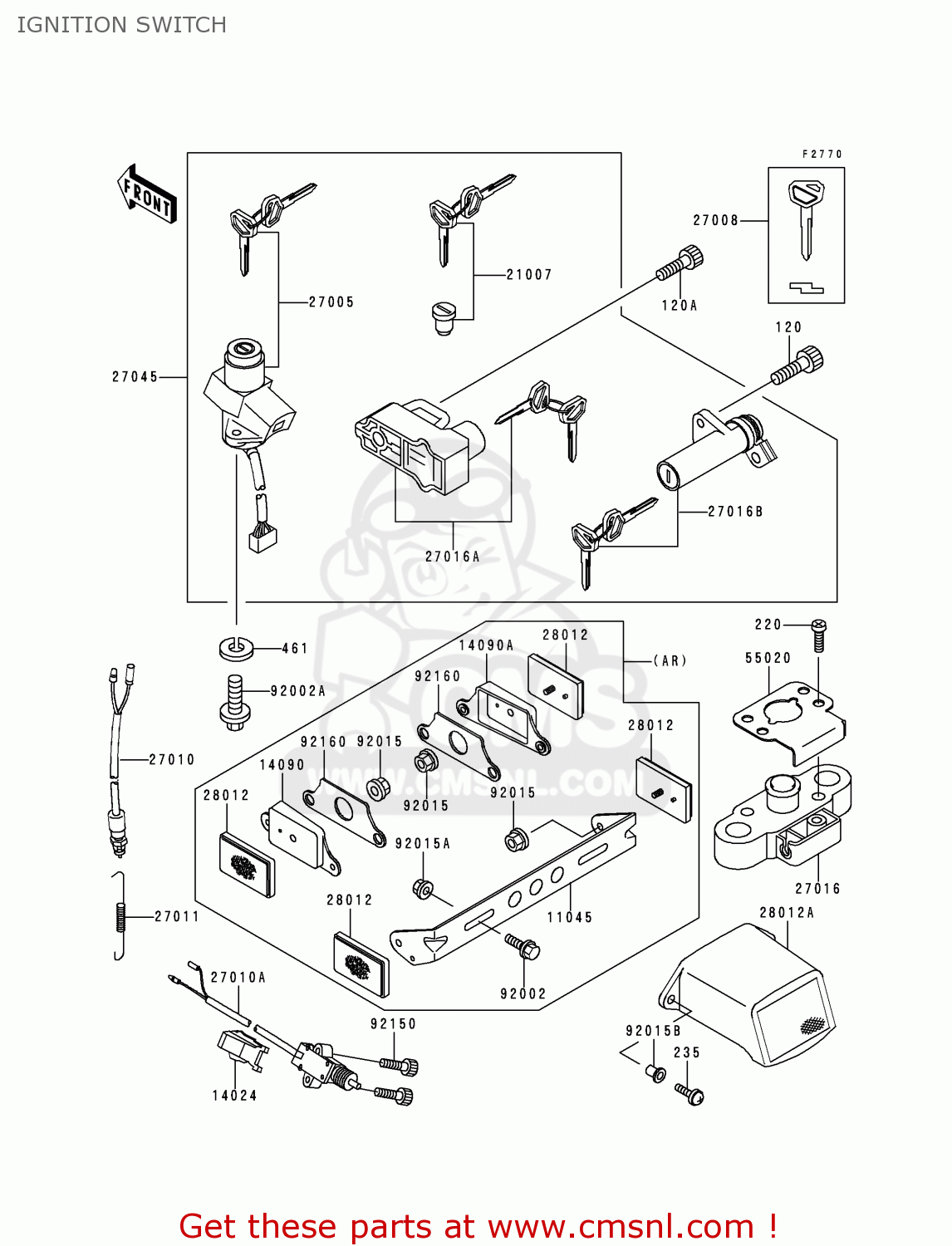

Ignition switch diagram ZX1100E1 GPZ1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

IGNITION SWITCH ZX1100E1 GPZ1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
IGNITION SWITCH ZX1100E1 GPZ1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
IGNITION SWITCH ZX1100E1 GPZ1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
120A
120S0616
ref: 120A
BOLT-SOCKET,6X16
120S0616
€ 1.00
220
220C0630
ref: 220
SCREW-PAN-CROS,6X30,B
220C0630
€ 1.50
235
235C0620
ref: 235
SCREW-PAN-WP-CROS
235C0620
€ 1.50
461
461L0600
ref: 461
WASHER-SPRING
€ 0.50
11045
110451371
ref: 11045
AR
BRACKET,REFLECTOR
€ 8.00
14024
140241532
ref: 14024
COVER,SIDE STAND SWIT
140241532
€ 5.00
14090
140901562
ref: 14090
AR
COVER,REFLECTOR,FR,LH
€ 11.50
14090A
140901563
ref: 14090A
AR
COVER,REFLECTOR,FR,RH
€ 11.50
21007
210075037
ref: 21007
ROTOR,LOCK,TANK CAP
210075037
€ 65.50
27005
270055102
ref: 27005
SWITCH-ASSY-IGNITION
270055102
€ 249.50
27008
270081173
ref: 27008
KEY-LOCK,BLANK
270081173
€ 13.00
27010
270101093
ref: 27010
SWITCH,BRAKE LAMP
270101093
€ 20.00
27010A
270101226
ref: 27010A
SWITCH,SIDE STAND
270101226
€ 47.50
27011
27011011
ref: 27011
SPRING,BRAKE LAMP SW
27011011
€ 5.50
27016
270161098
ref: 27016
LOCK-ASSY,SEAT STRIKE
270161098
€ 72.50
27016A
270165203
ref: 27016A
LOCK-ASSY,HELMET
270165203
€ 54.00
27016B
270165205
ref: 27016B
LOCK-ASSY,SEAT
270165205
€ 59.50
27045
270455013
ref: 27045
SWITCH-ASSY
€ 268.00
28012
280121003
ref: 28012
AR
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121066
ref: 28012A
REFLECTOR-REFLEX,RR
280121066
€ 23.00
55020
550201498
ref: 55020
GUARD,SEAT STRIKER
€ 13.00
92002
920021132
ref: 92002
AR
BOLT,6X12
€ 2.50
92002A
920021333
ref: 92002A
BOLT
920021333
€ 1.50
92015
920151259
ref: 92015
AR
NUT,FLANGED,5MM
920151259
€ 2.50
92015A
920151367
ref: 92015A
AR
NUT,FLANGED,6MM
920151367
€ 0.50
92015B
920151700A
ref: 92015B
NUT
920151700A
€ 5.50
92150
921501491
ref: 92150
BOLT
921501491
€ 2.50
92160
921601586
ref: 92160
AR
DAMPER,REFLECTOR
€ 4.00
