HEADLIGHT(S)

ZX1100E1 GPZ1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

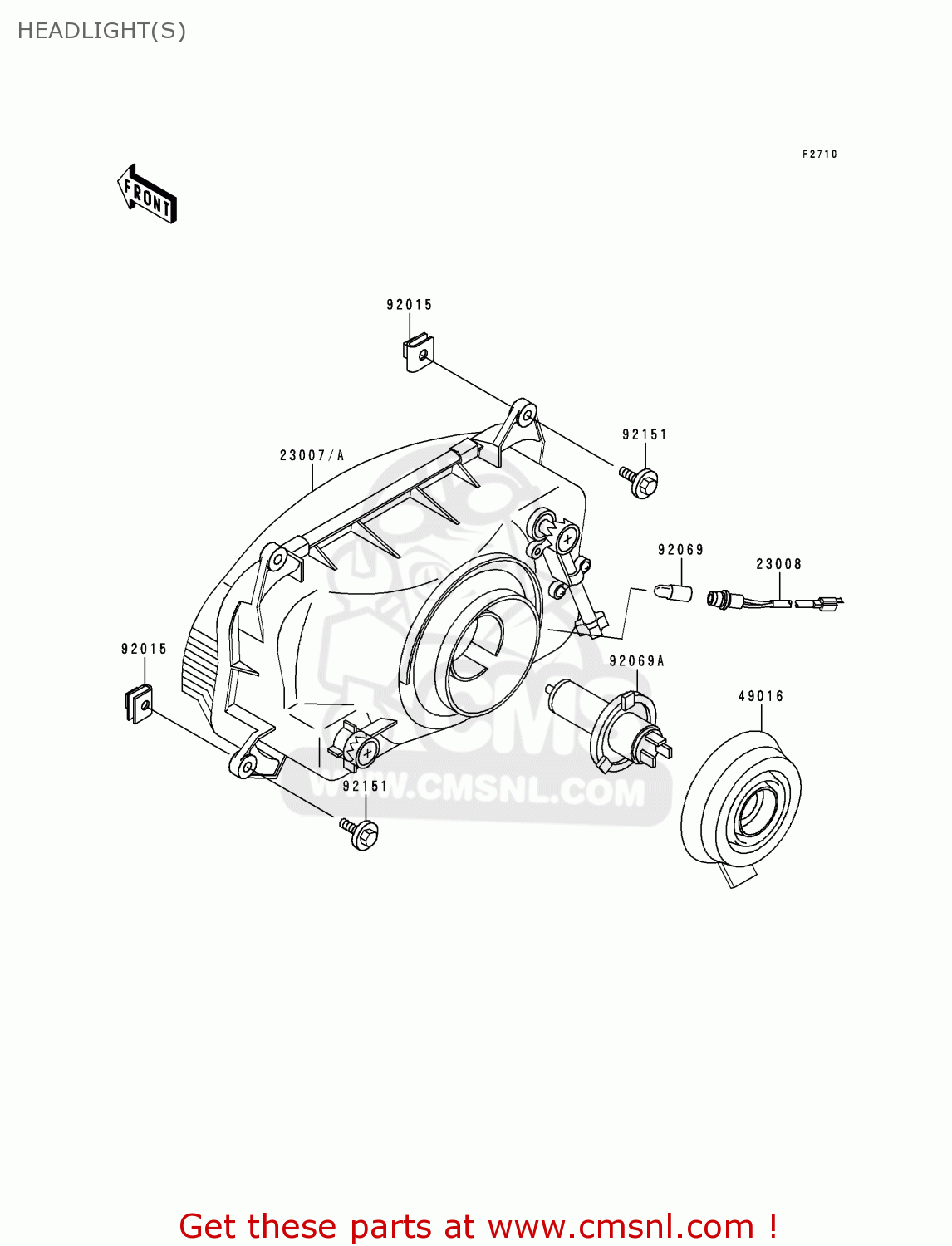

Headlight(s) diagram ZX1100E1 GPZ1100 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

23007

230071334
ref: 23007
AREUFGFRGRITNLNRSDSP

LENS-COMP,HEAD LAMP

€ 233.50

23007A

230071335
ref: 23007A
UK

LENS-COMP,HEAD LAMP

€ 341.00

23008

230081362
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 15.50

49016

490161137
ref: 49016

COVER-SEAL,HEAD LAMP

€ 10.50

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92069

92069071
ref: 92069

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A

BULB,12V-60155W

€ 15.00

92151

921511241
ref: 92151

BOLT

€ 3.00
