REAR SUSPENSION

ZX1100D7 NINJAZX11 1999 USA CALIFORNIA CANADA

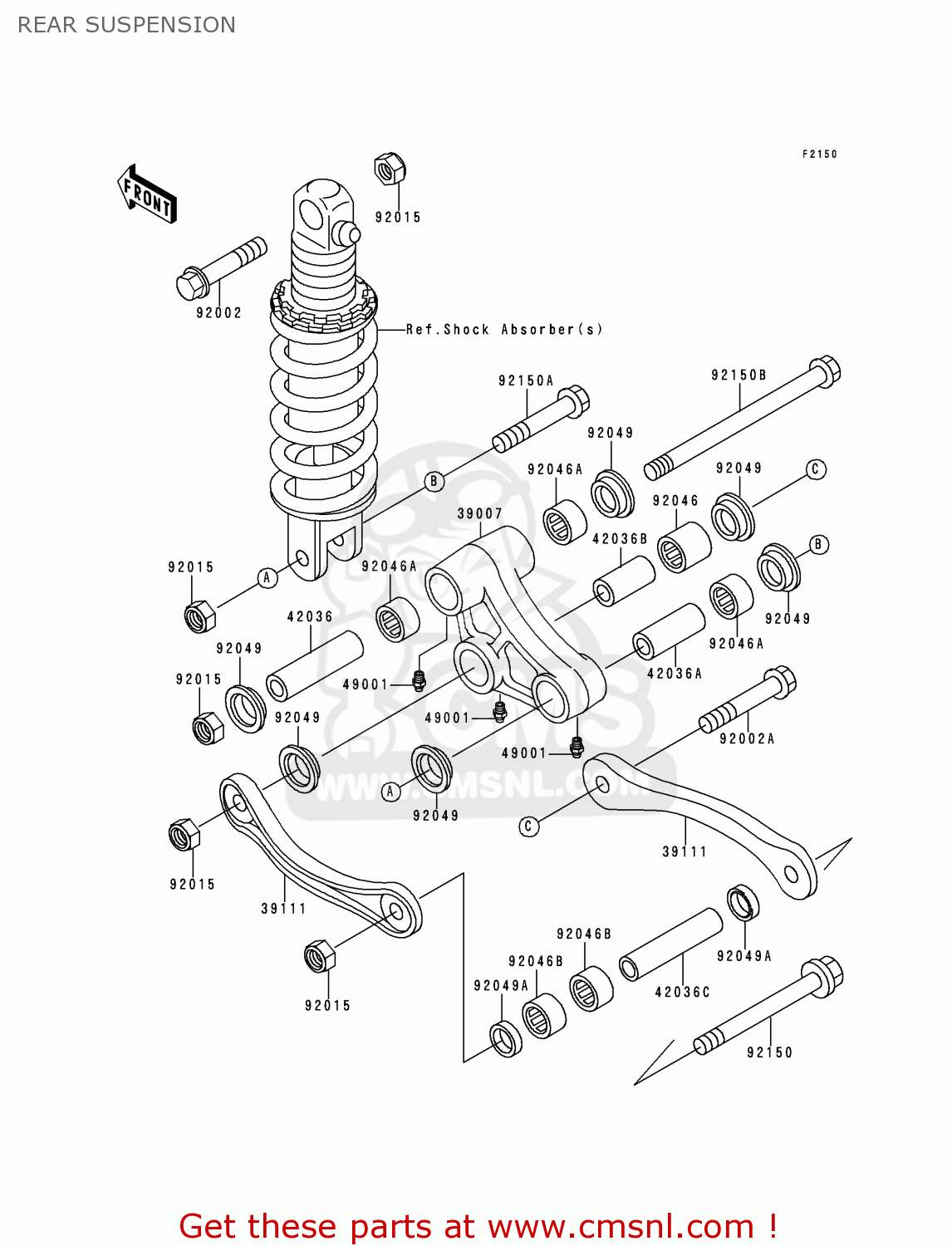

Rear suspension diagram ZX1100D7 NINJAZX11 1999 USA CALIFORNIA CANADA

REAR SUSPENSION ZX1100D7 NINJAZX11 1999 USA CALIFORNIA CANADA
REAR SUSPENSION ZX1100D7 NINJAZX11 1999 USA CALIFORNIA CANADA
REAR SUSPENSION ZX1100D7 NINJAZX11 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
39007
390071237
ref: 39007
ARM-SUSP,UNI TRAK
€ 214.00
39111
391111130
ref: 39111
ROD-TIE,SUSPENSION
391111130
€ 103.50
42036
420361079
ref: 42036
SLEEVE,12.1X20X70
420361079
€ 19.00
42036A
420361108
ref: 42036A
SLEEVE,12.1X20X40
420361108
€ 14.00
42036B
420361111
ref: 42036B
SLEEVE,12.5X20X50
420361111
€ 15.00
42036C
420361231
ref: 42036C
SLEEVE,12.1X18X82
420361231
€ 17.50
49001
490011051
ref: 49001
NIPPLE-GREASE,ROD BOL
490011051
€ 2.00
92002
920021464
ref: 92002
BOLT,FLANGED,12X60
920021464
€ 8.50
92002A
920021785
ref: 92002A
BOLT,SUSPENSION ARM,1
920021785
€ 10.50
92015
920151190
ref: 92015
NUT,LOCK,12MM,BLACK
920151190
€ 4.50
92046
920461110
ref: 92046
BEARING-NEEDLE,BM2027
920461110
€ 22.50
92046A
920461112
ref: 92046A
BEARING-NEEDLE,BM2027
920461112
€ 21.50
92046B
920461144
ref: 92046B
BEARING-NEEDLE,18BM24
920461144
€ 27.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
920491109
€ 6.50
92049A
920491225
ref: 92049A
SEAL-OIL,MHA18244
920491225
€ 7.50
92150
921501088
ref: 92150
BOLT,FLANGED,12X110
921501088
€ 9.00
92150A
921501115
ref: 92150A
BOLT,FLANGED,12X70
921501115
€ 6.00
92150B
921501931
ref: 92150B
BOLT
921501931
€ 14.00
