CYLINDER HEAD COVER

ZX1100D7 NINJAZX11 1999 USA CALIFORNIA CANADA

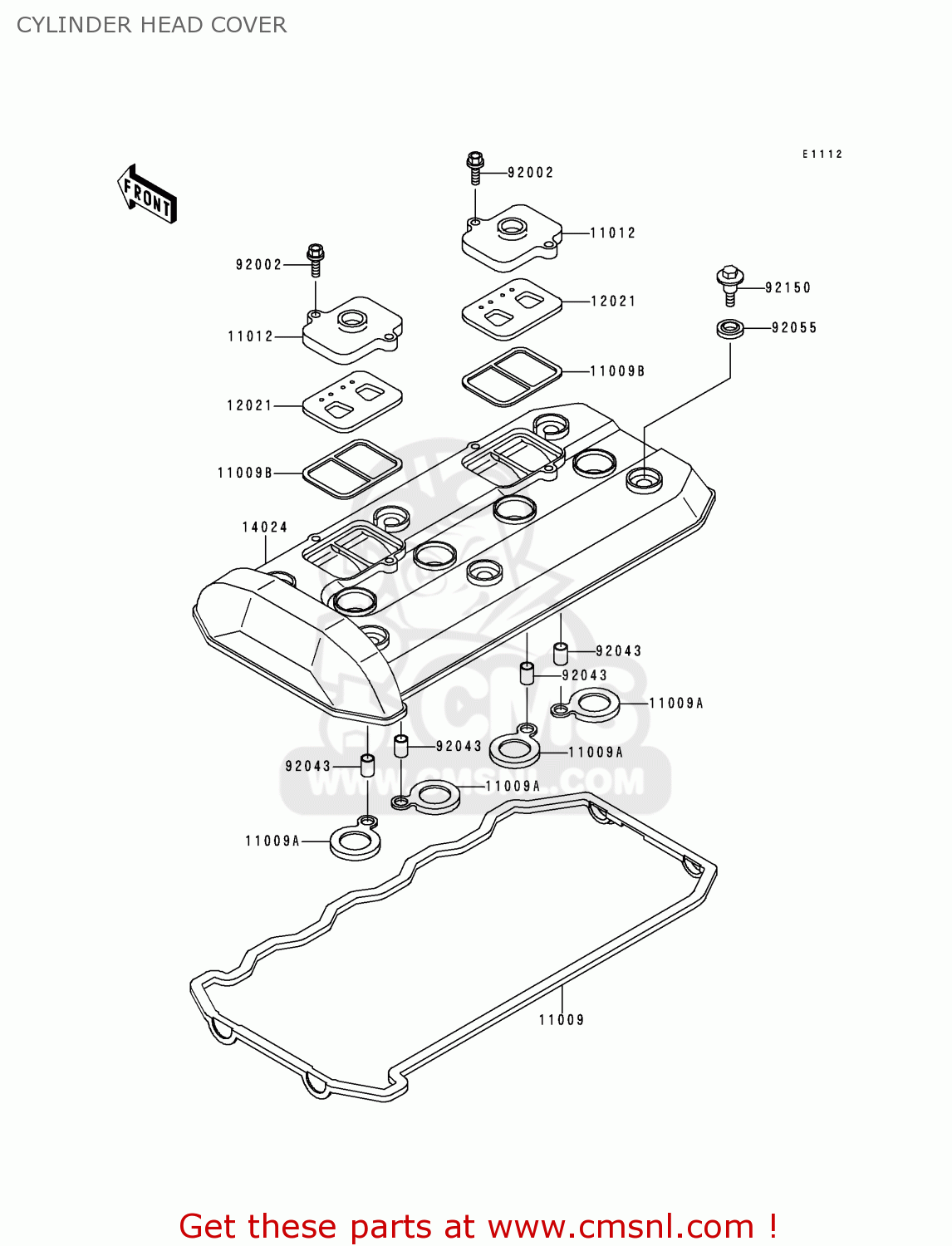

Cylinder head cover diagram ZX1100D7 NINJAZX11 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11009

110091724
ref: 11009

GASKET,HEAD COVER (NAS)

€ 56.00

11009A

110091725
ref: 11009A

GASKET,SPARK PLUG (NAS)

€ 6.00

11009B

110091857
ref: 11009B

GASKET,REED VALVE (NAS)

€ 6.00

11012

110121532
ref: 11012

CAP,REED VALVE

€ 18.00

12021

120211053
ref: 12021

VALVE-ASSY-REED

€ 50.50

14024

140241628
ref: 14024

COVER,HEAD

€ 320.50

92002

920021068
ref: 92002

BOLT,6X22

€ 2.50

92043

920431264
ref: 92043

PIN,DOWEL,8.2X10X14

€ 0.50

92055

920551352
ref: 92055

RING-O,HEAD COVER BOL

€ 7.00

92150

921501447
ref: 92150

BOLT

€ 3.00
