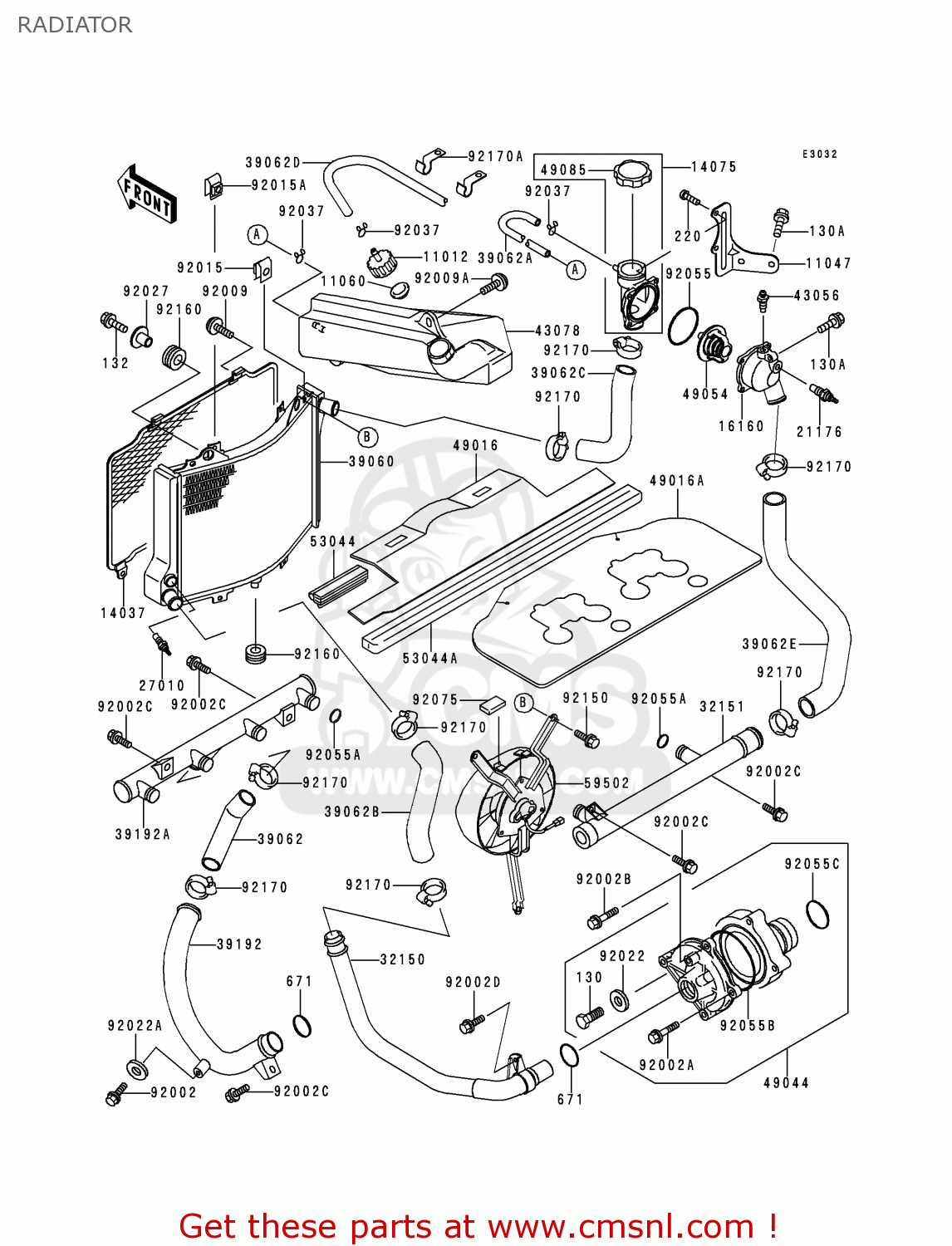

RADIATOR

ref

part #

description

quantity

11012

110121854
ref: 11012

CAP

€ 6.50

11047

110471887
ref: 11047

BRACKET,THERMOSTAT BO

€ 10.00

11060

110601349
ref: 11060

GASKET,RESERVOIR TANK (NAS)

€ 3.00

14037

140371172
ref: 14037

SCREEN,RADIATOR

€ 58.50

14075

140751068
ref: 14075

CAP-ASSY

€ 134.00

16160

161601117
ref: 16160

BODY,THERMOSTAT

€ 59.00

21176

211761054
ref: 21176

SENSOR,WATER

€ 49.50

27010

270101202
ref: 27010

SWITCH,FAN

€ 74.00

32150

321501483
ref: 32150

PIPE

€ 82.00

32151

321511359
ref: 32151

PIPE,CYLINDER HEAD

€ 109.00

39060

390601116
ref: 39060

RADIATOR

€ 794.50

39062

390621276
ref: 39062

HOSE-COOLING,PUMP-CYL

€ 24.50

39062A

390621285
ref: 39062A

HOSE COOLING

€ 18.00

39062B

390621377
ref: 39062B

HOSE-COOLING,RADIATOR

€ 27.00

39062C

390621531
ref: 39062C

HOSE-COOLING,THERMO-R

€ 27.00

39062D

390621533
ref: 39062D

HOSE-COOLING,OVERFLOW

€ 15.50

39062E

390621542
ref: 39062E

HOSE-COOLING,HEAD-THE

€ 39.50

39192

391921011
ref: 39192

PIPE-WATER,PUMP-CYLIN

€ 56.00

39192A

391921031
ref: 39192A

PIPE-WATER,CYLINDER

€ 118.00

43056

43056003
ref: 43056

BREATHER-BRAKE

€ 16.50

43078

430781131
ref: 43078

RESERVOIR

€ 39.50

49016

490161165
ref: 49016

COVER-SEAL

€ 31.00

49016A

490161166
ref: 49016A

COVER-SEAL

€ 38.50

49044

490441076
ref: 49044

PUMP-WATER

€ 252.50

49054

490541051
ref: 49054

THERMOSTAT

€ 44.50

49085

490851067
ref: 49085

CAP-ASSY-PRESSURE

€ 39.50

53044

530441220
ref: 53044

TRIM

€ 4.50

53044A

530441269
ref: 53044A

TRIM,RADIATOR PLATE,O

€ 23.00

59502

595021105
ref: 59502

FAN-ASSY

€ 567.50

92002

920021099
ref: 92002

BOLT,6X16

€ 1.50

92002A

920021392
ref: 92002A

BOLT,6X22

€ 3.00

92002B

920021566
ref: 92002B

BOLT,6X40

€ 3.00

92002C

920021569
ref: 92002C

BOLT,6X12

€ 2.50

92002D

920021571
ref: 92002D

BOLT,6X16

€ 4.00

92009

920091261
ref: 92009

SCREW,TAPPING,6MM

€ 2.00

92009A

920091663
ref: 92009A

SCREW

€ 2.50

92015

920151487
ref: 92015

NUT

€ 3.00

92015A

920151758
ref: 92015A

NUT

€ 4.50

92022

920221976
ref: 92022

WASHER,6.2X6.2X1.0

€ 4.00

92022A

92022304
ref: 92022A

WASHER,PLAIN

€ 2.50

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

130A

130G0612
ref: 130A

BOLT,FLANGE,6X12

€ 0.50

132

132J0825
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

220

220D0514
ref: 220

SCREW-PAN-CROS

€ 2.50

671

671B2525
ref: 671

O RING,25MM

€ 3.00

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92055

92055112
ref: 92055

O RING, 53.5 M/M

€ 4.00

92055A

920551282
ref: 92055A

RING-O

€ 3.00

92055B

920551423
ref: 92055B

RING-O,WATER PUMP INS

€ 6.00

92055C

920551424
ref: 92055C

RING-O,33.2X2.4

€ 4.00

92075

920751446
ref: 92075

DAMPER,SIDE COVER

€ 3.00

92150

921501186
ref: 92150

BOLT

€ 3.00

92160

921601007
ref: 92160

DAMPER

€ 3.50

92170

921701284
ref: 92170

CLAMP,CABLE

€ 7.50

92170A

921701391
ref: 92170A

CLAMP,COOLING HOSE

€ 2.50
