FRONT FORK

ZX1100D7 NINJAZX11 1999 USA CALIFORNIA CANADA

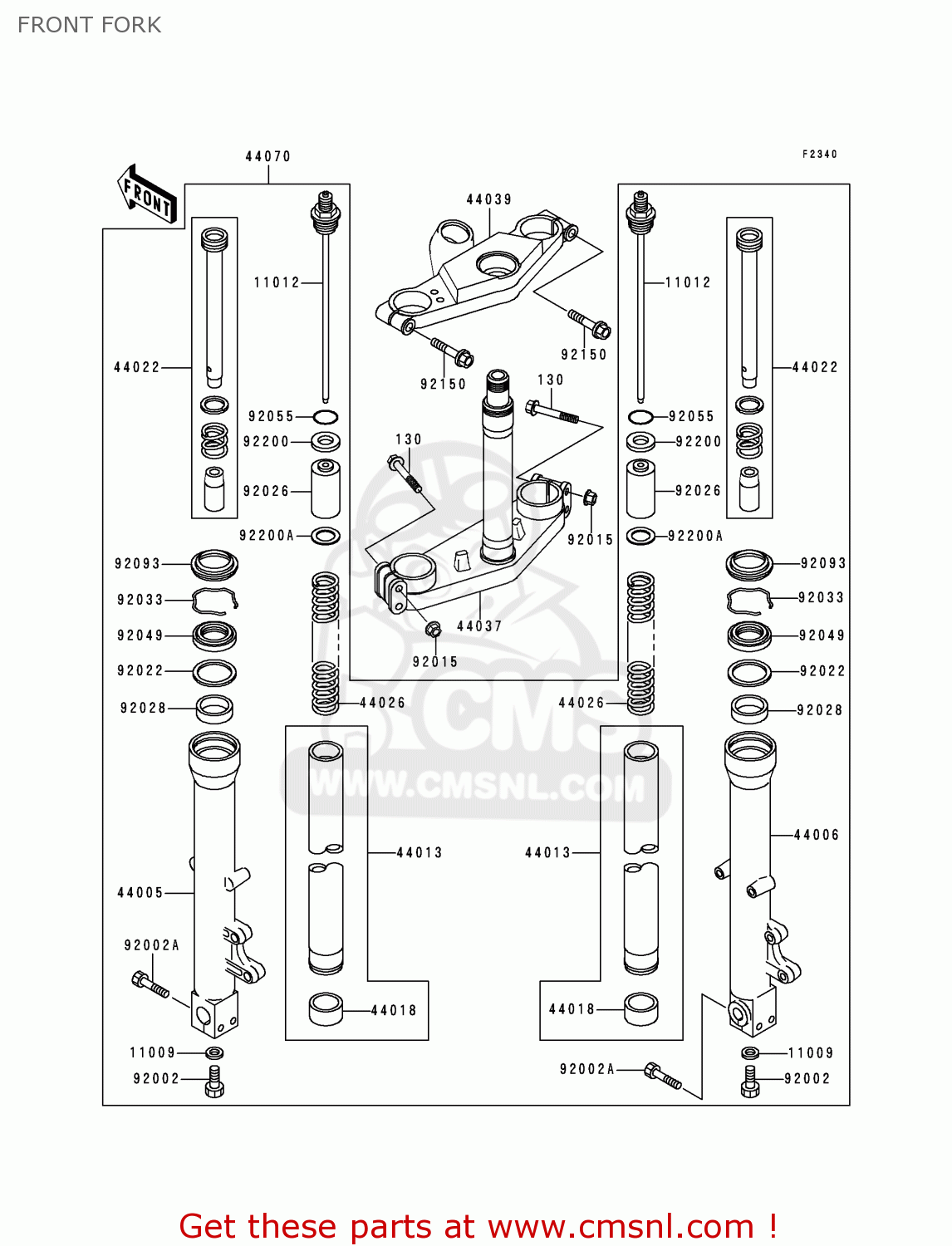

Front fork diagram ZX1100D7 NINJAZX11 1999 USA CALIFORNIA CANADA

FRONT FORK ZX1100D7 NINJAZX11 1999 USA CALIFORNIA CANADA
FRONT FORK ZX1100D7 NINJAZX11 1999 USA CALIFORNIA CANADA
FRONT FORK ZX1100D7 NINJAZX11 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130G0850
ref: 130
BOLT,8X50
130G0850
€ 1.00
11009
110091553
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
110091553
€ 3.00
11012
110121848
ref: 11012
CAP,FORK
110121848
€ 209.00
44005
440051378EZ
ref: 44005
PIPE-LEFT FORK OUTER,
440051378EZ
€ 375.50
44006
440061377EZ
ref: 44006
PIPE-RIGHT FORK OUTER
€ 375.50
44013
440131384
ref: 44013
PIPE-FORK INNER
€ 259.50
44018
440181056
ref: 44018
PISTON-FORK,INNER PIP
440181056
€ 19.00
44022
440221287
ref: 44022
CYLINDER-FORK
€ 132.50
44026
440261579
ref: 44026
SPRING-FRONT FORK
440261579
€ 71.50
44037
440371312
ref: 44037
HOLDER-FORK UNDER
440371312
€ 376.50
44039
440391237EZ
ref: 44039
HOLDER-FORK UPPER,C.G
440391237EZ
€ 225.00
44070
440701588EZ
ref: 44070
DAMPER-ASSY,FORK SET,
€ 1,820.50
92002
920021650
ref: 92002
BOLT,FORK DRAIN
920021650
€ 10.00
92002A
920021847
ref: 92002A
BOLT,SOCKET,8X45
€ 3.00
92015
920151485
ref: 92015
NUT,FLANGED,8MM
920151485
€ 3.50
92022
920221299
ref: 92022
WASHER
920221299
€ 5.50
92026
920261421
ref: 92026
SPACER,FORK,L=125
920261421
€ 6.00
92028
920281581
ref: 92028
BUSHING
920281581
€ 15.00
92033
920331077
ref: 92033
RING-SNAP
920331077
€ 3.00
92049
920491392
ref: 92049
SEAL-OIL,FORK OUTER T
920491392
€ 15.00
92055
920551123
ref: 92055
RING-O
920551123
€ 4.00
92093
920931330
ref: 92093
SEAL,FORK OUTER TUBE
920931330
€ 15.50
92150
921501210
ref: 92150
BOLT,FLANGED,10X45
921501210
€ 6.00
92200
922001023
ref: 92200
WASHER
922001023
€ 6.00
92200A
922001253
ref: 92200A
WASHER
922001253
€ 4.50
