REAR BRAKE

ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST

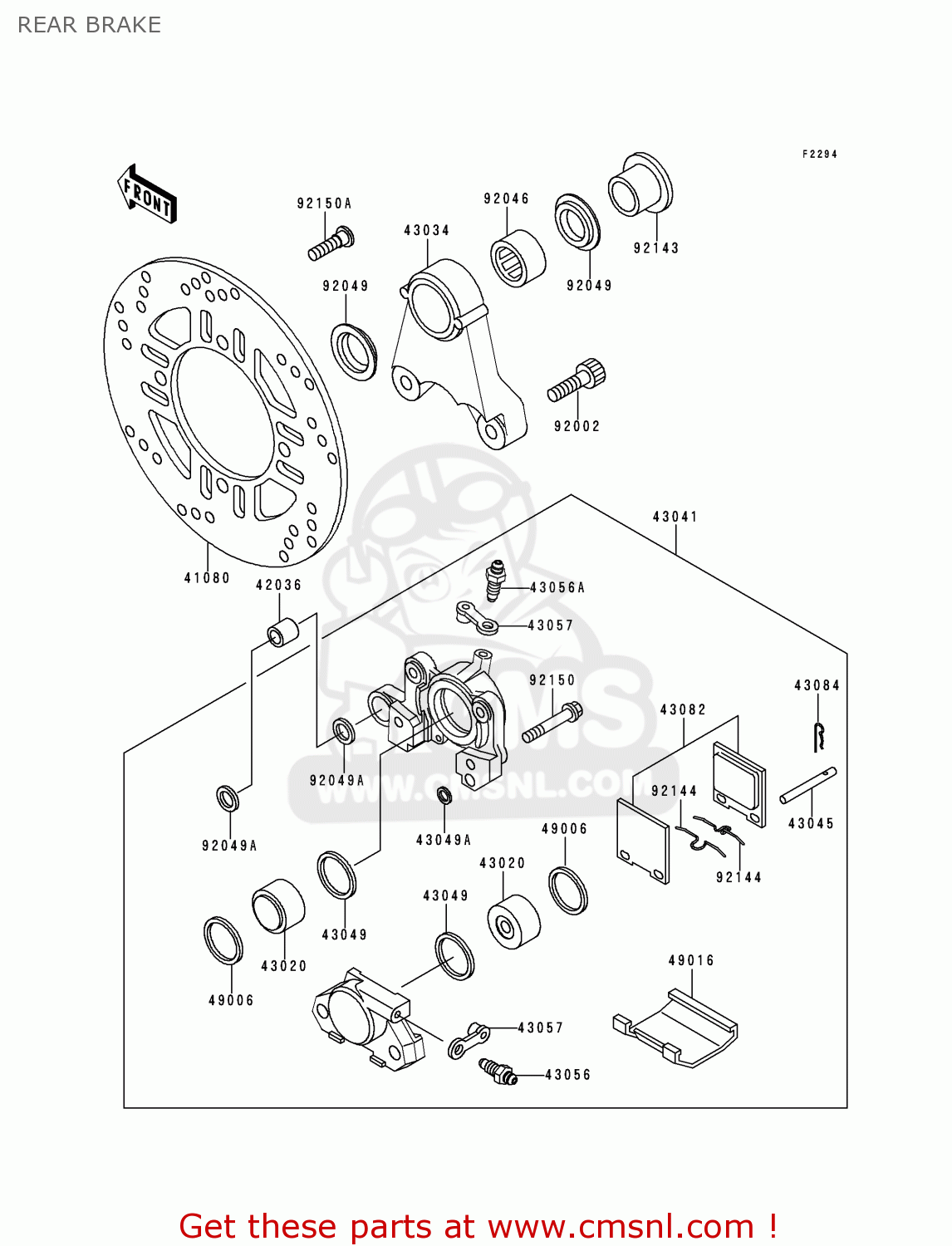

Rear brake diagram ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST

REAR BRAKE ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST
REAR BRAKE ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST
REAR BRAKE ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST
prices are in EUR
ref
part #
description
quantity
41080
410801353FB
ref: 41080
DISC,RR,C.GRAY
410801353FB
€ 255.00
42036
420361260
ref: 42036
SLEEVE,8.1X14X17.6
420361260
€ 10.50
43020
430201107
ref: 43020
PISTON-COMP-BRAKE
430201107
€ 47.50
43034
430341124FS
ref: 43034
HOLDER-BRAKE,REAR CAL
€ 152.50
43041
430411502FE
ref: 43041
CALIPER-ASSY,RR,M.F.G
430411502FE
€ 465.50
43045
43045007
ref: 43045
PIN CALIPER
43045007
€ 4.00
43049
43049001
ref: 43049
RING-PISTON SEAL
43049001
€ 7.50
43049A
430491004
ref: 43049A
RING SEAL6.5X11.5X2.2
430491004
€ 4.00
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43056A
430561054
ref: 43056A
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
43057003
€ 3.00
43082
430821141
ref: 43082
PAD-ASSY-BRAKE (NAS)
430821141
€ 42.50
43084
43084003
ref: 43084
CLIP, PAD
43084003
€ 2.50
49006
490061212
ref: 49006
BOOT,PISTON SEAL
490061212
€ 15.50
49016
490161145
ref: 49016
COVER-SEAL
490161145
€ 11.50
92002
920021442
ref: 92002
BOLT,SOCKET,8X25
920021442
€ 3.00
92046
920461111
ref: 92046
BEARING-NEEDLE,BM2817
920461111
€ 21.50
92049
920491181
ref: 92049
SEAL-OIL
920491181
€ 7.50
92049A
920491339
ref: 92049A
SEAL-OIL
920491339
€ 3.50
92143
921431043
ref: 92143
COLLAR,L=35
921431043
€ 30.00
92144
921441401
ref: 92144
SPRING,PAD
921441401
€ 3.50
92150
921501273
ref: 92150
BOLT
921501273
€ 5.50
92150A
921501771
ref: 92150A
BOLT
921501771
€ 3.00
