BRAKE PEDAL

ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST

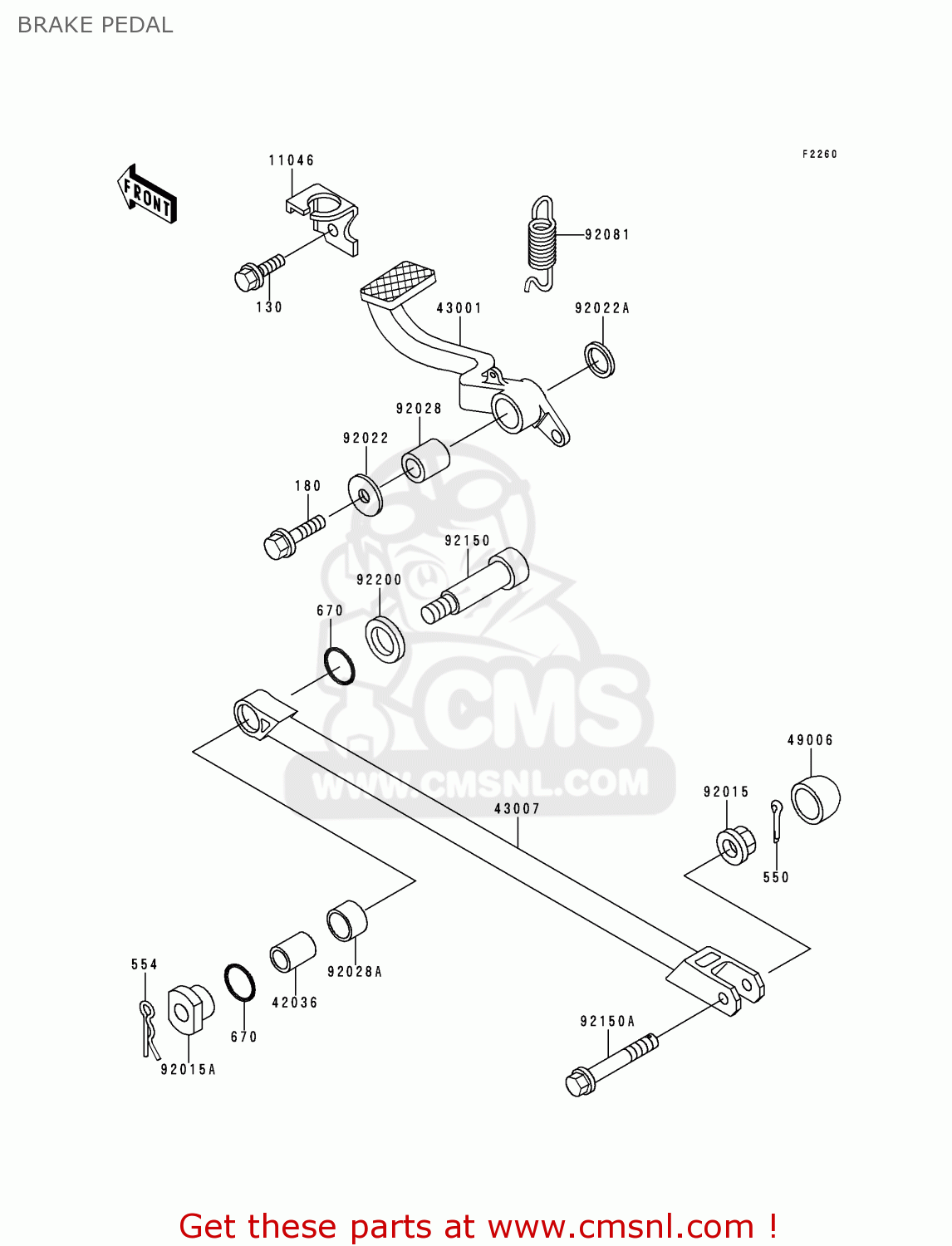

Brake pedal diagram ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST

BRAKE PEDAL ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST
BRAKE PEDAL ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST
BRAKE PEDAL ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST
prices are in EUR
ref
part #
description
quantity
130
130H0610
ref: 130
BOLT-FLANGED,6X10
€ 0.50
180
180H0614
ref: 180
BOLT-UPSET-WS
€ 1.00
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
554
554A0800
ref: 554
PIN-SNAP,8MM
554A0800
€ 1.00
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
11046
110461252
ref: 11046
BRACKET,REAR BRAKE SW
110461252
€ 5.50
42036
420361242
ref: 42036
SLEEVE,10.1X16X20
420361242
€ 9.50
43001
430011292
ref: 43001
LEVER-BRAKE,PEDAL
430011292
€ 41.50
43007
430071165GD
ref: 43007
ROD-TORQUE,G.GRAY
€ 76.00
49006
490061218
ref: 49006
BOOT
490061218
€ 3.50
92015
920151432
ref: 92015
NUT,8MM
920151432
€ 4.50
92015A
920151747
ref: 92015A
NUT,8MM
920151747
€ 12.00
92022
920221282
ref: 92022
WASHER,7X28X1.6
920221282
€ 3.00
92022A
92022326
ref: 92022A
WASHER,15.3X24X1
92022326
€ 2.50
92028
920281282
ref: 92028
BUSHING,BRAKE PEDAL
920281282
€ 9.50
92028A
920281468
ref: 92028A
BUSHING
920281468
€ 6.00
92081
920811833
ref: 92081
SPRING,BRAKE PEDAL
920811833
€ 7.00
92150
921501167
ref: 92150
BOLT,SOCKET,8X61
921501167
€ 12.00
92150A
921501539
ref: 92150A
BOLT,FLANGED,8X47
921501539
€ 6.50
92200
922001313
ref: 92200
WASHER,10MM
922001313
€ 3.00
