Genuine ZX Kawasaki Parts delivered quickly!


ENGINE COVER(S)

ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST

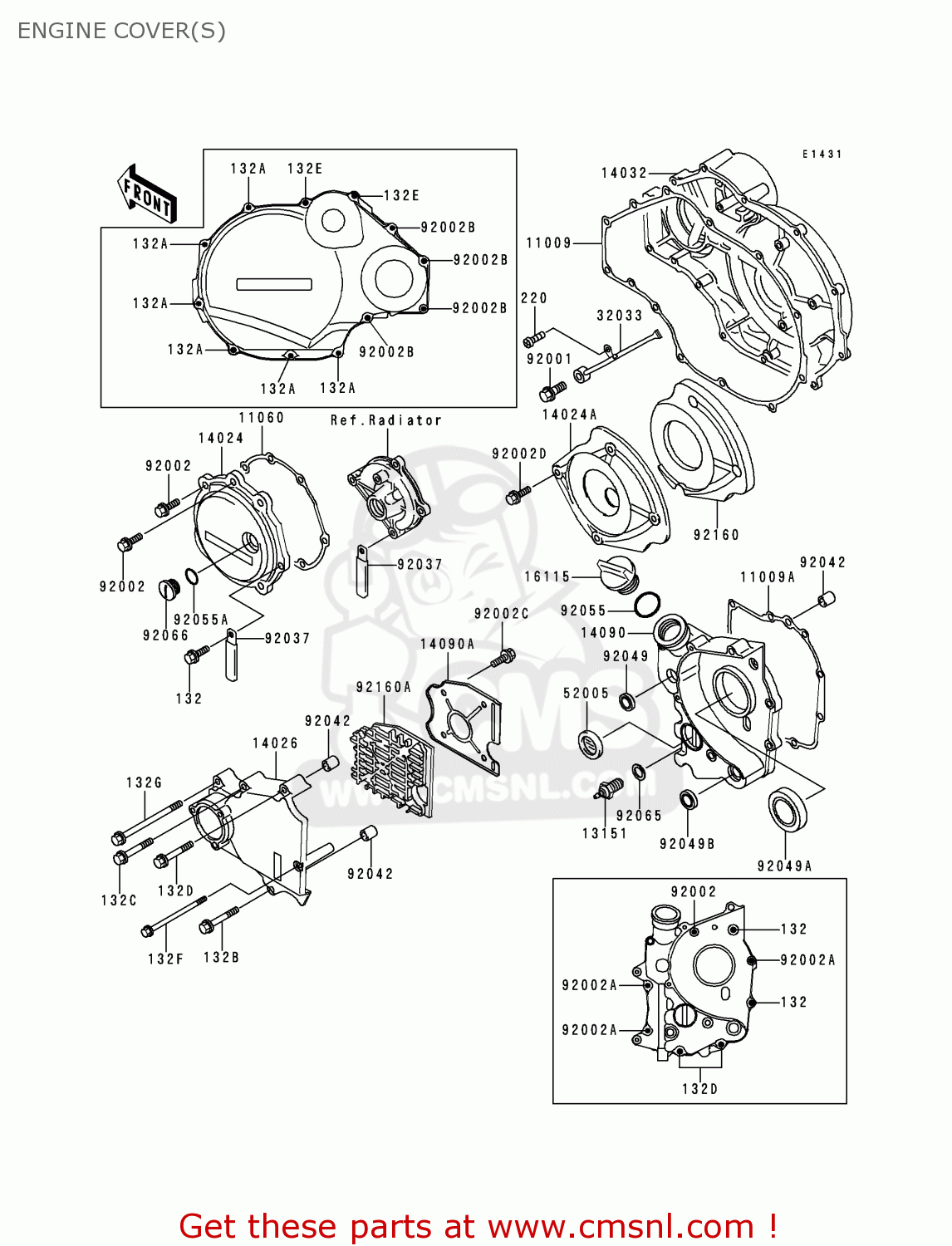

Engine cover(s) diagram ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST

ENGINE COVER(S) ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST
ENGINE COVER(S) ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST
ENGINE COVER(S) ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST
prices are in EUR
ref
part #
description
quantity
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
132J0620
€ 2.00
132A
132J0625
ref: 132A
BOLT-FLANGED-SMALL
132J0625
€ 2.50
132B
132J0635
ref: 132B
BOLT-FLANGED-SMALL
132J0635
€ 2.50
132C
132J0640
ref: 132C
BOLT-FLANGED-SMALL
132J0640
€ 3.00
132D
132J0650
ref: 132D
BOLT-FLANGED-SMALL
132J0650
€ 3.00
132E
132J0655
ref: 132E
BOLT-FLANGED-SMALL
132J0655
€ 3.00
132F
132J0665
ref: 132F
BOLT-FLANGED-SMALL
132J0665
€ 3.00
132G
132J0680
ref: 132G
BOLT-FLANGED-SMALL
132J0680
€ 4.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
220B0510
€ 0.50
11009
110091860
ref: 11009
GASKET,CLUTCH COVER (NAS)
110091860
€ 9.50
11009A
110091982
ref: 11009A
GASKET (NAS)
110091982
€ 12.00
11060
110601695
ref: 11060
GASKET,PULSING COVER (NAS)
110601695
€ 6.50
13151
131511080
ref: 13151
SWITCH-COMP,NEUTRAL
131511080
€ 9.00
14024
140241721
ref: 14024
COVER,PULSING
140241721
€ 111.50
14024A
140241925
ref: 14024A
COVER,SOUND ARRESTER
140241925
€ 12.00
14026
140261213
ref: 14026
COVER-CHAIN
€ 130.50
14032
140321401
ref: 14032
COVER-CLUTCH
€ 185.50
14090
140901526
ref: 14090
COVER,TRANSMISSION
€ 99.00
14090A
140901527
ref: 14090A
COVER,SOUND ARRESTER
140901527
€ 20.50
16115
161151009
ref: 16115
CAP-OIL FILLER
161151009
€ 10.00
32033
320331204
ref: 32033
PIPE,CLUTCH COVER
320331204
€ 20.50
52005
520051057
ref: 52005
GAUGE,OIL LEVEL
520051057
€ 17.50
92001
920011855
ref: 92001
BOLT,BANJO,8X20
920011855
€ 5.50
92002
920021343
ref: 92002
BOLT,6X20
920021343
€ 4.00
92002A
920021344
ref: 92002A
BOLT,6X25
920021344
€ 1.50
92002B
920021345
ref: 92002B
BOLT,6X40
920021345
€ 4.50
92002C
920021449
ref: 92002C
BOLT,6X10
920021449
€ 2.50
92002D
920021541
ref: 92002D
BOLT,6X10
920021541
€ 4.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92049
920491017
ref: 92049
SEAL-OIL,SD-8187
920491017
€ 6.50
92049A
920491070
ref: 92049A
SEAL-OIL,AE2343F0
920491070
€ 11.50
92049B
920491186
ref: 92049B
SEAL-OIL,TB13205
920491186
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92055A
920551146
ref: 92055A
RING-O
920551146
€ 5.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
92066
920661163
ref: 92066
PLUG,COVER,LH
920661163
€ 10.00
92160
921601567
ref: 92160
DAMPER,SOUND ARRESTER
€ 95.50
92160A
921601568
ref: 92160A
DAMPER,SOUND ARRESTER
€ 26.50
