FRAME

ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST

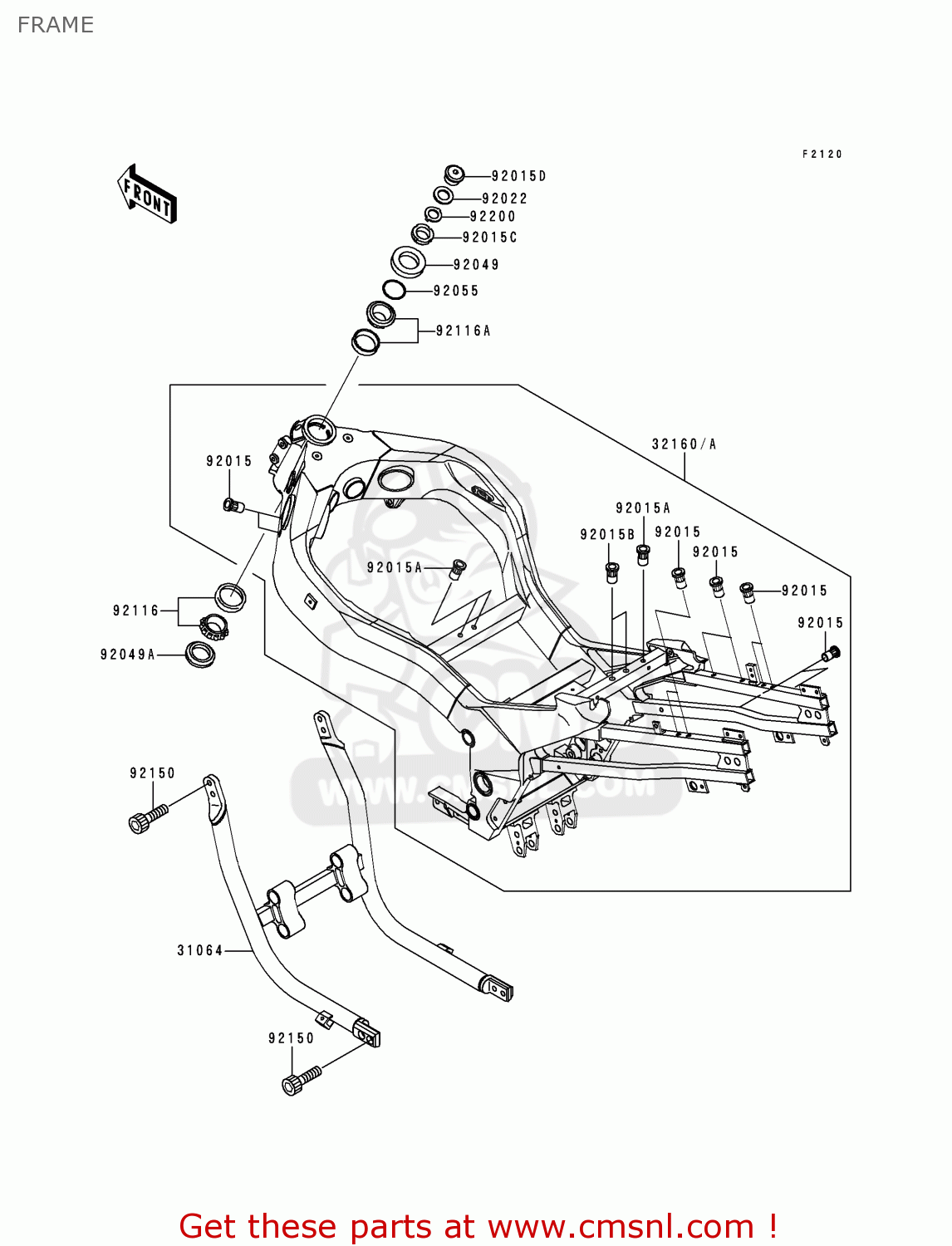

Frame diagram ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST

FRAME ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST
FRAME ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST
FRAME ZX1100D6 ZZR1100 1998 EUROPE UK FR NL GR IT NR SP ST
prices are in EUR
ref
part #
description
quantity
31064
31064114810
ref: 31064
PIPE-COMP,SIDE FRAME,
€ 297.50
32160
321601280GD
ref: 32160
FRGRITNRSTUK
FRAME-COMP,G.GRAY
€ 1,930.00
32160A
321601298GD
ref: 32160A
EUNLSP
FRAME-COMP,G.GRAY
€ 1,704.00
92015
920151791
ref: 92015
NUT,POP,6MM
920151791
€ 3.00
92015A
920151792
ref: 92015A
NUT,POP,6MM,L=16.5
920151792
€ 3.00
92015B
920151794
ref: 92015B
NUT,POP,8MM
920151794
€ 3.00
92015C
920151848
ref: 92015C
NUT,STEERING STEM,35M
920151848
€ 32.50
92015D
920151891
ref: 92015D
NUT,STEERING,25MM
920151891
€ 49.50
92022
92022250
ref: 92022
WASHER,PLAIN
92022250
€ 3.00
92049
920491382
ref: 92049
SEAL-OIL,XMH 43 75 6.
920491382
€ 16.00
92049A
920491383
ref: 92049A
SEAL-OIL,XMHE 43 55 4
920491383
€ 13.00
92055
920551452
ref: 92055
RING-O,34.5X2.0
920551452
€ 3.00
92116
921161072
ref: 92116
BEARING-ROLLER,32907J
921161072
€ 76.50
92116A
921161074
ref: 92116A
BEARING-ROLLER,32907J
921161074
€ 76.50
92150
921501690
ref: 92150
BOLT,SOCKET,10X30
921501690
€ 4.00
92200
922001083
ref: 92200
WASHER,CLAW,25.5X40X2
922001083
€ 4.50
