SWINGARM

ZX1100D1 NINJAZX11 1993 USA CALIFORNIA CANADA

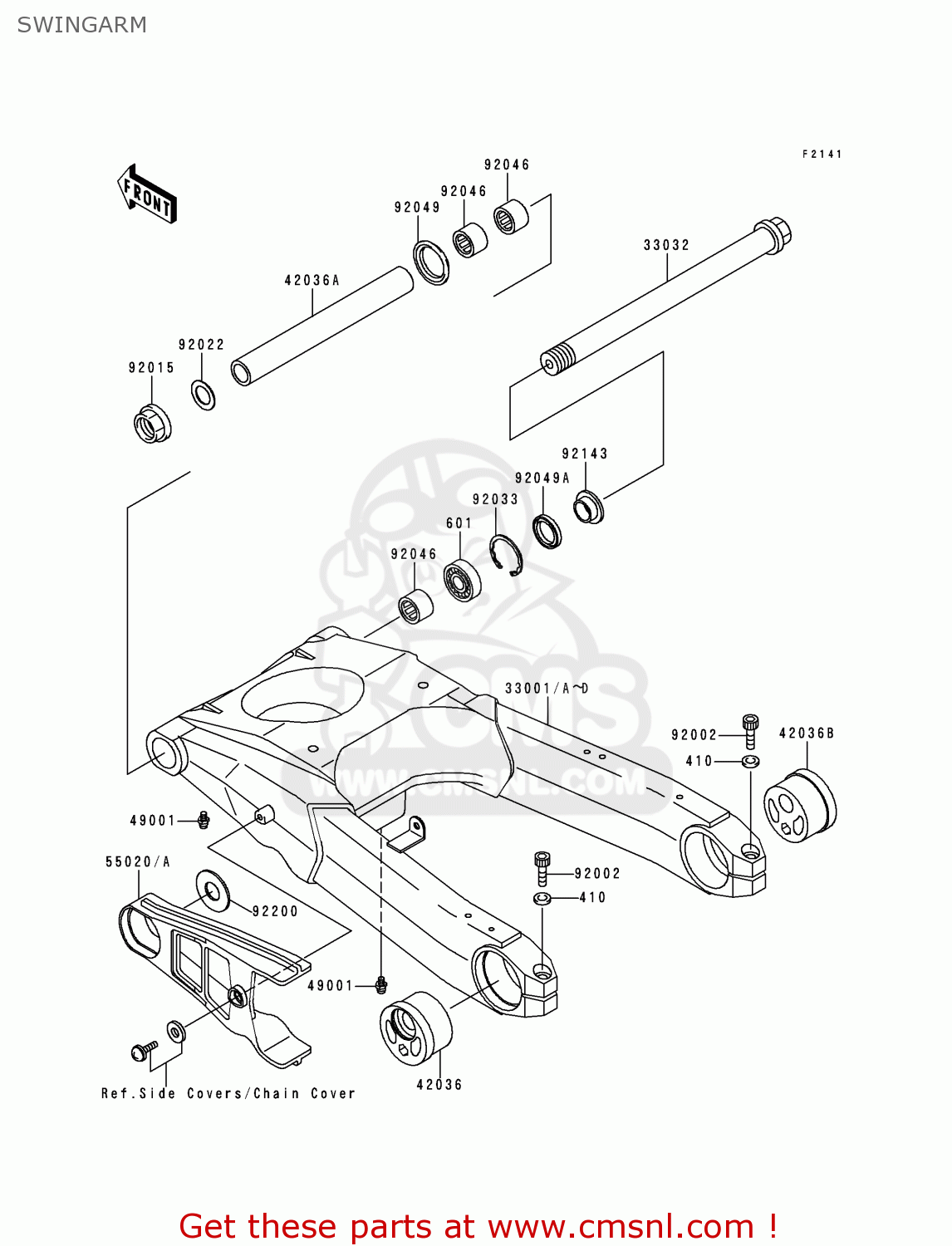

Swingarm diagram ZX1100D1 NINJAZX11 1993 USA CALIFORNIA CANADA

SWINGARM ZX1100D1 NINJAZX11 1993 USA CALIFORNIA CANADA

SWINGARM ZX1100D1 NINJAZX11 1993 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

410

410E1000
ref: 410

W-PLAIN-S

€ 0.50

601

601A6004
ref: 601

BEARING-BALL,#6004

€ 13.00

33001A

330011417TX
ref: 33001A
CN

ARM-COMP-SWING,SILVER

€ 962.50

33001B

330011417VZ
ref: 33001B
CAUS

SWING ARM,COMPLETE,SILVER #35

€ 310.00

33032

330321170
ref: 33032

SHAFT-SWING ARM

€ 51.50

42036

420361153
ref: 42036

SLEEVE,REAR AXLE,LH

€ 82.50

42036A

420361264
ref: 42036A

SLEEVE,SWING ARM,L=23

€ 50.50

42036B

420361265
ref: 42036B

SLEEVE,REAR AXLE,RH

€ 82.50

49001

490011051
ref: 49001

NIPPLE-GREASE,ROD BOL

€ 2.00

55020

550201478
ref: 55020

GUARD,CHAIN

€ 50.00

92002

920021452
ref: 92002

BOLT

€ 4.00

92015

920151724
ref: 92015

NUT,FLANGED,20MM

€ 10.50

92022

920221280
ref: 92022

WASHER,THRUST,20.5MM

€ 2.50

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92046

920461111
ref: 92046

BEARING-NEEDLE,BM2817

€ 21.50

92049

920491181
ref: 92049

SEAL-OIL

€ 7.50

92049A

920491314
ref: 92049A

SEAL-OIL,MHSA25 42 6

€ 9.00

92143

921431227
ref: 92143

COLLAR,SWING ARM,L=12

€ 7.50

92200

922001167
ref: 92200

WASHER,20.3X48X2.3

€ 8.00
