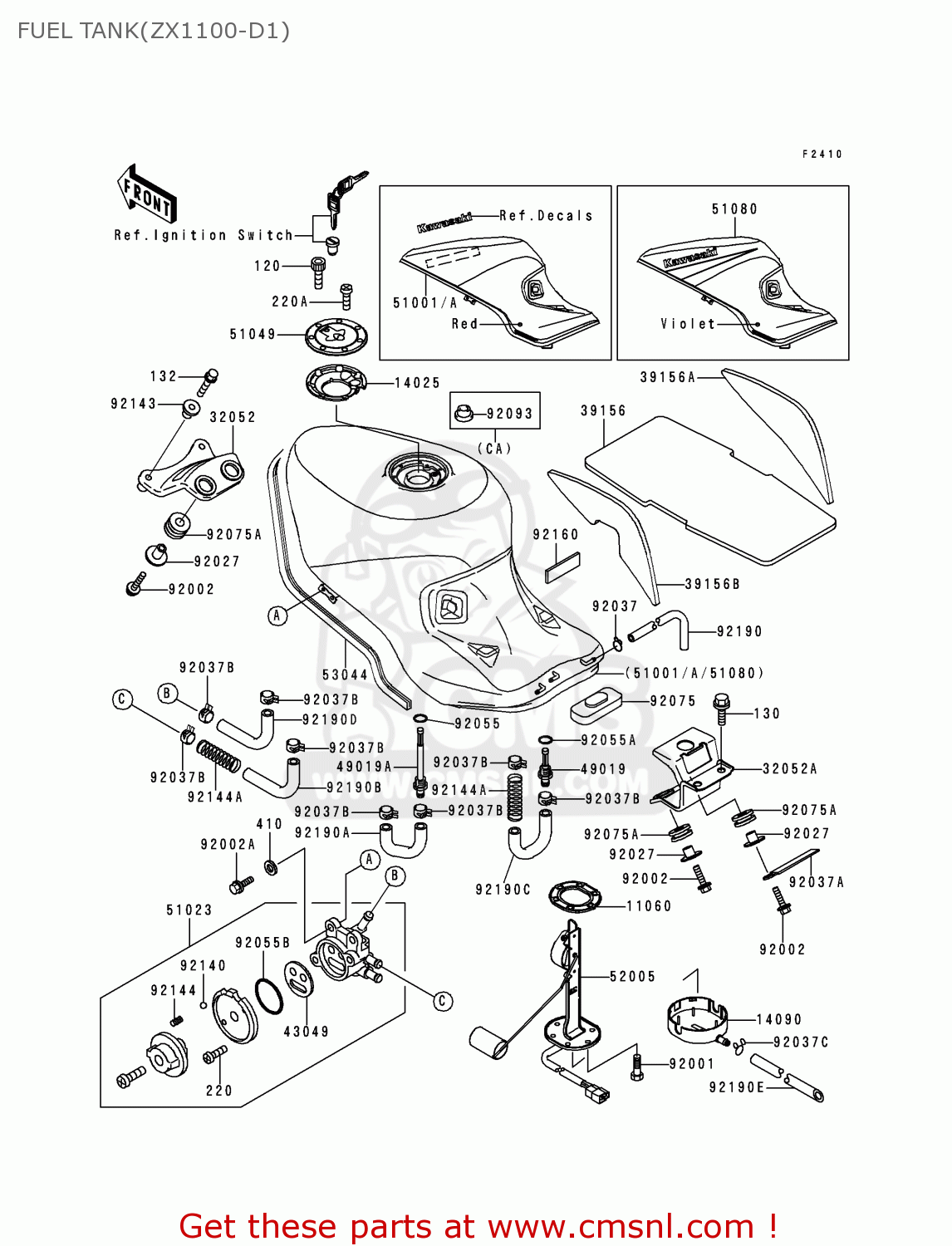

FUEL TANK(ZX1100-D1)

ref

part #

description

quantity

11060

110601337
ref: 11060

GASKET,FUEL GAUGE (NAS)

€ 8.50

14025

140251913
ref: 14025

COVER,TANK CAP

€ 13.50

14090

140901310
ref: 14090

COVER,FUEL GAUGE

€ 12.50

32052

320521370
ref: 32052

BRACKET-TANK,FR

€ 16.00

32052A

320521371
ref: 32052A

BRACKET-TANK,RR

€ 16.00

39156

391561334
ref: 39156

PAD,FUEL TANK,CNT

€ 39.50

39156A

391561335
ref: 39156A

PAD,FUEL TANK,RH

€ 16.00

39156B

391561336
ref: 39156B

PAD,FUEL TANK,LH

€ 16.00

43049

430491066
ref: 43049

PACKING,TAP VALVE (NAS)

€ 5.00

49019

490191070
ref: 49019

FILTER-FUEL

€ 15.00

49019A

490191076
ref: 49019A

FILTER-FUEL,ON

€ 19.00

51001

510011377TF
ref: 51001
CA

FUEL TANK,COMPLETE,CANDY WINE RED,5001-1389-TF

€ 501.00

51001A

510011378TF
ref: 51001A
US

FUEL TANK,COMPLETE,CANDY WINE RED

€ 1,565.50

51023

510231195
ref: 51023

TAP-ASSY,FUEL

€ 105.50

51049

510491091
ref: 51049

CAP-TANK,FUEL

€ 88.00

51080

510805001JW
ref: 51080
CN

TANK-COMP-FUEL,M.VIOL

€ 868.00

52005

520051106
ref: 52005

GAUGE,FUEL

€ 131.00

53044

530441268
ref: 53044

TRIM,L=1930

€ 31.00

92001

920011069
ref: 92001

BOLT,FUEL GAUGE FIT

€ 4.50

92002

920021237
ref: 92002

BOLT,6X20

€ 2.50

92002A

920021700
ref: 92002A

BOLT,6X14

€ 4.00

92027

92027251
ref: 92027

COLLAR,L=13.1

€ 1.00

92037

92037010
ref: 92037

CLAMP-FUEL PIPE

€ 2.50

92037A

920371069
ref: 92037A

CLAMP,L=60

€ 1.50

120

120S0512
ref: 120

BOLT-SOCKET

€ 1.00

130

130J0820
ref: 130

BOLT-FLANGED,8X20

€ 0.50

132

132J0635
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

220

220B0308
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220C0508
ref: 220A

SCREW-PAN-CROS

€ 1.00

410

410F0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

92037B

920371181
ref: 92037B

CLAMP

€ 1.00

92037C

92037147
ref: 92037C

CLAMP,CHAIN OILER

€ 4.50

92055

920551386
ref: 92055

RING-O,ID=9.5

€ 2.50

92055A

920551387
ref: 92055A

RING-O,ID=11.5

€ 2.50

92055B

920551419
ref: 92055B

RING-O,TAP LEVER

€ 3.00

92075

920751114
ref: 92075

DAMPER,FUEL TANK,RR

€ 11.00

92075A

920751690
ref: 92075A

DAMPER,10X24X12

€ 3.00

92093

920931030
ref: 92093
CA

OIL SEAL,FUEL TANK CA

€ 5.00

92140

921401051
ref: 92140

BALL,STAINLESS,5/32

€ 3.00

92143

921431088
ref: 92143

COLLAR,L=6.6

€ 3.50

92144

921441212
ref: 92144

SPRING,FUEL TAP KNOB

€ 2.50

92144A

921441722
ref: 92144A

SPRING,TUBE PROTECTOR

€ 3.00

92160

921603720
ref: 92160

DAMPER

€ 8.00

92190

921901365
ref: 92190

TUBE,5X8X230

€ 2.50

92190A

921901424
ref: 92190A

TUBE,ON,FILTER-TANK

€ 4.50

92190B

921901425
ref: 92190B

TUBE,ON,TANK-TAP

€ 6.00

92190C

921901426
ref: 92190C

TUBE,RES,FILTER-TANK

€ 6.00

92190D

921901427
ref: 92190D

TUBE,RES,TANK-TAP

€ 6.00

92190E

921901434
ref: 92190E

TUBE,7X10X230

€ 9.50
