Genuine ZX Kawasaki Parts delivered quickly!


RADIATOR

ZX1100D1 NINJAZX11 1993 USA CALIFORNIA CANADA

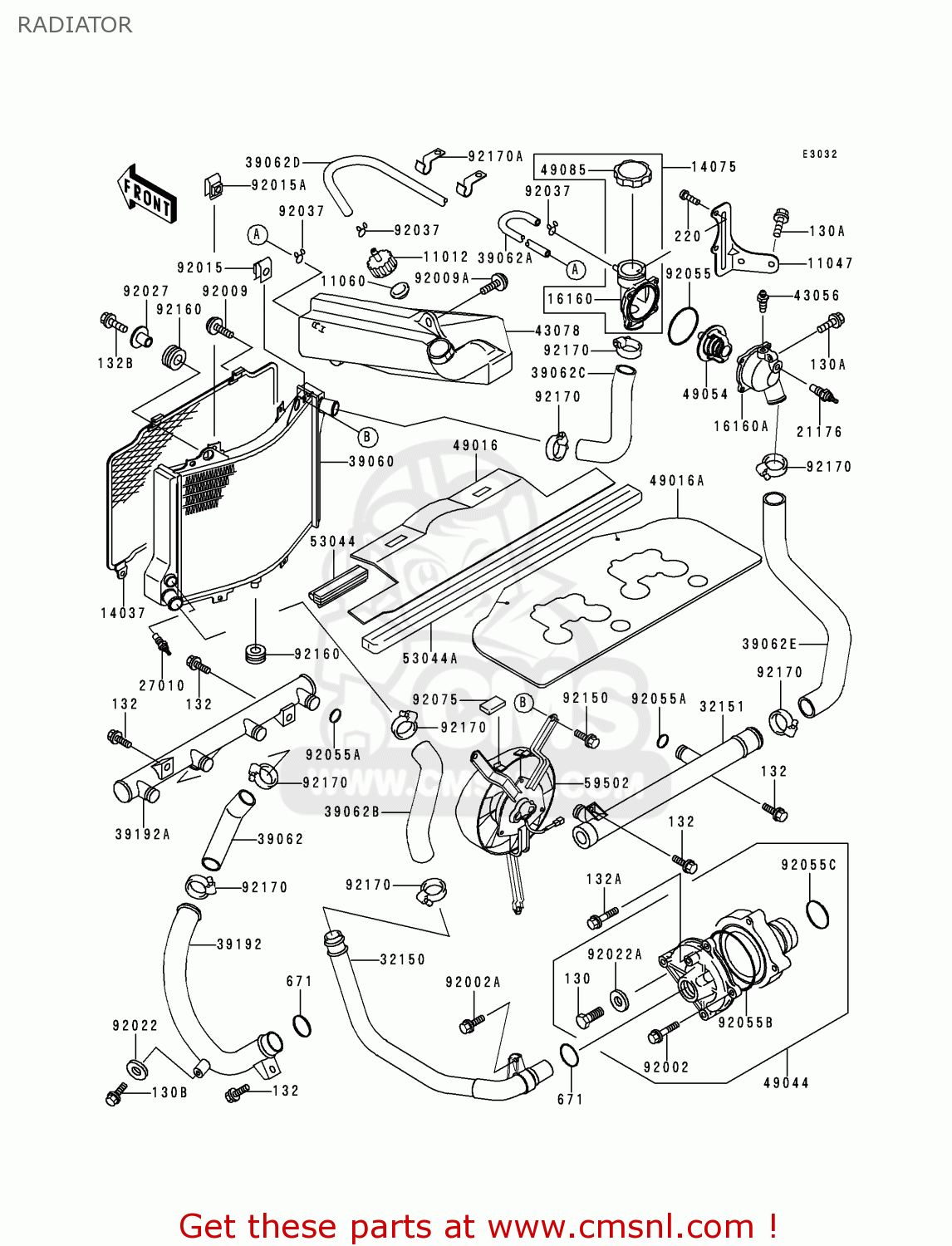

Radiator diagram ZX1100D1 NINJAZX11 1993 USA CALIFORNIA CANADA

RADIATOR ZX1100D1 NINJAZX11 1993 USA CALIFORNIA CANADA
RADIATOR ZX1100D1 NINJAZX11 1993 USA CALIFORNIA CANADA
RADIATOR ZX1100D1 NINJAZX11 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121854
ref: 11012
CAP
110121854
€ 6.50
11047
110471887
ref: 11047
BRACKET,THERMOSTAT BO
€ 10.00
11060
110601349
ref: 11060
GASKET,RESERVOIR TANK (NAS)
110601349
€ 3.00
14037
140371172
ref: 14037
SCREEN,RADIATOR
140371172
€ 58.50
14075
140751068
ref: 14075
CAP-ASSY
140751068
€ 134.00
16160
161601116
ref: 16160
BODY,THERMOSTAT,UPP
161601116
€ 134.00
16160A
161601117
ref: 16160A
BODY,THERMOSTAT
161601117
€ 59.00
21176
211761054
ref: 21176
SENSOR,WATER
211761054
€ 49.50
27010
270101202
ref: 27010
SWITCH,FAN
270101202
€ 74.00
32150
321501483
ref: 32150
PIPE
321501483
€ 82.00
32151
321511359
ref: 32151
PIPE,CYLINDER HEAD
€ 109.00
39060
390601116
ref: 39060
RADIATOR
€ 794.50
39062
390621276
ref: 39062
HOSE-COOLING,PUMP-CYL
390621276
€ 24.50
39062A
390621285
ref: 39062A
HOSE COOLING
€ 18.00
39062B
390621377
ref: 39062B
HOSE-COOLING,RADIATOR
390621377
€ 27.00
39062C
390621531
ref: 39062C
HOSE-COOLING,THERMO-R
390621531
€ 27.00
39062D
390621533
ref: 39062D
HOSE-COOLING,OVERFLOW
390621533
€ 15.50
39062E
390621542
ref: 39062E
HOSE-COOLING,HEAD-THE
390621542
€ 39.50
39192
391921011
ref: 39192
PIPE-WATER,PUMP-CYLIN
391921011
€ 56.00
39192A
391921031
ref: 39192A
PIPE-WATER,CYLINDER
391921031
€ 118.00
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43078
430781131
ref: 43078
RESERVOIR
430781131
€ 39.50
49016
490161165
ref: 49016
COVER-SEAL
490161165
€ 31.00
49016A
490161166
ref: 49016A
COVER-SEAL
€ 38.50
49044
490441076
ref: 49044
PUMP-WATER
€ 252.50
49054
490541051
ref: 49054
THERMOSTAT
490541051
€ 44.50
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
490851067
€ 39.50
53044
530441220
ref: 53044
TRIM
530441220
€ 4.50
53044A
530441269
ref: 53044A
TRIM,RADIATOR PLATE,O
530441269
€ 23.00
59502
595021105
ref: 59502
FAN-ASSY
595021105
€ 567.50
92002
920021392
ref: 92002
BOLT,6X22
920021392
€ 3.00
92002A
920021571
ref: 92002A
BOLT,6X16
920021571
€ 4.00
92009
920091261
ref: 92009
SCREW,TAPPING,6MM
920091261
€ 2.00
92009A
920091663
ref: 92009A
SCREW
920091663
€ 2.50
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
92022
92022304
ref: 92022
WASHER,PLAIN
92022304
€ 2.50
92022A
920221976
ref: 92022A
WASHER,6.2X6.2X1.0
920221976
€ 4.00
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
920271134
€ 7.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
130A
130G0612
ref: 130A
BOLT,FLANGE,6X12
130G0612
€ 0.50
130B
130J0616
ref: 130B
BOLT-FLANGED,6X16
130J0616
€ 1.50
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132A
132J0640
ref: 132A
BOLT-FLANGED-SMALL
132J0640
€ 3.00
132B
132J0825
ref: 132B
BOLT-FLANGED-SMALL
132J0825
€ 2.50
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
671
671B2525
ref: 671
O RING,25MM
671B2525
€ 3.00
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551282
ref: 92055A
RING-O
920551282
€ 3.00
92055B
920551423
ref: 92055B
RING-O,WATER PUMP INS
920551423
€ 6.00
92055C
920551424
ref: 92055C
RING-O,33.2X2.4
920551424
€ 4.00
92075
920751446
ref: 92075
DAMPER,SIDE COVER
920751446
€ 3.00
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92160
921601007
ref: 92160
DAMPER
921601007
€ 3.50
92170
921701284
ref: 92170
CLAMP,CABLE
921701284
€ 7.50
92170A
921701391
ref: 92170A
CLAMP,COOLING HOSE
€ 2.50
