Genuine ZX Kawasaki Parts delivered quickly!


CARBURETOR PARTS

ZX1100D1 NINJAZX11 1993 USA CALIFORNIA CANADA

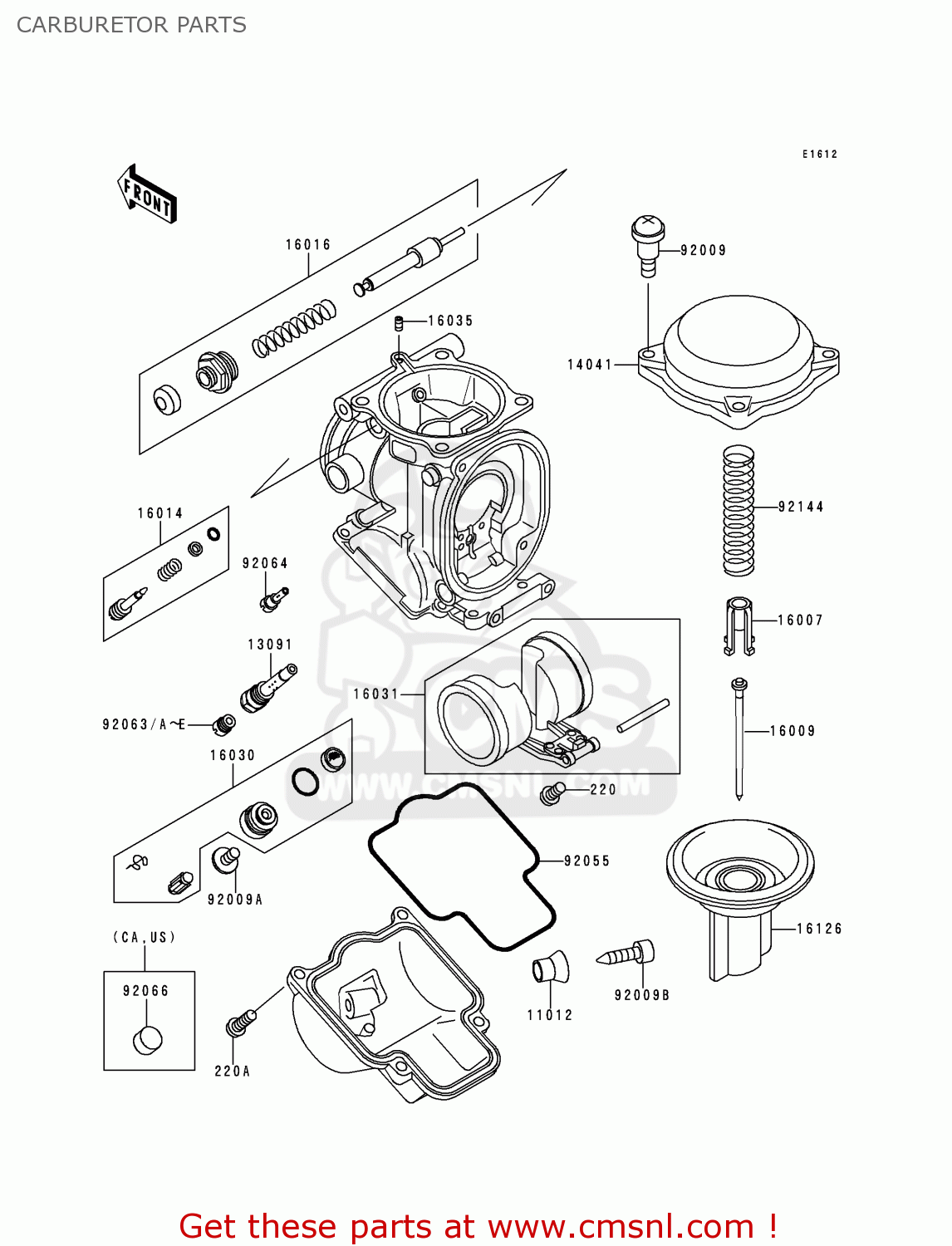

Carburetor parts diagram ZX1100D1 NINJAZX11 1993 USA CALIFORNIA CANADA

CARBURETOR PARTS ZX1100D1 NINJAZX11 1993 USA CALIFORNIA CANADA
CARBURETOR PARTS ZX1100D1 NINJAZX11 1993 USA CALIFORNIA CANADA
CARBURETOR PARTS ZX1100D1 NINJAZX11 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
220
220D0408
ref: 220
SCREW-PAN-CROS
220D0408
€ 0.50
220A
220D0414
ref: 220A
SCREW-PAN-CROS
220D0414
€ 2.00
11012
110121675
ref: 11012
CAP,DRAIN SCREW
110121675
€ 6.00
13091
130911698
ref: 13091
HOLDER,NEEDLE JET
130911698
€ 27.50
14041
140411100
ref: 14041
COVER-COMP,MIXING
140411100
€ 61.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091786
ref: 16009
NEEDLE-JET,N96X
160091786
€ 26.50
16014
160141086
ref: 16014
SCREW-PILOT AIR
160141086
€ 24.00
16016
160161090
ref: 16016
PLUNGER,STARTER
160161090
€ 46.50
16030
160301077
ref: 16030
VALVE-FLOAT
160301077
€ 77.50
16031
160311080
ref: 16031
FLOAT
160311080
€ 40.50
16035
160351055
ref: 16035
JET-AIR,LEAK
160351055
€ 10.00
16126
161261247
ref: 16126
VALVE,VACUUM
161261247
€ 167.50
92009
920091549
ref: 92009
SCREW,4X4.4
920091549
€ 3.00
92009A
920091550
ref: 92009A
SCREW,4X8
920091550
€ 2.50
92009B
920091551
ref: 92009B
SCREW,DRAIN
920091551
€ 6.50
92055
920551426
ref: 92055
RING-O,FLOAT CHAMBER
920551426
€ 13.00
92063
920631331
ref: 92063
JET-MAIN,#152
920631331
€ 9.50
92063A
920631332
ref: 92063A
JET-MAIN,#155
920631332
€ 9.50
92063B
920631344
ref: 92063B
JET-MAIN,#158
920631344
€ 9.50
92063C
920631345
ref: 92063C
JET-MAIN,#160
920631345
€ 9.50
92063D
920631346
ref: 92063D
JET-MAIN,#162
€ 10.00
92063E
920631347
ref: 92063E
JET-MAIN,#165
920631347
€ 10.50
92064
920641119
ref: 92064
JET-PILOT,#38
920641119
€ 12.00
92066
920661051
ref: 92066
CAUS
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92144
921441535
ref: 92144
SPRING,THROTTLE VALVE
921441535
€ 13.00
