Genuine ZX Kawasaki Parts delivered quickly!


SIDE COVER/CHAIN CASE

ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

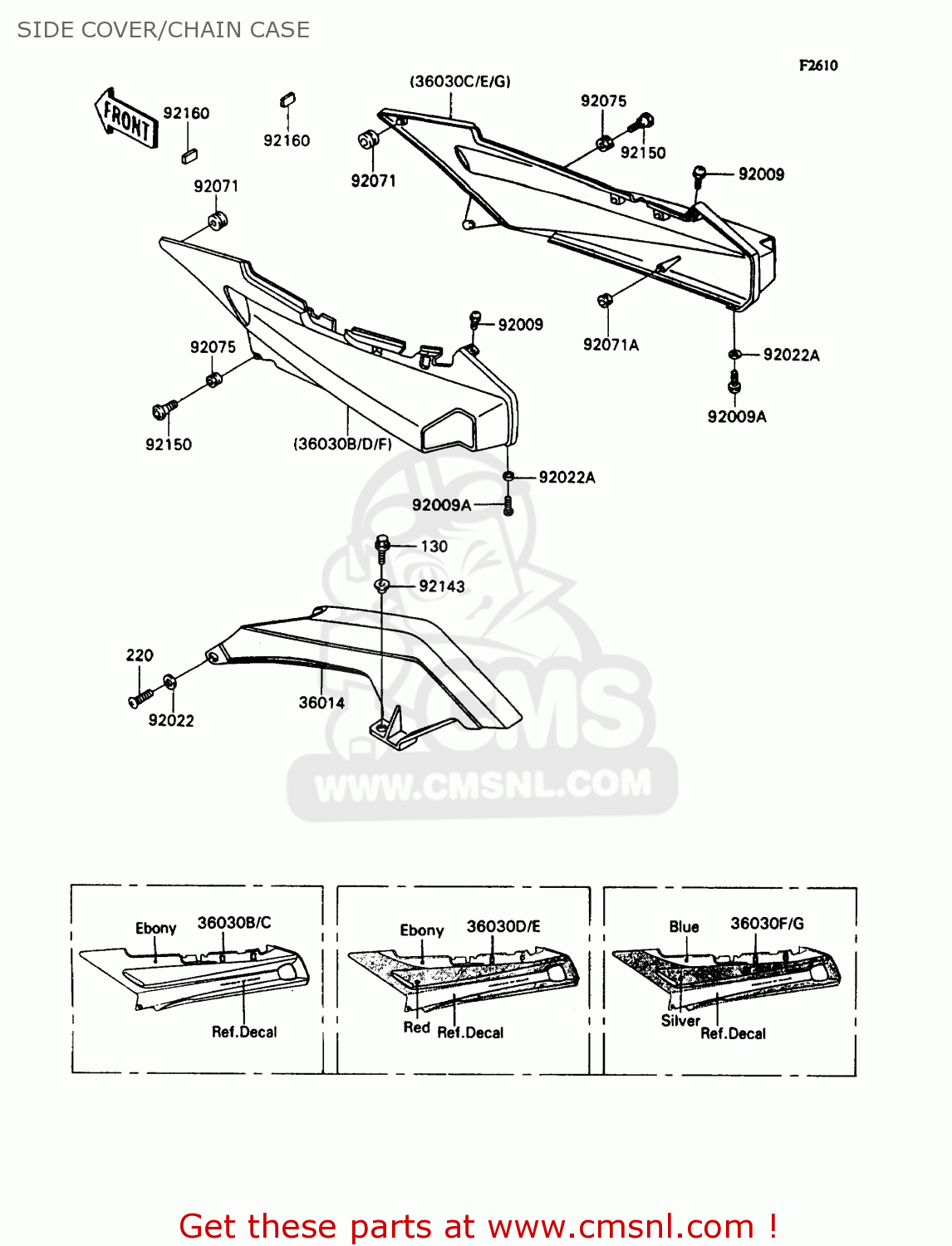

Side cover/chain case diagram ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

SIDE COVER/CHAIN CASE ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
SIDE COVER/CHAIN CASE ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
SIDE COVER/CHAIN CASE ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130J0614
ref: 130
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
220
220C0616
ref: 220
SCREW-PAN-CROS,6X12,B
€ 2.50
36014
360141170
ref: 36014
CASE-CHAIN
€ 57.00
36030B
360305033H8
ref: 36030B
AREUFGFRGRNRSDSTUK
COVER-SIDE,LH,EBONY
360305033H8
€ 334.00
36030C
360305034H8
ref: 36030C
AREUFGFRGRNRSDSTUK
COVER-SIDE,RH,EBONY
€ 334.00
36030D
360305035J3
ref: 36030D
AREUFGGRITNRSPSTUK
COVER-SIDE,LH,EBONY/R
€ 313.50
36030E
360305036J3
ref: 36030E
AREUFGGRITNRSPSTUK
COVER-SIDE,RH,EBONY/R
€ 313.50
36030F
360305037HV
ref: 36030F
EUFRGRITNRSD
COVER-SIDE,LH,SILVER/
€ 313.50
36030G
360305038HV
ref: 36030G
EUFRGRITNRSD
COVER-SIDE,RH,SILVER/
€ 313.50
92009
920091181
ref: 92009
SCREW,6X18
920091181
€ 2.00
92009A
920091656
ref: 92009A
SCREW
920091656
€ 2.50
92022
920221346
ref: 92022
WASHER,6.5X20X1.6,BLA
920221346
€ 0.50
92022A
920221521
ref: 92022A
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92071
92071056
ref: 92071
GROMMET
92071056
€ 2.50
92071A
920711131
ref: 92071A
GROMMET
920711131
€ 5.00
92075
920751634
ref: 92075
DAMPER
920751634
€ 3.00
92143
921431088
ref: 92143
COLLAR,L=6.6
921431088
€ 3.50
92150
921501154
ref: 92150
BOLT,SOCKET,6MM
921501154
€ 5.00
92160
921601190
ref: 92160
DAMPER
921601190
€ 2.50
