REAR CALIPER

ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

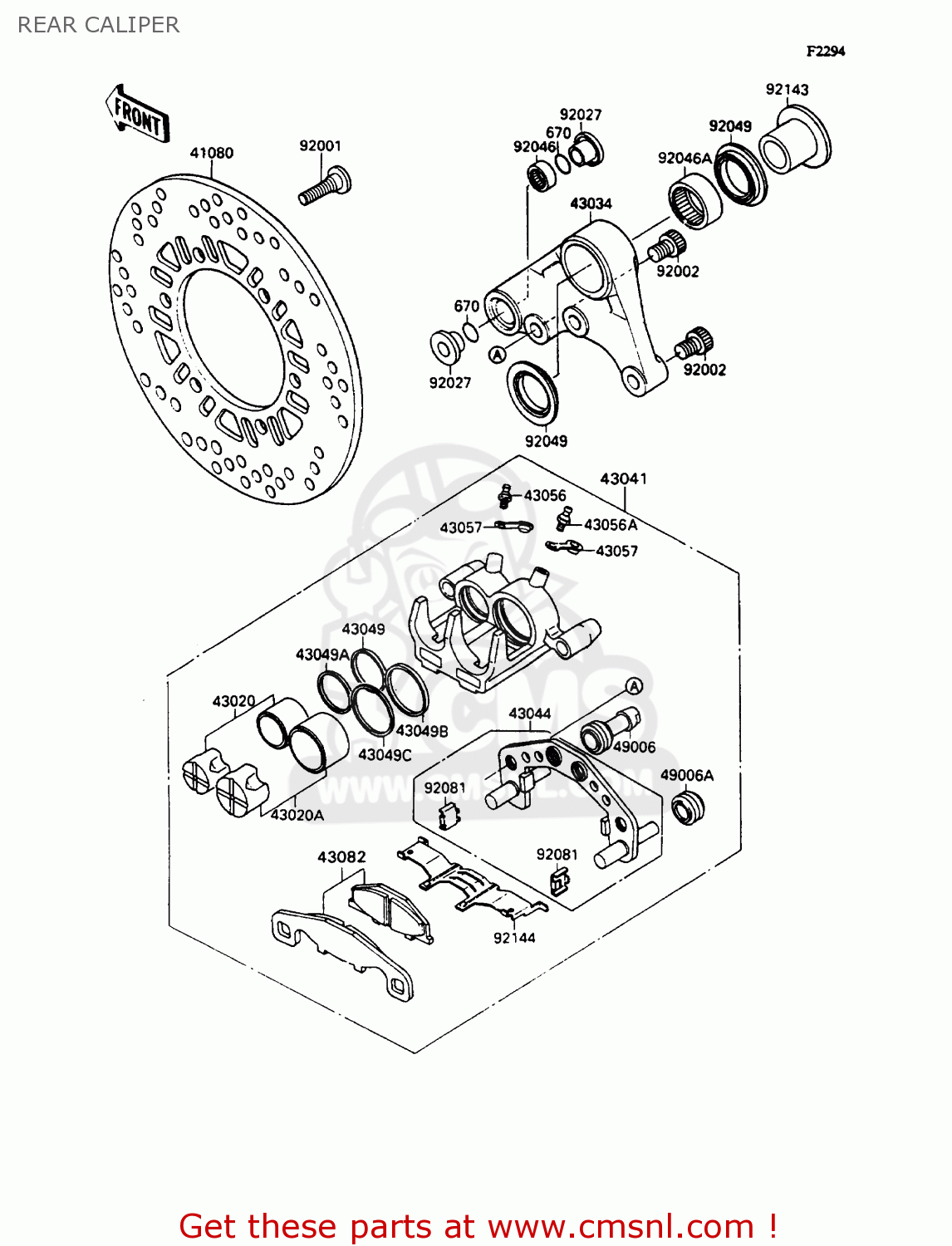

Rear caliper diagram ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

REAR CALIPER ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
REAR CALIPER ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
REAR CALIPER ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
670
670B2011
ref: 670
O RING,11MM
670B2011
€ 1.00
41080
410801219CM
ref: 41080
DISC,RR,SILVER NO.1
410801219CM
€ 219.00
43020
430201068
ref: 43020
PISTON-COMP-BRAKE
430201068
€ 49.00
43020A
430201069
ref: 43020A
PISTON-COMP-BRAKE
430201069
€ 49.00
43034
430341090GD
ref: 43034
HOLDER-BRAKE,REAR CAL
€ 122.50
43041
430411433FE
ref: 43041
CALIPER-ASSY,RR,M.F.G
430411433FE
€ 491.50
43044
430441067
ref: 43044
HOLDER-COMP-CALIPER
430441067
€ 126.00
43049
430491054
ref: 43049
PACKING,PISTON SEAL (NAS)
430491054
€ 9.00
43049A
430491055
ref: 43049A
PACKING,PISTON (NAS)
430491055
€ 7.50
43049B
430491056
ref: 43049B
PACKING,PISTON SEAL (NAS)
430491056
€ 9.00
43049C
430491057
ref: 43049C
PACKING,PISTON (NAS)
430491057
€ 8.00
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43056A
430561054
ref: 43056A
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
43057003
€ 3.00
43082
430821123
ref: 43082
PAD-ASSY-BRAKE (NAS)
430821123
€ 42.50
49006
490061094
ref: 49006
BOOT,CALIPER
490061094
€ 8.00
49006A
490061095
ref: 49006A
BOOT,CALIPER
490061095
€ 4.50
92001
920011951
ref: 92001
BOLT,SOCKET,8X30
920011951
€ 3.00
92002
920021713
ref: 92002
BOLT,SOCKET,10X17
920021713
€ 4.50
92027
920271040
ref: 92027
COLLAR,L=11.5
920271040
€ 12.50
92046
920461009
ref: 92046
BEARING-NEEDLE,HK1216
920461009
€ 14.50
92046A
920461111
ref: 92046A
BEARING-NEEDLE,BM2817
920461111
€ 21.50
92049
920491181
ref: 92049
SEAL-OIL
920491181
€ 7.50
92081
920811661
ref: 92081
SPRING,PAD STOPPER
920811661
€ 7.50
92143
921431043
ref: 92143
COLLAR,L=35
921431043
€ 30.00
92144
921441070
ref: 92144
SPRING,PAD
921441070
€ 18.50
