ELECTRICAL EQUIPMENT

ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

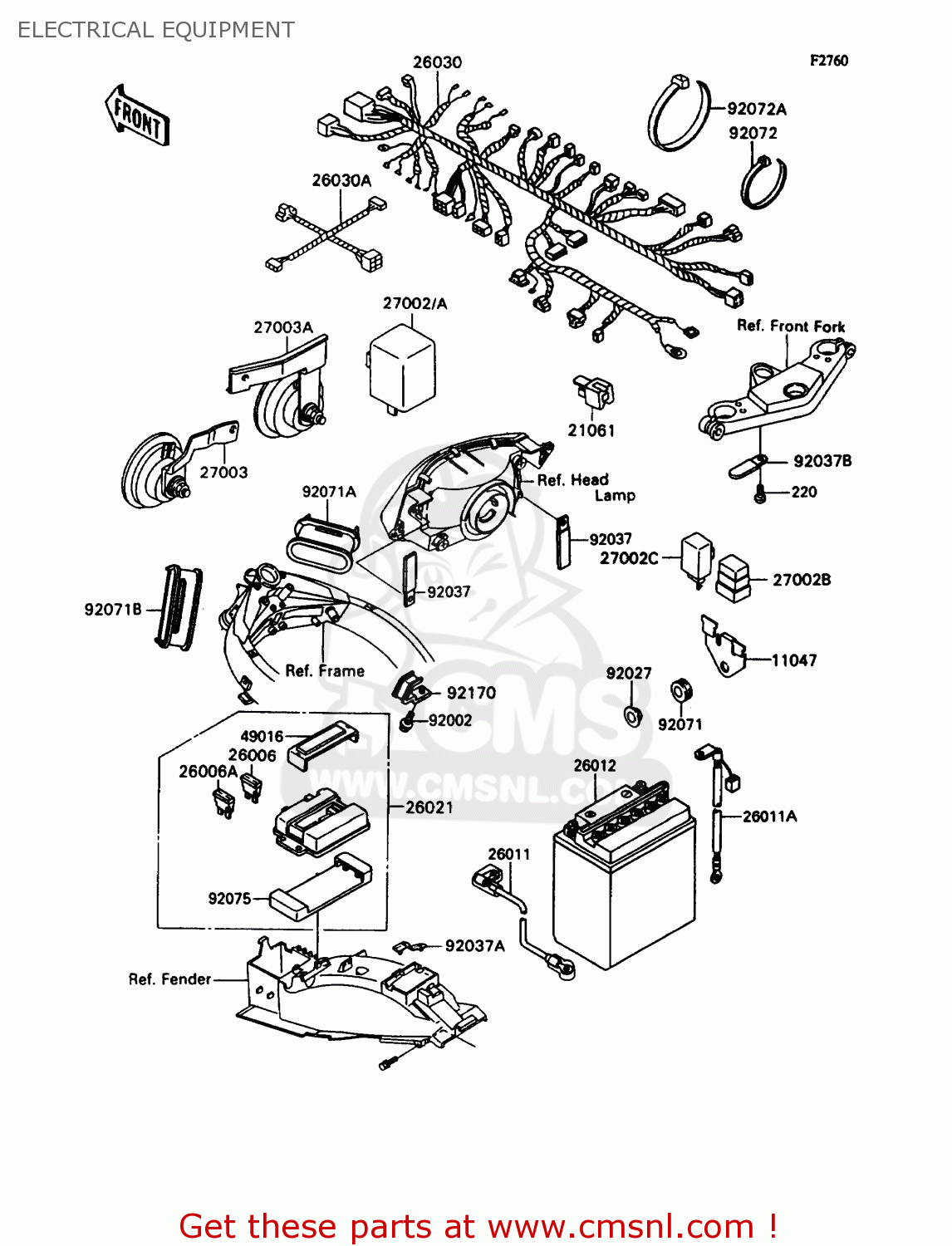

Electrical equipment diagram ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

ELECTRICAL EQUIPMENT ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
ELECTRICAL EQUIPMENT ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
ELECTRICAL EQUIPMENT ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
220
220C0510
ref: 220
SCREW-PAN-CROS
220C0510
€ 2.50
11047
110471111
ref: 11047
BRACKET,RELAY
110471111
€ 8.00
21061
210611003
ref: 21061
RECTIFIER
210611003
€ 25.00
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111464
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 19.50
26011A
260111477
ref: 26011A
WIRE-LEAD,BATTERY(-)
260111477
€ 18.50
26012
260121224
ref: 26012
BATTERY,12V 15AH,FB14
€ 88.00
26021
260211081
ref: 26021
JUNCTION, BOX
€ 106.50
26030
260301015
ref: 26030
HARNESS,MAIN
260301015
€ 211.50
26030A
260301016
ref: 26030A
HARNESS,FR
€ 55.50
27002
270021053
ref: 27002
AREUFRGRITNRSPSTUK
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27002A
270021060
ref: 27002A
FGSD
RELAY-ASSY,TURN SIGNA
270021060
€ 65.50
27002B
270021072
ref: 27002B
RELAY-ASSY,FUEL SENSO
270021072
€ 40.00
27002C
270021073
ref: 27002C
RELAY-ASSY,FUEL LAMP
270021073
€ 35.00
27003
270031320
ref: 27003
HORN,LH
270031320
€ 58.50
27003A
270031332
ref: 27003A
HORN,RH
270031332
€ 42.50
49016
490161124
ref: 49016
COVER-SEAL,FUSE
490161124
€ 6.00
92002
920021628
ref: 92002
BOLT,6X10
€ 3.00
92027
92027153
ref: 92027
COLLAR
92027153
€ 4.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
920371163
€ 4.50
92037B
920371539
ref: 92037B
CLAMP,L=45
920371539
€ 3.00
92071
920711115
ref: 92071
GROMMET,RESERVOIR TAN
920711115
€ 3.50
92071A
920711170
ref: 92071A
GROMMET,HARNESS,RH
€ 12.00
92071B
920711180
ref: 92071B
GROMMET,HARNESS,LH
€ 13.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721197
ref: 92072A
BAND
920721197
€ 5.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
92170
921701024
ref: 92170
CLAMP,HARNESS
921701024
€ 3.00
