COWLING LOWERS

ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

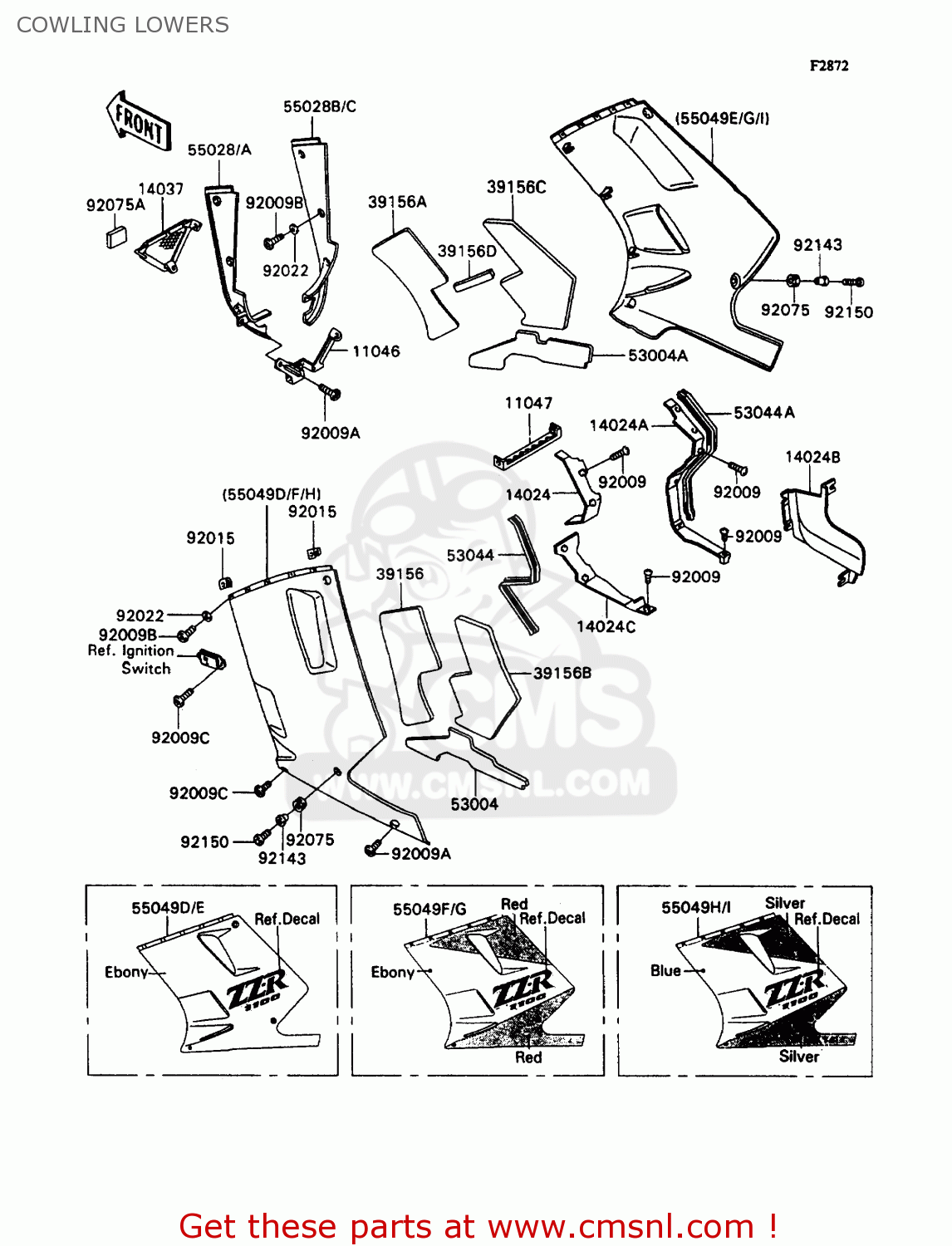

Cowling lowers diagram ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

COWLING LOWERS ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
COWLING LOWERS ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
COWLING LOWERS ZX1100C3 ZZR1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11046
110461928
ref: 11046
BRACKET,LWR,LH
€ 18.50
11047
110471080
ref: 11047
BRACKET,LWR COWLING
110471080
€ 10.50
14024
140241870
ref: 14024
COVER,HEAT GUARD,LH,U
140241870
€ 26.50
14024A
140241871
ref: 14024A
COVER,HEAT GUARD,RH
140241871
€ 23.50
14024B
140241959
ref: 14024B
COVER,HEAT GUARD,RH
140241959
€ 27.00
14024C
140241966
ref: 14024C
COVER,HEAT GUARD,LH,L
140241966
€ 15.00
14037
140371136
ref: 14037
SCREEN,COWLING
140371136
€ 18.50
39156
391561198
ref: 39156
PAD,LWR COWLING,LH,FR
391561198
€ 10.50
39156A
391561199
ref: 39156A
PAD,LWR COWLING,RH,FR
391561199
€ 11.50
39156B
391561200
ref: 39156B
PAD,LWR COWLING,LH,RR
391561200
€ 12.50
39156C
391561201
ref: 39156C
PAD,LWR COWLING,RH,RR
391561201
€ 14.00
39156D
391561221
ref: 39156D
PAD,LWR COWLING,RH,CN
391561221
€ 3.00
53004
530041074
ref: 53004
MAT,LWR COWLING,LH,LW
530041074
€ 59.00
53004A
530041075
ref: 53004A
MAT,LWR COWLING,RH,LW
530041075
€ 75.50
53044
530441213
ref: 53044
TRIM,L=300
530441213
€ 15.00
53044A
530441238
ref: 53044A
TRIM,L=225
530441238
€ 8.50
55028
550281240GW
ref: 55028
EUFRGRITNRSD
COWLING,FR,LH,M.S.BLU
€ 76.00
55028A
550281240H8
ref: 55028A
COWLING,FR,LH,EBONY
550281240H8
€ 72.00
55028B
550281241GW
ref: 55028B
EUFRGRITNRSD
COWLING,FR,RH,M.S.BLU
€ 67.50
55028C
550281241H8
ref: 55028C
COWLING,FR,RH,EBONY
550281241H8
€ 67.50
55049D
550495068H8
ref: 55049D
AREUFGFRGRNRSDSTUK
COWLING.,LWR,LH,EBONY
550495068H8
€ 464.00
55049E
550495069H8
ref: 55049E
AREUFGFRGRNRSDSTUK
COWLING.,LWR,RH,EBONY
€ 464.00
55049F
550495071J3
ref: 55049F
AREUFGGRITNRSPSTUK
COWLING.,LWR,LH,EBONY
€ 464.00
55049G
550495072J3
ref: 55049G
AREUFGGRITNRSPSTUK
COWLING.,LWR,RH,EBONY
550495072J3
€ 464.00
55049H
550495074HV
ref: 55049H
EUFRGRITNRSD
COWLING.,LWR,LH,SILVE
€ 464.00
55049I
550495075HV
ref: 55049I
EUFRGRITNRSD
COWLING.,LWR,RH,SILVE
€ 464.00
92009
920091197
ref: 92009
SCREW
920091197
€ 2.50
92009A
920091653
ref: 92009A
SCREW
920091653
€ 2.50
92009B
920091654
ref: 92009B
AR
SCREW
920091654
€ 0.50
92009B
920091654
ref: 92009B
EUFGFRGRITNRSDSPSTUK
SCREW
920091654
€ 0.50
92009C
920091656
ref: 92009C
EUFGFRGRITNRSDSPSTUK
SCREW
920091656
€ 2.50
92009C
920091656
ref: 92009C
AR
SCREW
920091656
€ 2.50
92015
920151798
ref: 92015
NUT
920151798
€ 4.50
92022
920221521
ref: 92022
AR
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92022
920221521
ref: 92022
EUFGFRGRITNRSDSPSTUK
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92075
920751634
ref: 92075
DAMPER
920751634
€ 3.00
92075A
920751902
ref: 92075A
DAMPER
920751902
€ 3.00
92143
921431226
ref: 92143
COLLAR,BLACK
921431226
€ 7.50
92150
921501553
ref: 92150
BOLT,SOCKET,6X18
921501553
€ 4.00
