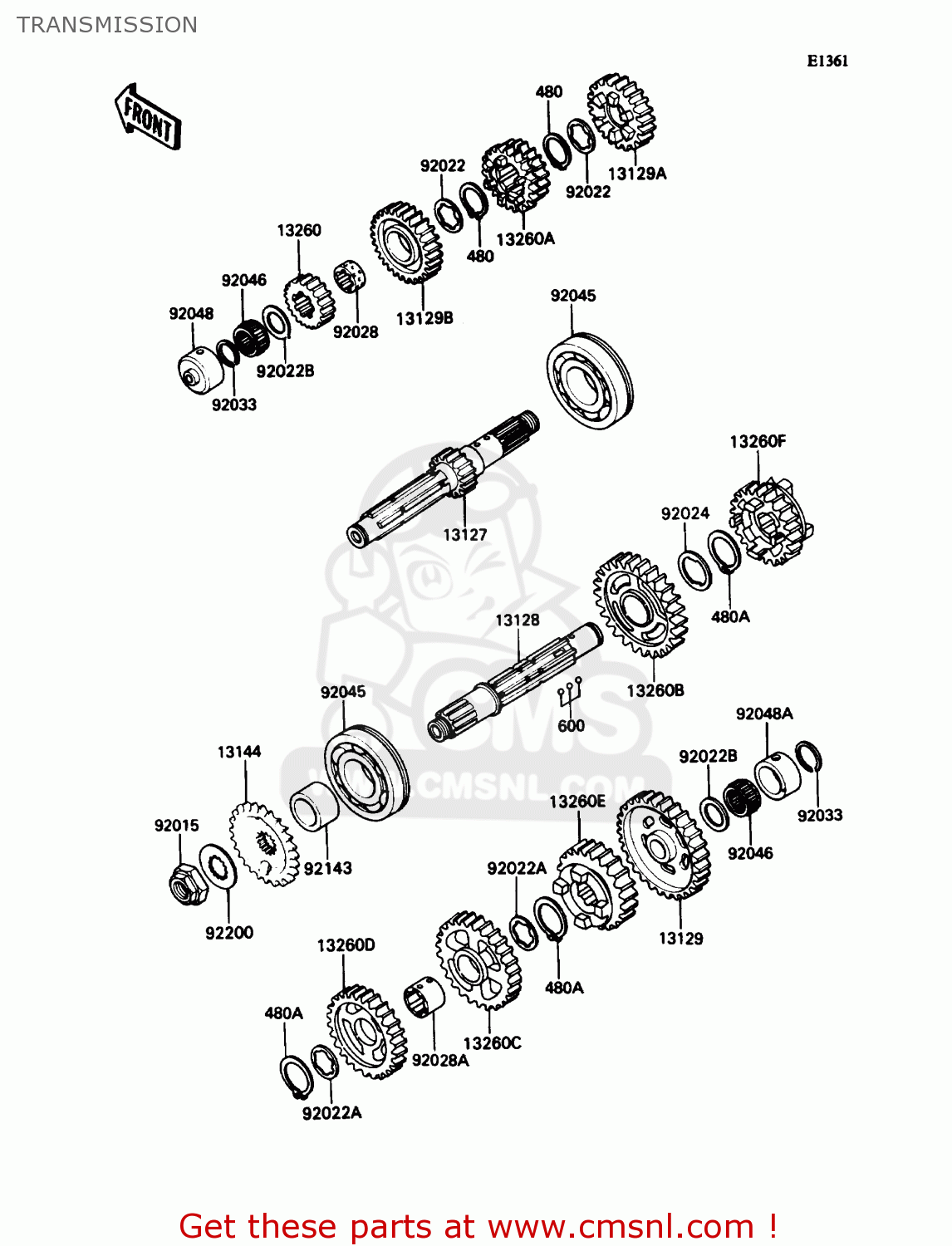

TRANSMISSION

ref

part #

description

quantity

480

480J2800
ref: 480

CIRCLIP-TYPE-C,28MM

€ 3.50

480A

480J2900
ref: 480A

CIRCLIP

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13127

131271196
ref: 13127

SHAFT-TRANSMISSION IN

€ 209.00

13128

131281174
ref: 13128

SHAFT-TRANSMISSION OU

€ 146.50

13129

131291534
ref: 13129

GEAR,OUTPUT LOW,42T

€ 170.00

13129A

131291665
ref: 13129A

GEAR,INPUT 5TH,26T

€ 154.50

13129B

131291666
ref: 13129B

GEAR,INPUT TOP,28T

€ 128.00

13144

131441162
ref: 13144

SPROCKET-OUTPUT,17T

€ 30.50

13260

132601120
ref: 13260

GEAR,INPUT 2ND,19T

€ 42.50

13260A

132601121
ref: 13260A

GEAR,INPUT 3RD&4TH,22

€ 179.50

13260B

132601137
ref: 13260B

GEAR,OUTPUT 2ND,38T

€ 156.50

13260C

132601138
ref: 13260C

GEAR,OUTPUT 3RD,35T

€ 130.00

13260D

132601139
ref: 13260D

GEAR,OUTPUT 4TH,32T

€ 180.00

13260E

132601201
ref: 13260E

GEAR,OUTPUT 5TH,30T

€ 142.50

13260F

132601264
ref: 13260F

GEAR OUTPUT TOP 29T

€ 172.00

92015

920151210
ref: 92015

NUT,20MM

€ 12.00

92022

920221077
ref: 92022

WASHER,LOCK (O.D=35O)

€ 7.50

92022A

920221728
ref: 92022A

WASHER,TOOTHED,28X40X

€ 8.00

92022B

92022212
ref: 92022B

WASHER-PLAIN,22MM

€ 6.50

92024

92024069
ref: 92024

WASHER,TOOTHED,30.5X3

€ 3.50

92028

920281124
ref: 92028

BUSHING,TOP GEAR

€ 31.00

92028A

920281363
ref: 92028A

BUSHING,OUTPUT 3RD&4T

€ 30.50

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92045

920451186
ref: 92045

BEARING-BALL

€ 73.00

92046

92046031
ref: 92046

BEARING-NEEDLE,FWF-22

€ 19.50

92048

920481052
ref: 92048

RACE,INPUT SHAFT

€ 59.50

92048A

920481053
ref: 92048A

RACE,30X38X15

€ 27.50

92143

921431431
ref: 92143

COLLAR

€ 14.50

92200

922001234
ref: 92200

WASHER,TOOTHED,23.9X4

€ 4.00
