Genuine ZX Kawasaki Parts delivered quickly!


CARBURETOR PARTS(015043&NAMI.)

ZX1100C3 ZX11 1992 USA CALIFORNIA CANADA

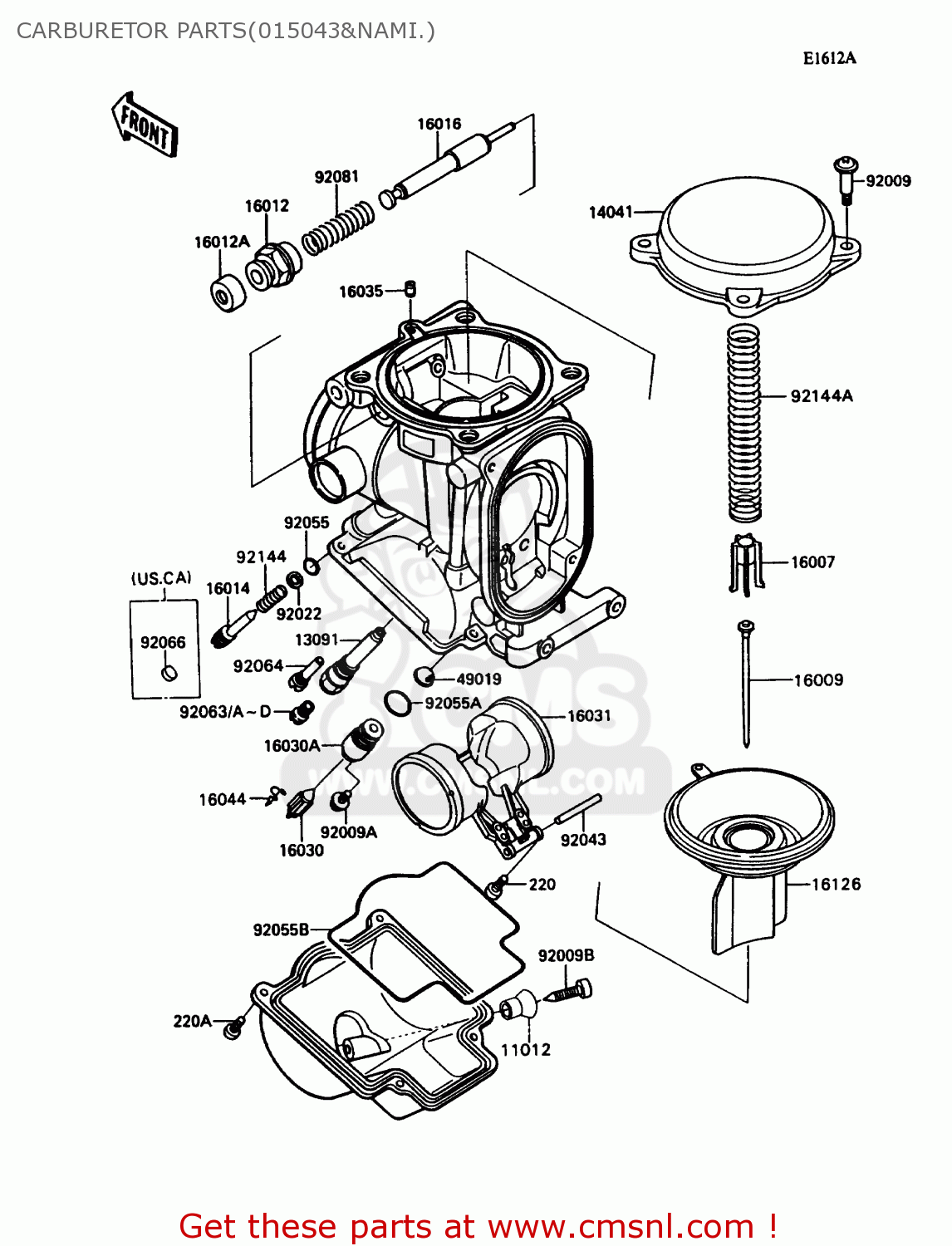

Carburetor parts(015043&nami.) diagram ZX1100C3 ZX11 1992 USA CALIFORNIA CANADA

CARBURETOR PARTS(015043&NAMI.) ZX1100C3 ZX11 1992 USA CALIFORNIA CANADA
CARBURETOR PARTS(015043&NAMI.) ZX1100C3 ZX11 1992 USA CALIFORNIA CANADA
CARBURETOR PARTS(015043&NAMI.) ZX1100C3 ZX11 1992 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
220
220D0408
ref: 220
SCREW-PAN-CROS
220D0408
€ 0.50
11012
110121675
ref: 11012
CAP,DRAIN SCREW
110121675
€ 6.00
13091
130911698
ref: 13091
HOLDER,NEEDLE JET
130911698
€ 27.50
14041
140411100
ref: 14041
COVER-COMP,MIXING
140411100
€ 61.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091621
ref: 16009
NEEDLE-JET,N60U
160091621
€ 26.50
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141064
ref: 16014
SCREW-PILOT AIR
160141064
€ 17.00
16016
160161061
ref: 16016
PLUNGER,STARTER
160161061
€ 30.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16030A
160301069
ref: 16030A
SEAT VALVE,FLOAT
160301069
€ 38.00
16031
160311070
ref: 16031
FLOAT
160311070
€ 40.50
16035
160351055
ref: 16035
JET-AIR,LEAK
160351055
€ 10.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16126
161261247
ref: 16126
VALVE,VACUUM
161261247
€ 167.50
49019
490193707
ref: 49019
FILTER-FUEL,STRAINER
490193707
€ 7.00
92009
920091549
ref: 92009
SCREW,4X4.4
920091549
€ 3.00
92009A
920091550
ref: 92009A
SCREW,4X8
920091550
€ 2.50
92009B
920091551
ref: 92009B
SCREW,DRAIN
920091551
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551425
ref: 92055A
RING-O,VALVE SEAT
920551425
€ 4.50
92055B
920551426
ref: 92055B
RING-O,FLOAT CHAMBER
920551426
€ 13.00
92063
920631013
ref: 92063
MAIN JET,#140
920631013
€ 9.00
92063A
920631014
ref: 92063A
MAIN JET,#135
920631014
€ 9.50
92063B
920631015
ref: 92063B
MAIN JET,#138
920631015
€ 9.50
92063C
920631016
ref: 92063C
MAIN JET,#142
920631016
€ 9.00
92063D
920631017
ref: 92063D
MAIN JET,#145
920631017
€ 9.00
92064
920641119
ref: 92064
JET-PILOT,#38
920641119
€ 12.00
92066
920661051
ref: 92066
CAUS
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811761
ref: 92081
SPRING,STARTER PLUNGE
920811761
€ 6.00
92144
921441349
ref: 92144
SPRING,PILOT AIR SCRE
921441349
€ 6.00
92144A
921441535
ref: 92144A
SPRING,THROTTLE VALVE
921441535
€ 13.00
220A
220D0410
ref: 220A
SCREW-PAN-CROS
220D0410
€ 2.00
