BALANCER
ZX1100C3 ZX11 1992 USA CALIFORNIA CANADA

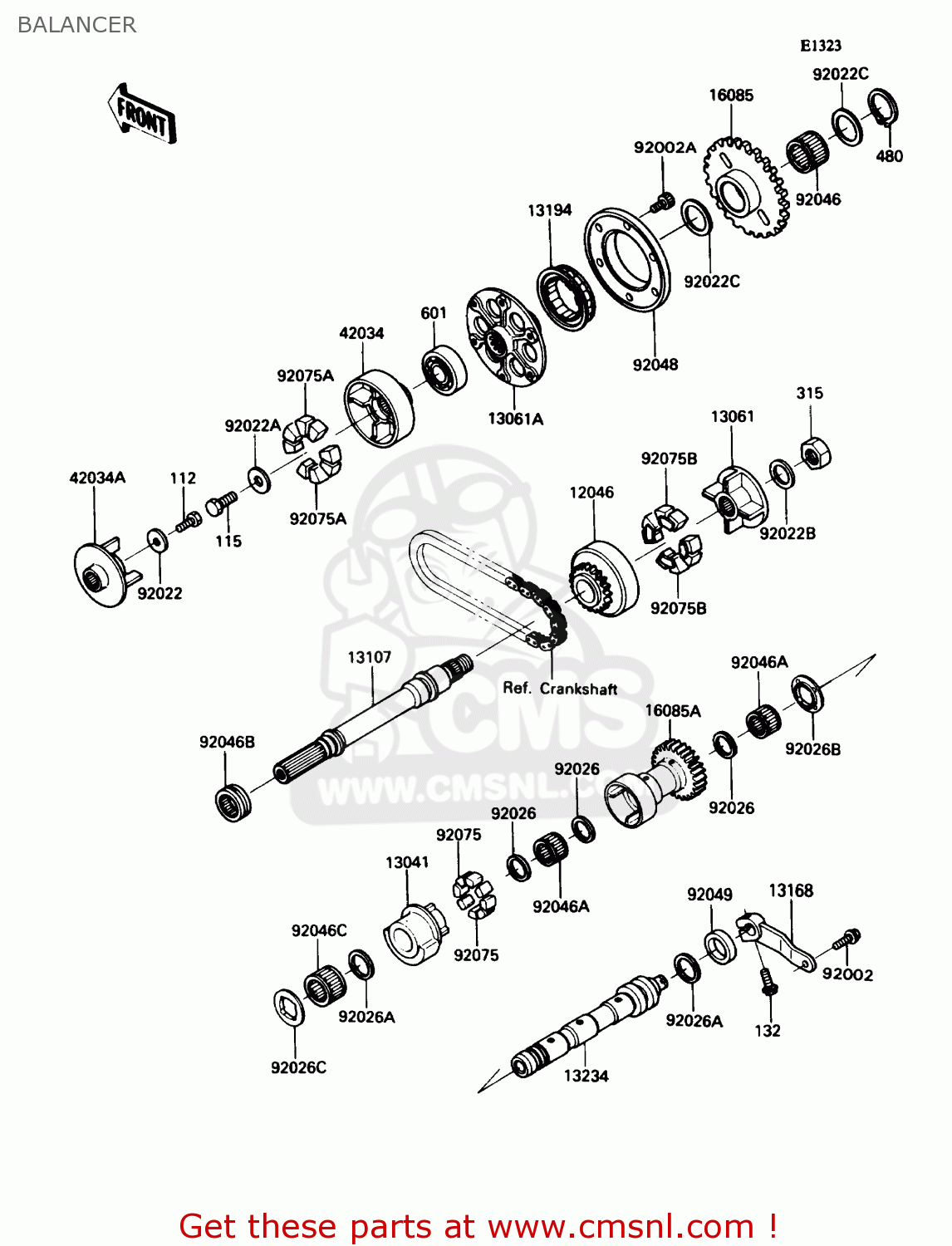

Balancer diagram ZX1100C3 ZX11 1992 USA CALIFORNIA CANADA
BALANCER ZX1100C3 ZX11 1992 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
112
112G0616
ref: 112
BOLT UPSET,6X16
€ 1.00
115
115G0820
ref: 115
BOLT,8X20
€ 2.00
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
315
315G1600
ref: 315
NUT-HEX-FINE
€ 2.50
480
480J2500
ref: 480
CIRCLIP-TYPE-C,25MM
€ 1.00
601
601A6203
ref: 601
BEARING-BALL,#6203
€ 10.50
12046
120461083
ref: 12046
SPROCKET,GENERATOR
€ 89.00
13041
130411092
ref: 13041
BALANCER
€ 122.50
13061
130611183
ref: 13061
BOSS,SPROCKET
€ 57.00
13061A
130611264
ref: 13061A
BOSS
€ 91.00
13107
131071108
ref: 13107
SHAFT
€ 175.50
13168
131681236
ref: 13168
LEVER,BALANCER
€ 20.00
13194
131941086
ref: 13194
CLUTCH-ONEWAY
€ 81.00
13234
132341072
ref: 13234
SHAFT-COMP,BALNCER
€ 179.00
16085
160851173
ref: 16085
GEAR,ONEWAY CLUTCH
€ 100.00
16085A
160851223
ref: 16085A
GEAR,BALANCER
€ 203.00
42034
420341055
ref: 42034
COUPLING
€ 64.00
42034A
420341056
ref: 42034A
COUPLING
€ 58.00
92002
920021439
ref: 92002
BOLT,6X16
€ 3.00
92002A
920021796
ref: 92002A
BOLT,SOCKET,6X12
€ 3.00
92022
920221517
ref: 92022
WASHER,6X19.5X2
€ 1.50
92022A
920221518
ref: 92022A
WASHER,8X22X3
€ 2.50
92022B
920221519
ref: 92022B
WASHER,16X26X2
€ 3.00
92022C
92022225
ref: 92022C
WASHER-THRUST
€ 3.50
92026
920261213
ref: 92026
SPACER,21.3X24.3X1.5
€ 4.00
92026A
920261223
ref: 92026A
SPACER,21.3X26X1
€ 4.50
92026B
920261265
ref: 92026B
SPACER
€ 29.50
92026C
920261271
ref: 92026C
SPACER
€ 29.50
92046
920461022
ref: 92046
BEARING-NEEDLE,K25302
€ 24.50
92046A
920461105
ref: 92046A
BEARING-NEEDLE,K21X25
€ 23.50
92046B
920461109
ref: 92046B
BEARING-NEEDLE,RNA490
€ 48.50
92046C
920461155
ref: 92046C
BEARING-NEEDLE
€ 28.00
92048
920481068
ref: 92048
RACE,ONEWAY CLUTCH
€ 58.50
92049
920491174
ref: 92049
SEAL-OIL,S192705
€ 6.00
92075
920751709
ref: 92075
DAMPER,BALANCER
€ 3.50
92075A
920751790
ref: 92075A
DAMPER,COUPLING
€ 6.50
92075B
920751810
ref: 92075B
DAMPER,COUPLING
€ 6.50
