COWLING
ZX1100C3 ZX11 1992 USA CALIFORNIA CANADA

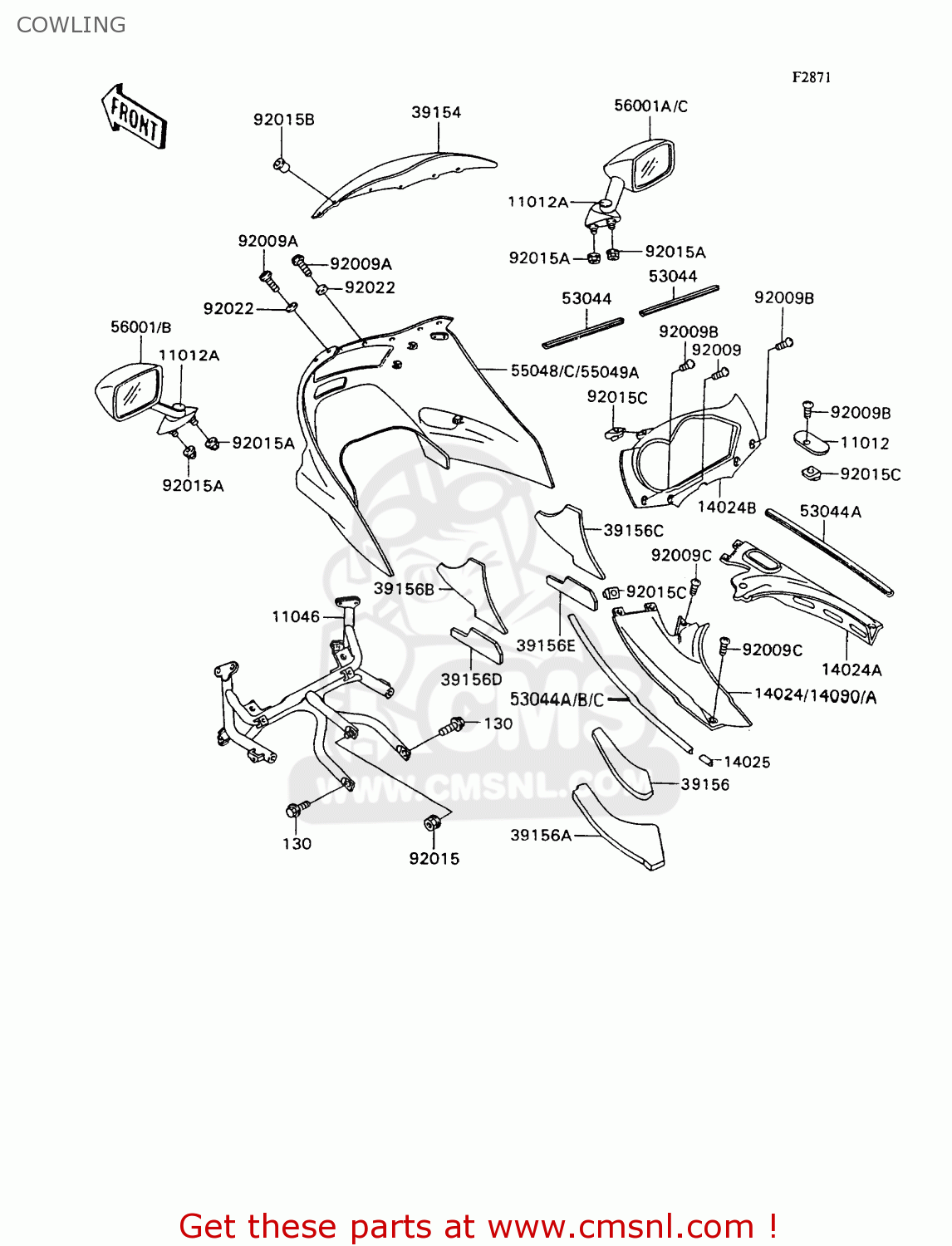

Cowling diagram ZX1100C3 ZX11 1992 USA CALIFORNIA CANADA
COWLING ZX1100C3 ZX11 1992 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121742
ref: 11012
CAP,INNER COWLING,RH
€ 7.50
11012A
1101217516Z
ref: 11012A
CAP,MIRROR,BLACK
€ 2.50
11046
110461892
ref: 11046
BRACKET,UPP COWLING
€ 202.00
14024A
140241869
ref: 14024A
COVER,INNER COWLING,R
€ 49.00
14024B
140241939
ref: 14024B
COVER,INNER COWLING,F
€ 48.50
14090
140901123
ref: 14090
COVER,INNER COWLING,L
€ 57.50
39154
391541108
ref: 39154
WINDSHIELD
€ 167.00
39156
391561192
ref: 39156
PAD,INNER COWLING COV
€ 7.50
39156A
391561193
ref: 39156A
PAD,INNER COWLING COV
€ 11.50
39156B
391561194
ref: 39156B
PAD,UPP COWLING,LH,UP
€ 10.00
39156C
391561195
ref: 39156C
PAD,UPP COWLING,RH,UP
€ 10.50
39156D
391561196
ref: 39156D
PAD,UPP COWLING,LH,LW
€ 7.00
39156E
391561197
ref: 39156E
PAD,UPP COWLING,RH,LW
€ 7.50
53044
530441106
ref: 53044
TRIM,COWLING COVER
€ 22.50
53044A
530441240
ref: 53044A
TRIM,L=760
€ 15.50
53044B
530441247
ref: 53044B
TRIM,L=810
€ 13.50
55049A
550495061H8
ref: 55049A
COWLING.,UPP,EBONY
€ 875.50
56001B
560011390H8
ref: 56001B
MIRROR-ASSY,LH,EBONY
€ 130.00
130
130J0812
ref: 130
BOLT-FLANGED
€ 0.50
56001C
560011391H8
ref: 56001C
MIRROR-ASSY,RH,EBONY
€ 136.00
92009
920091182
ref: 92009
SCREW,5X12,BLACK
€ 1.50
92009A
920091530
ref: 92009A
SCREW,6X10
€ 2.50
92009B
920091653
ref: 92009B
SCREW
€ 2.50
92009C
920091654
ref: 92009C
SCREW
€ 0.50
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151233
ref: 92015A
NUT,FLANGED,6MM
€ 3.50
92015B
920151757A
ref: 92015B
NUT,5MM
€ 5.00
92015C
920151798
ref: 92015C
NUT
€ 4.50
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
€ 2.50
