MUFFLER (ZX1100-A2/A3)

ZX1100A3 1985 EUROPE UK FR GR IT NR ST

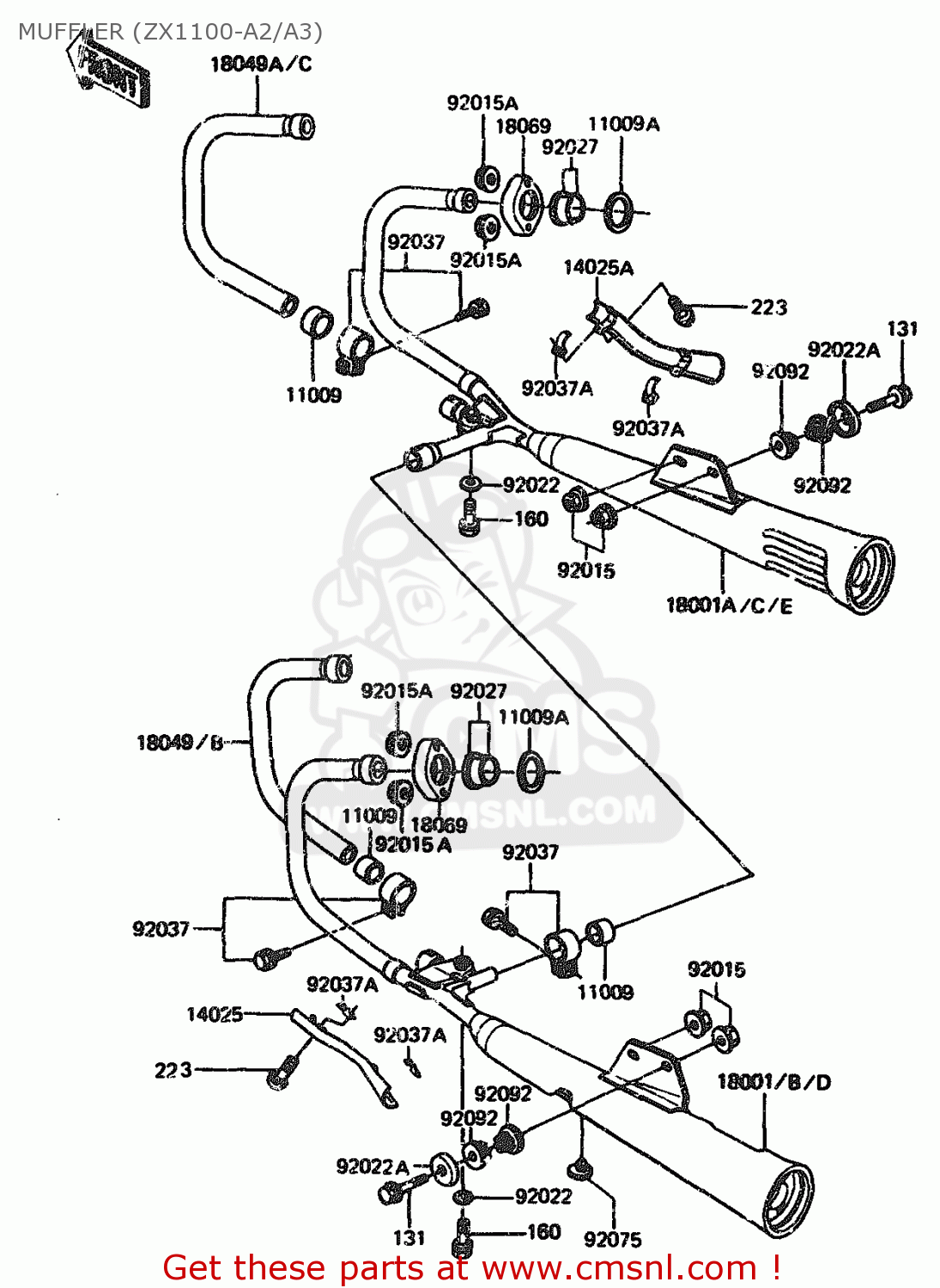

Muffler (zx1100-a2/a3) diagram ZX1100A3 1985 EUROPE UK FR GR IT NR ST

MUFFLER (ZX1100-A2/A3) ZX1100A3 1985 EUROPE UK FR GR IT NR ST
MUFFLER (ZX1100-A2/A3) ZX1100A3 1985 EUROPE UK FR GR IT NR ST
MUFFLER (ZX1100-A2/A3) ZX1100A3 1985 EUROPE UK FR GR IT NR ST
prices are in EUR
ref
part #
description
quantity
11009
110091002
ref: 11009
GASKET,EXH PIPE CONT (MCA)
110091002
€ 20.50
11009A
18067018
ref: 11009A
GASKET-EXHAUST PIPE
18067018
€ 7.00
14025
140251667
ref: 14025
COVER
€ 17.00
14025A
140251648
ref: 14025A
COVER,MUFFLER,RH,BLAC
€ 71.00
18001
180011509
ref: 18001
EU, FR, GR, NR, UK,
MUFFLER,LH
€ 548.00
18001A
180011510
ref: 18001A
EU, FR, GR, NR, UK,
MUFFLER,RH
€ 548.00
18001D
180011513
ref: 18001D
SD
MUFFLER,LH
€ 548.00
18001E
180011514
ref: 18001E
ST
MUFFLER,RH
€ 608.00
18049
180491285
ref: 18049
EU, FR, GR, NR, UK,
PIPE-EXHAUST,#2
€ 139.00
18049A
180491286
ref: 18049A
EU, FR, GR, NR, UK,
PIPE-EXHAUST,#3
€ 139.00
18049B
180491289
ref: 18049B
ST
PIPE-EXHAUST,#2
€ 97.00
18049C
180491890
ref: 18049C
ST
PIPE-EXHAUST
€ 148.00
18069
180691019
ref: 18069
HOLDER-EXHAUST PIPE,B
180691019
€ 20.50
92015
920151180
ref: 92015
NUT,FLANGED,10MM,BLAC
920151180
€ 2.50
92015A
920151380
ref: 92015A
NUT,LOCK,8MM
920151380
€ 3.00
92022
920221022
ref: 92022
WASHER,10.5X22X4.5
920221022
€ 3.00
92022A
920221355
ref: 92022A
WASHER
920221355
€ 3.50
92027
920271457
ref: 92027
COLLAR,EXHAUST PIPE,B
920271457
€ 3.50
92037
920371290
ref: 92037
CLAMP,CARBURETOR
920371290
€ 4.50
92037A
920371319
ref: 92037A
CLAMP,MUFFLER COVER
920371319
€ 7.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
92075015
€ 3.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
920921013
€ 11.50
131
131J1055
ref: 131
BOLT-FLANGED,10X55,BL
131J1055
€ 4.00
160
160C1070
ref: 160
BOLT-FINE-WS
€ 6.00
223
223C0620
ref: 223
SCREW-PAN-WS-CROS
223C0620
€ 2.50
