CLUTCH
ZX1100A3 1985 EUROPE UK FR GR IT NR ST

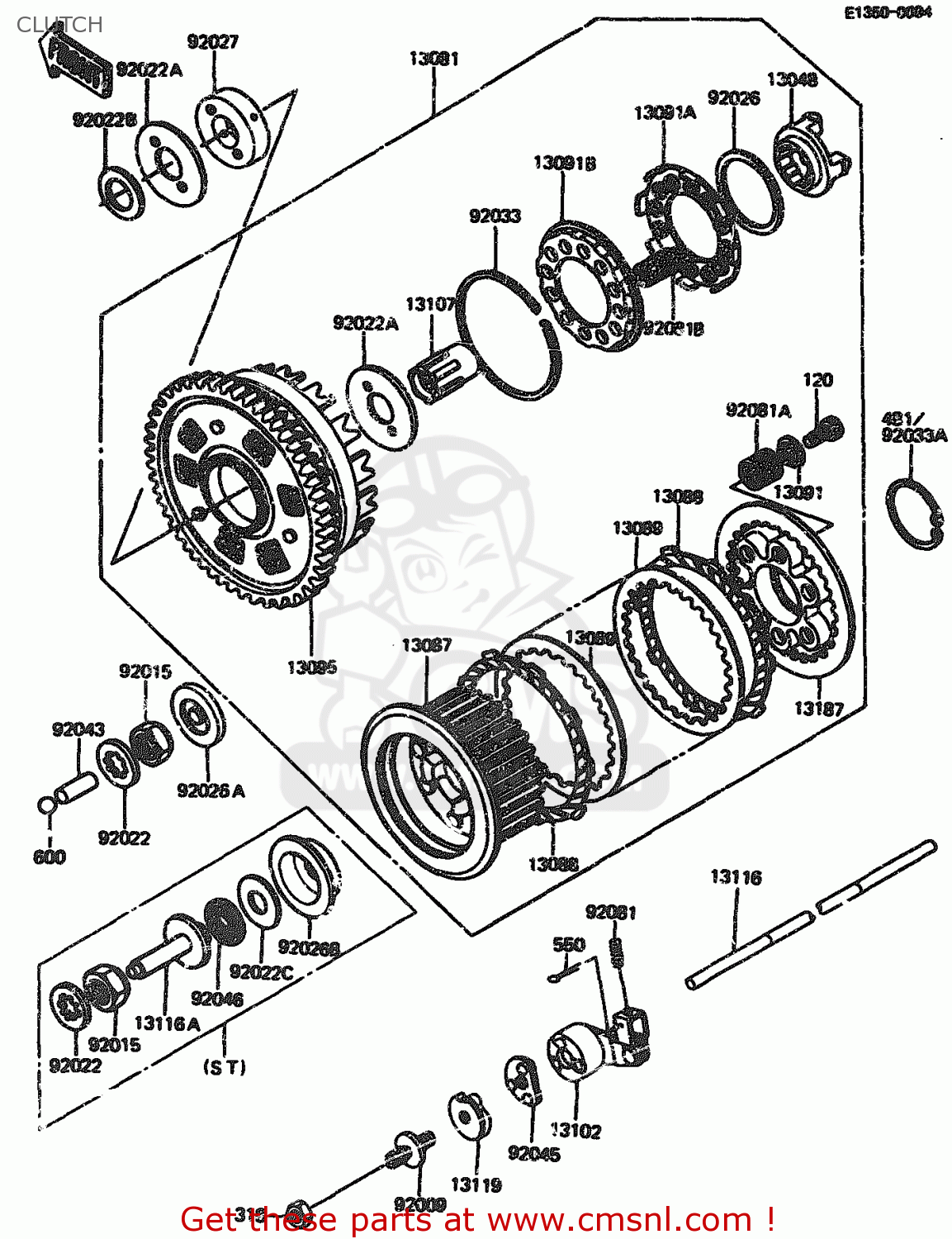

Clutch diagram ZX1100A3 1985 EUROPE UK FR GR IT NR ST
CLUTCH ZX1100A3 1985 EUROPE UK FR GR IT NR ST
×
prices are in EUR
ref
part #
description
quantity
13048
130481007
ref: 13048
CAM-DAMPER
€ 61.50
13081
130811151
ref: 13081
CLUTCH-ASSY
€ 374.50
13087
130871009
ref: 13087
HUB-CLUTCH
€ 155.50
13088
130881051
ref: 13088
PLATE-FRICTION (NAS)
€ 14.00
13089
130891004
ref: 13089
PLATE,CLUTCH STEEL (NAS)
€ 6.50
13091
130911041
ref: 13091
HOLDER CLUTCH SPRING
€ 8.50
13091A
130911042
ref: 13091A
HOLDER,DAMPER SPRING,
€ 16.50
13091B
130911043
ref: 13091B
HOLDER,DAMPER SPRING,
€ 16.50
13095
130951037
ref: 13095
HOUSING-COMP-CLUTCH
€ 515.00
13102
131021055
ref: 13102
RELEASE-COMP-CLUTCH
€ 39.00
13107
131071024
ref: 13107
SHAFT,CLUTCH
€ 60.50
13116
131161050
ref: 13116
ROD-PUSH,CLUTCH
€ 22.00
13116A
131161102
ref: 13116A
ROD-PUSH,CLUTCH
€ 26.50
13119
131191003
ref: 13119
CAM-RELEASE,CLUTCH
€ 11.50
13187
131871004
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 49.00
92009
920091009
ref: 92009
SCREW,SLOTTED,8M/M
€ 2.50
92015
920151053
ref: 92015
NUT,20M/M
€ 9.00
92022
920221114
ref: 92022
WASHER,TOOTHED,25X40X
€ 10.50
92022A
920221221
ref: 92022A
WASHER,CLUTCH THRUST
€ 10.50
92022B
920221223
ref: 92022B
WASHER,25.3X36X2.5
€ 5.50
92022C
920221463
ref: 92022C
WASHER,15.1X29X1.0
€ 3.00
92026
920261043
ref: 92026
SPACER,3.5X59X70
€ 19.00
92026B
920261202
ref: 92026B
SPACER,CLUTCH
€ 31.50
92027
920271284
ref: 92027
COLLAR,25X57X16.1
€ 67.00
92033
920331029
ref: 92033
RING-SNAP
€ 9.50
92033A
920331177
ref: 92033A
RING-SNAP,50MM
€ 6.00
92045
920451001
ref: 92045
BEARING,B.CLUTCH
€ 8.00
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
€ 14.00
92081
92081069
ref: 92081
SPRING-CLUTCH RELEASE
€ 4.50
92081A
920811114
ref: 92081A
SPRING,CLUTCH
€ 4.50
92081B
920811115
ref: 92081B
SPRING,CLUTCH DAMPER
€ 4.50
120
120Q0616
ref: 120
BOLT,SOCKET,6X16
€ 4.50
318
318B0800
ref: 318
NUT,8MM
€ 0.50
550
550D1615
ref: 550
PIN-COTTER,1.6X15
€ 1.50
