IGNITION SWITCH/LOCK

ZX1100A3 1985 EUROPE UK FR GR IT NR ST

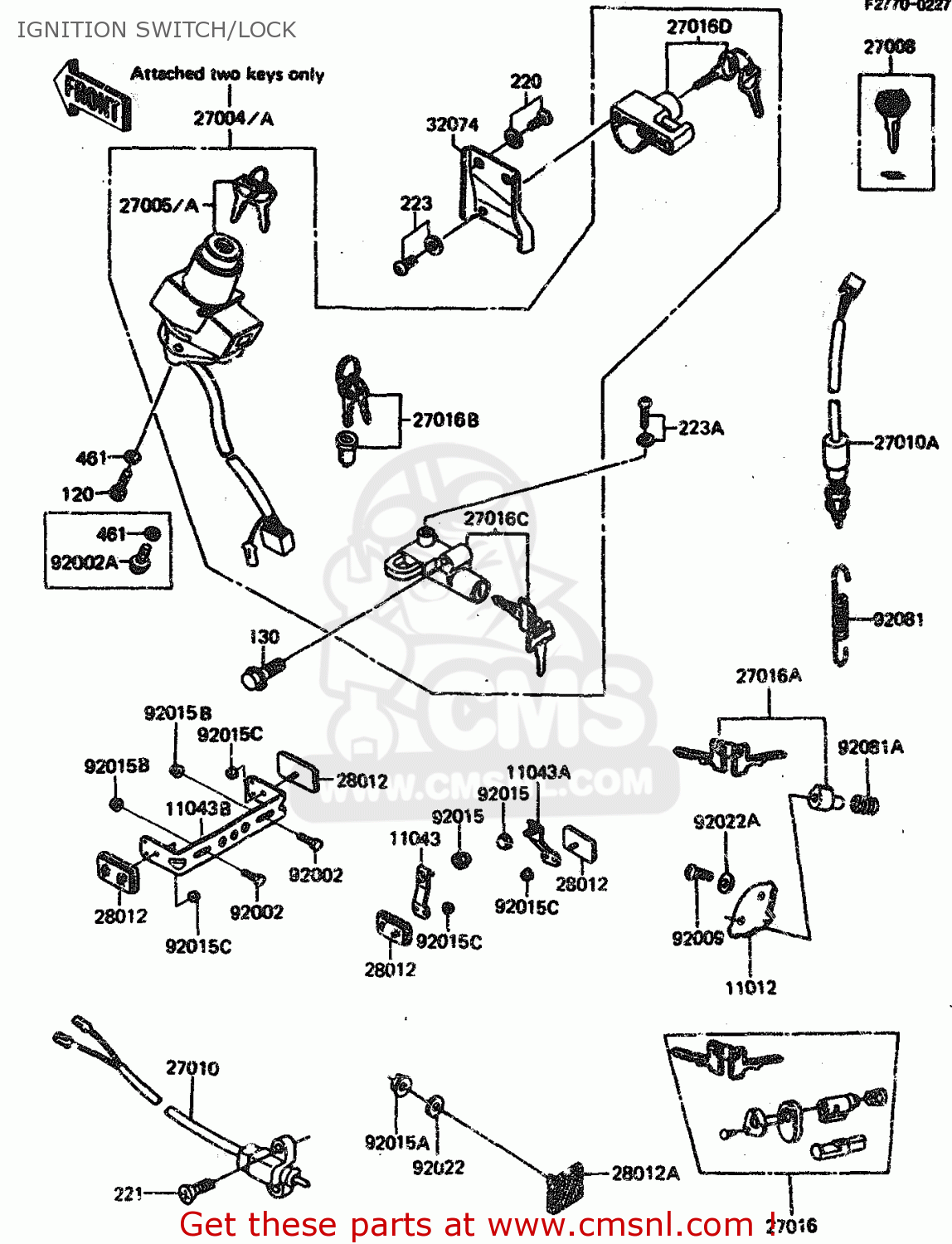

Ignition switch/lock diagram ZX1100A3 1985 EUROPE UK FR GR IT NR ST

IGNITION SWITCH/LOCK ZX1100A3 1985 EUROPE UK FR GR IT NR ST
IGNITION SWITCH/LOCK ZX1100A3 1985 EUROPE UK FR GR IT NR ST
IGNITION SWITCH/LOCK ZX1100A3 1985 EUROPE UK FR GR IT NR ST
prices are in EUR
ref
part #
description
quantity
11012
110121134
ref: 11012
WG
CAP,STEERING LOCK
110121134
€ 4.50
11043
110431216
ref: 11043
EU (OPTION)
BRACKET-B,FR REFLECTO
€ 8.50
11043A
110431217
ref: 11043A
EU (OPTION)
BRACKET-B,FR REFLECTO
€ 8.50
11043B
110431619
ref: 11043B
EU (OPTION)
BRACKET,REFLECTOR,RR
110431619
€ 9.00
27004
270045206
ref: 27004
EU, FR, GR, NR, ST,
SWITCH-ASSY,ALL
€ 267.00
27004A
270045207
ref: 27004A
WG
SWITCH-ASSY,ALL
€ 251.00
27005
270055036
ref: 27005
EU, FR, GR, NR, ST,
SWITCH-ASSY-IGNITION
€ 235.50
27005A
270055037
ref: 27005A
WG
SWITCH-ASSY-IGNITION
€ 154.00
27008
270081103
ref: 27008
(OPTION)
KEY-LOCK,BLANK
270081103
€ 13.50
27010
270101065
ref: 27010
SWITCH,SIDE STAND
270101065
€ 53.00
27010A
270101093
ref: 27010A
SWITCH,BRAKE LAMP
270101093
€ 20.00
27016A

ref: 27016A
WG (LOCAL PROCUREMEN
27016B
270165068
ref: 27016B
LOCK-ASSY,FUEL TANK
270165068
€ 71.00
27016C
270165069
ref: 27016C
LOCK-ASSY,SEAT
270165069
€ 63.00
27016D
270165070
ref: 27016D
LOCK-ASSY,HELMET
270165070
€ 43.00
28012
280121003
ref: 28012
EU (OPTION)
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121055
ref: 28012A
REFLECTOR-REFLEX,RR
280121055
€ 12.50
32074
320741056
ref: 32074
BRACKET-LOCK,HELMET
€ 6.50
92002
920021132
ref: 92002
EU (OPTION)
BOLT,6X12
€ 2.50
92002A
920021333
ref: 92002A
NR
BOLT
920021333
€ 1.50
92009
92008007
ref: 92009
WG
SCREW-TAPPING
92008007
€ 2.50
92015
920151170
ref: 92015
EU (OPTION0
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92015A
920151193
ref: 92015A
NUT,FLANGED,6MM
920151193
€ 0.50
92015B
920151193
ref: 92015B
EU (OPTION0
NUT,FLANGED,6MM
920151193
€ 0.50
92015C
920151259
ref: 92015C
EU (OPTION0
NUT,FLANGED,5MM
920151259
€ 2.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
92022125
€ 1.00
92022A
92097003
ref: 92022A
WG
WASHER
92097003
€ 2.50
92081
27011006
ref: 92081
SPRING-BRAKE LAMP SW
27011006
€ 3.50
92081A
27032001
ref: 92081A
WG
SPRING-STEERING LOCK
27032001
€ 3.50
120
120T0616
ref: 120
EU, FR, GR, ST, UK,
BOLT-SOCKET
€ 1.50
130
130C0830
ref: 130
BOLT-FLANGED,8X30,BLA
130C0830
€ 2.50
220
220B0610
ref: 220
SCREW-PAN HEAD,6X10
220B0610
€ 2.00
221
221C0520
ref: 221
SCREW-CSK-CROS
221C0520
€ 2.50
223
223B0308
ref: 223
SCREW-PAN-WS-CROS
€ 1.00
223A
223B0610
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
461
461L0600
ref: 461
WASHER-SPRING
€ 0.50
