FUEL TANK
ZX1100A3 1985 EUROPE UK FR GR IT NR ST

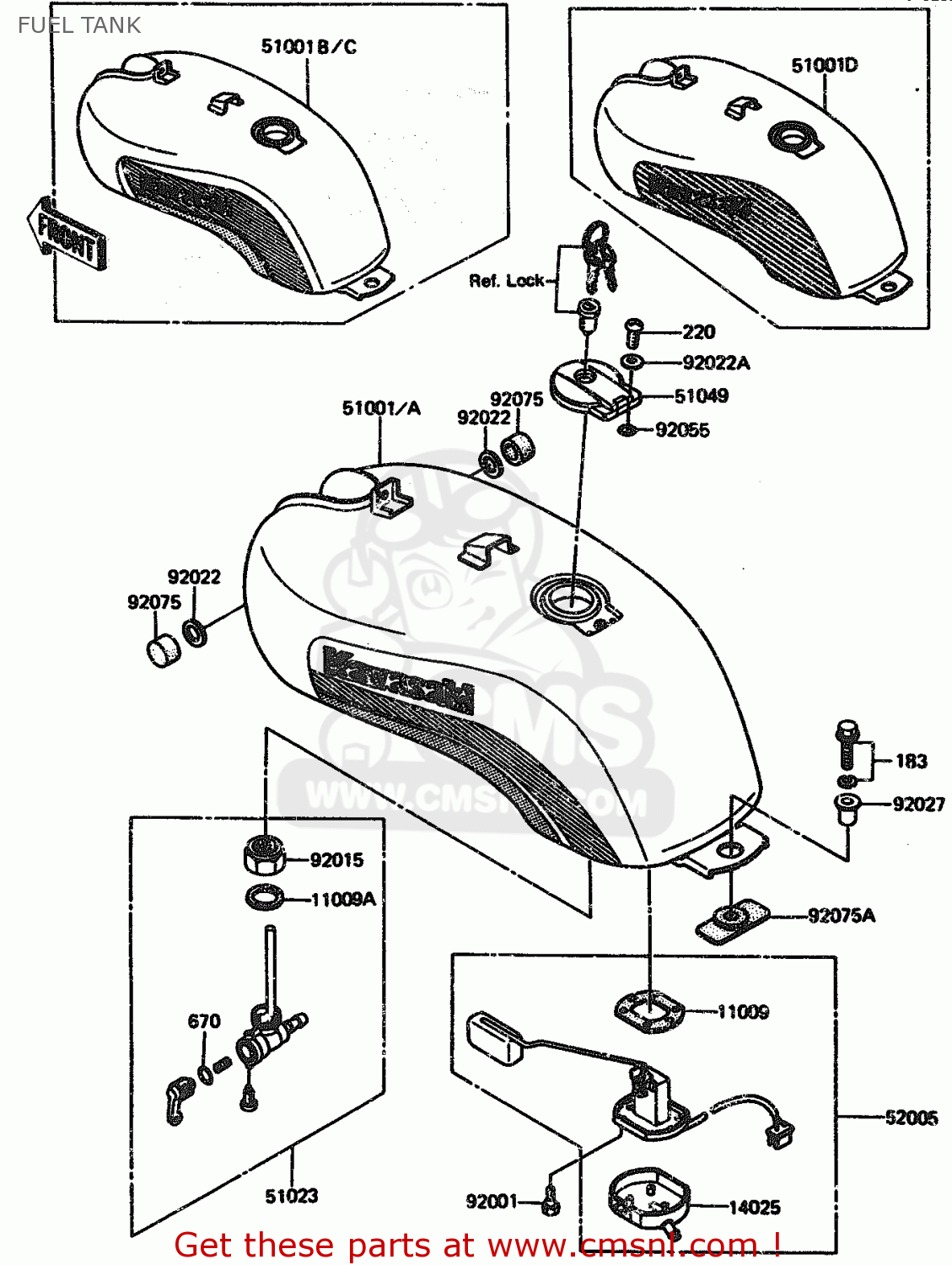

Fuel tank diagram ZX1100A3 1985 EUROPE UK FR GR IT NR ST
FUEL TANK ZX1100A3 1985 EUROPE UK FR GR IT NR ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091037
ref: 11009
GASKET (NAS)
€ 14.00
11009A
92065081
ref: 11009A
GASKET-FUEL COCK JONT (NAS)
€ 3.50
14025
140251400
ref: 14025
COVER,FUEL GAUGE
€ 22.50
51001B
510015348B1
ref: 51001B
TANK-COMP-FUEL,F.RED
€ 982.50
51001C
510015349F2
ref: 51001C
UK
TANK-COMP-FUEL,G.SILV
€ 637.00
51001D
510015366F2
ref: 51001D
EU, FR, GR, NR, ST
TANK-COMP-FUEL,G.SILV
€ 782.50
51023
510231101
ref: 51023
TAP-ASSY,FUEL
€ 75.00
51049
510491056
ref: 51049
CAP-TANK
€ 120.00
52005
520051039
ref: 52005
GAUGE,FUEL
€ 84.00
92001
920011069
ref: 92001
BOLT,FUEL GAUGE FIT
€ 4.50
92015
51035009
ref: 92015
NUT,FUEL COCK JOINT
€ 6.00
92022
92022044
ref: 92022
WASHER,10.5X26X2.3
€ 2.50
92022A
920221038
ref: 92022A
WASHER,PLAIN
€ 2.50
92027
920271653
ref: 92027
COLLAR,FLNG,8.8X10.6
€ 7.00
92055
920551023
ref: 92055
ORING
€ 2.50
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
€ 4.00
92075A
920751459
ref: 92075A
DAMPER,FUEL TANK,RR
€ 7.00
183
183B0825
ref: 183
BOLT-UPSET-WS-SMALL
€ 0.50
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
670
670B2010
ref: 670
O RING,10MM
€ 1.00
