Genuine ZX Kawasaki Parts delivered quickly!


SWINGARM

ZX1000D7F NINJA ZX10R 2007 USA CALIFORNIA CANADA

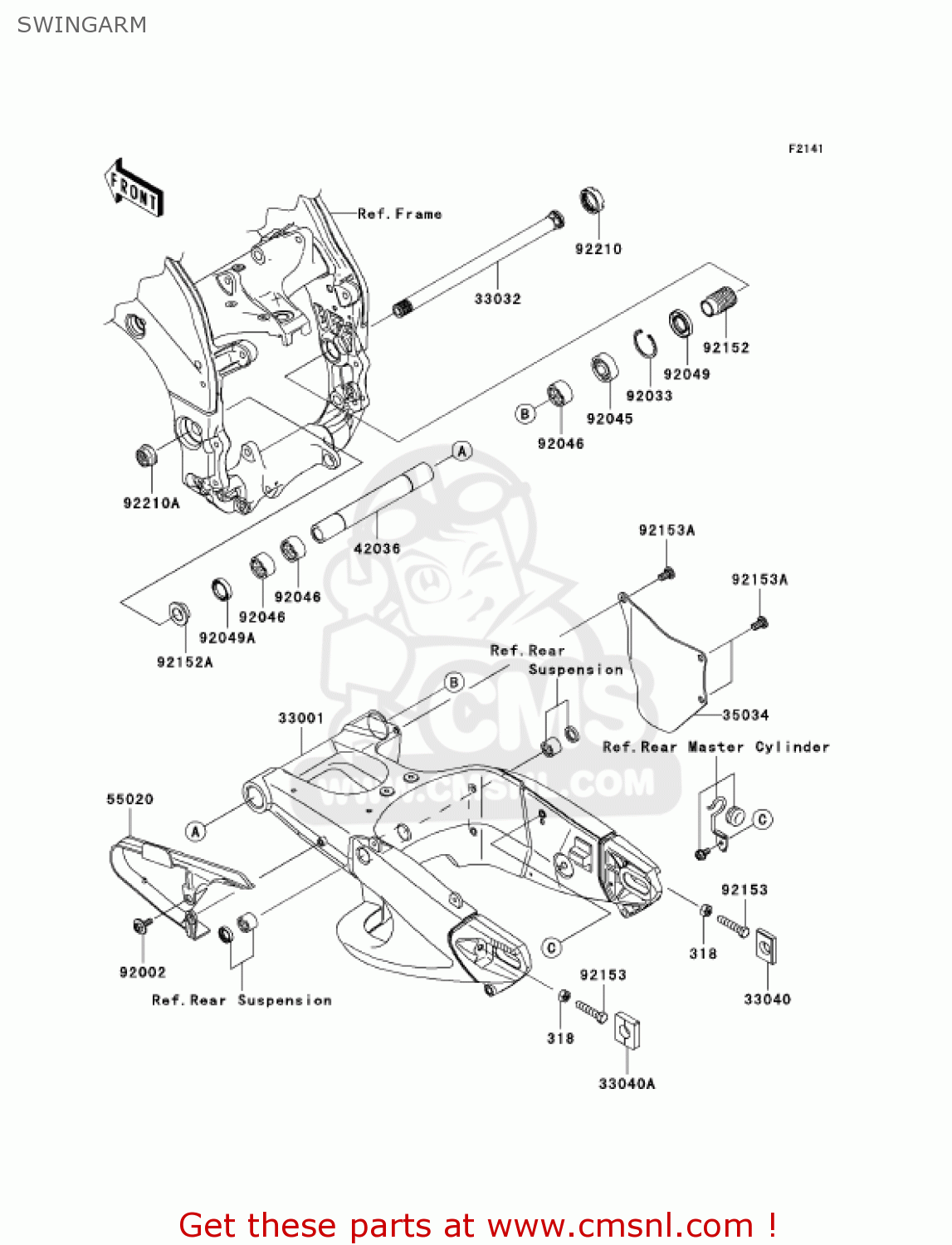

Swingarm diagram ZX1000D7F NINJA ZX10R 2007 USA CALIFORNIA CANADA

SWINGARM ZX1000D7F NINJA ZX10R 2007 USA CALIFORNIA CANADA
SWINGARM ZX1000D7F NINJA ZX10R 2007 USA CALIFORNIA CANADA
SWINGARM ZX1000D7F NINJA ZX10R 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
318
318L0800
ref: 318
NUT-HEX-SMALL
318L0800
€ 2.00
33001
33001007111E
ref: 33001
ARM-COMP-SWING,F.S.BL
33001007111E
€ 1,144.50
33032
330320013
ref: 33032
SHAFT-SWING ARM
€ 86.00
33040
330400016
ref: 33040
ADJUSTER-CHAIN,RH
330400016
€ 30.50
33040A
330401109
ref: 33040A
ADJUSTER-CHAIN
330401109
€ 13.00
35034
35034007111E
ref: 35034
REINFORCE,F.S.BLACK
€ 46.50
42036
420361341
ref: 42036
SLEEVE,SWING ARM PIVO
420361341
€ 55.00
55020
550200201
ref: 55020
GUARD,CHAIN
550200201
€ 30.50
92002
920021187
ref: 92002
BOLT,6X16
920021187
€ 2.50
92033
920331041
ref: 92033
CIRCLIP,42MM
920331041
€ 4.00
92045
920450017
ref: 92045
BEARING-BALL,6004UL11
920450017
€ 14.00
92046
920460008
ref: 92046
BEARING-NEEDLE,7E-HVS
920460008
€ 21.00
92049
920491314
ref: 92049
SEAL-OIL,MHSA25 42 6
920491314
€ 9.00
92049A
920491352
ref: 92049A
SEAL-OIL
920491352
€ 7.50
92152
921520154
ref: 92152
COLLAR,SWING ARM,L=12
921520154
€ 29.50
92152A
921520363
ref: 92152A
COLLAR,SWING ARM,LH,L
921520363
€ 7.50
92153
921530736
ref: 92153
BOLT,8X40
921530736
€ 3.00
92153A
921531548
ref: 92153A
BOLT,SOCKET,8X15
921531548
€ 2.50
92210
922100134
ref: 92210
NUT,30MM
922100134
€ 20.50
92210A
922100320
ref: 92210A
NUT,FLANGED,20MM
922100320
€ 9.00
