CRANKCASE BOLT PATTERN

ZX1000D7F NINJA ZX10R 2007 USA CALIFORNIA CANADA

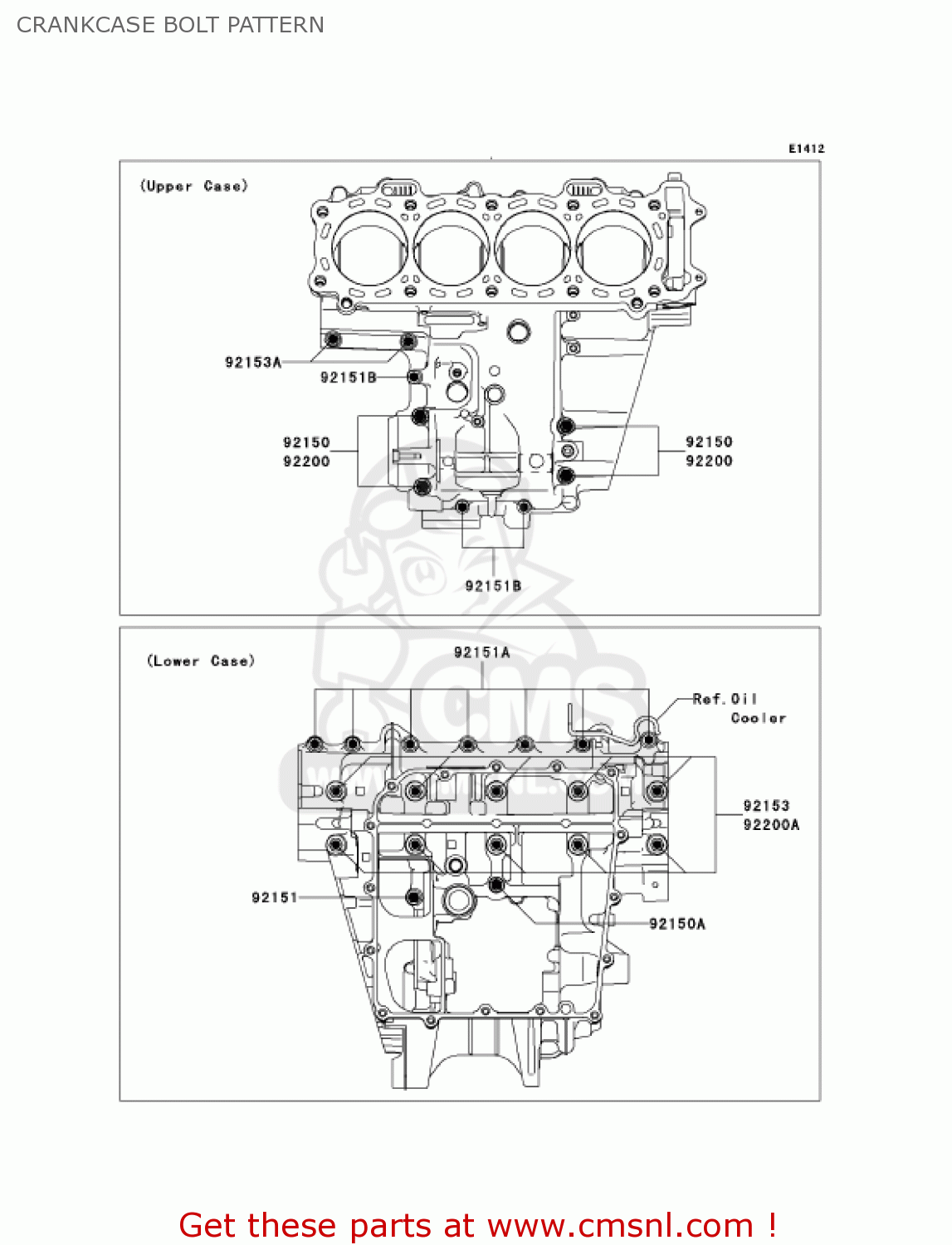

Crankcase bolt pattern diagram ZX1000D7F NINJA ZX10R 2007 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

92150

921501162
ref: 92150

BOLT,8X80

€ 4.00

92150

921501251
ref: 92150

BOLT,7X85

€ 8.00

92151

921511223
ref: 92151

BOLT,7X50

€ 2.50

92151

921511521
ref: 92151

BOLT,6X45

€ 1.50

92151

921511583
ref: 92151

BOLT,6X40

€ 2.00

92153

921530447
ref: 92153

BOLT,9X100

€ 5.00

92153

921530448
ref: 92153

BOLT,7X32

€ 2.50

92200

922000047
ref: 92200

WASHER,8.2X16X1.6

€ 2.00

92200

922000115
ref: 92200

WASHER,9.2X19X23

€ 2.50
