OIL PAN

ZX1000D7F NINJA ZX10R 2007 USA CALIFORNIA CANADA

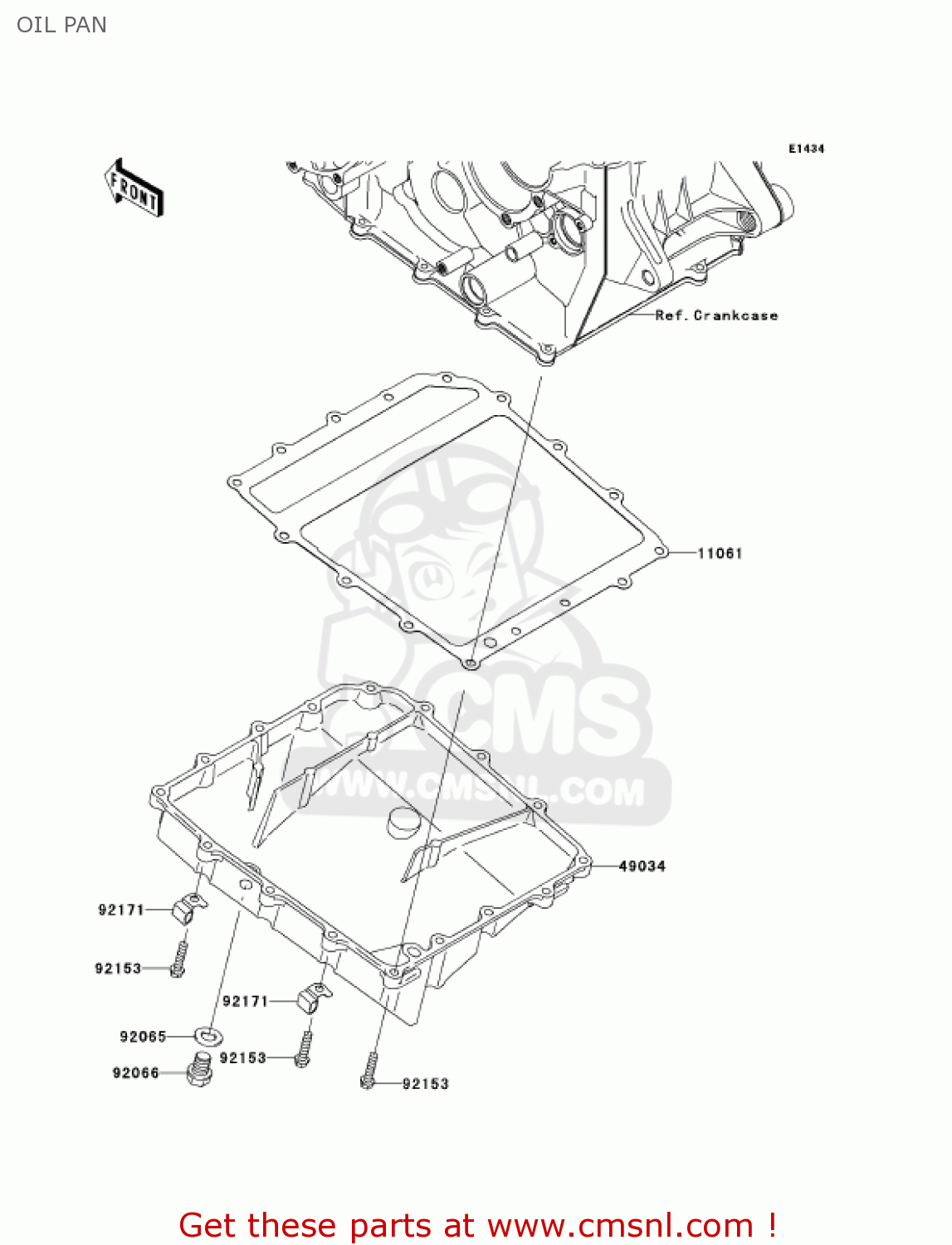

Oil pan diagram ZX1000D7F NINJA ZX10R 2007 USA CALIFORNIA CANADA

OIL PAN ZX1000D7F NINJA ZX10R 2007 USA CALIFORNIA CANADA

OIL PAN ZX1000D7F NINJA ZX10R 2007 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11061

110610180
ref: 11061

GASKET,OIL PAN (NAS)

€ 23.50

49034

490340020
ref: 49034

PAN-OIL

€ 216.00

92065

92065097
ref: 92065

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

92066

920661174
ref: 92066

PLUG,OIL DRAIN,12X15

€ 4.00

92153

921531569
ref: 92153

BOLT-FLANGED,6X25

€ 1.00

92171

921710703
ref: 92171

CLAMP

€ 4.00
