GEAR CHANGE MECHANISM

ZX1000D7F NINJA ZX10R 2007 USA CALIFORNIA CANADA

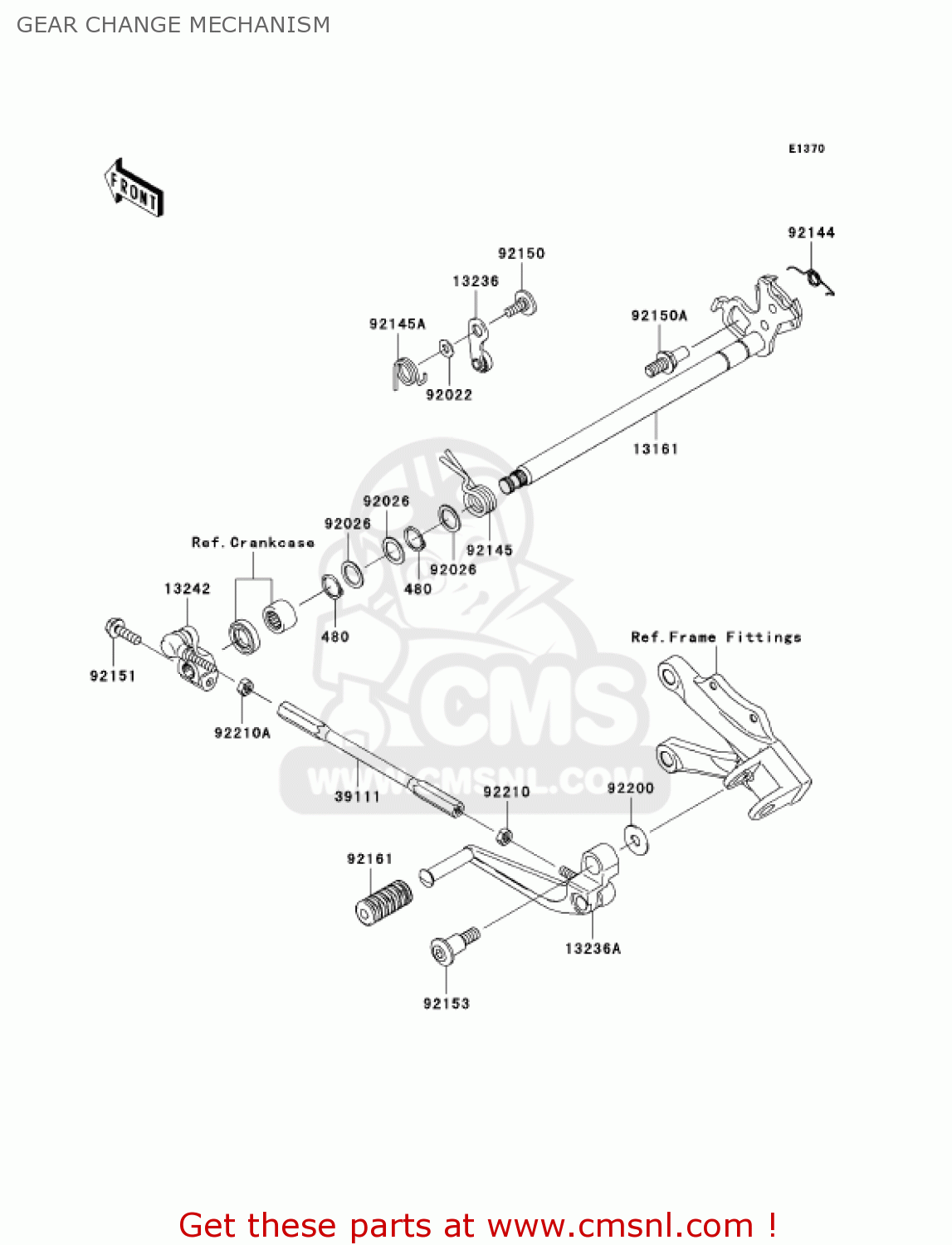

Gear change mechanism diagram ZX1000D7F NINJA ZX10R 2007 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

480

480J1400
ref: 480

CIRCLIP-TYPE-C,14MM

€ 3.00

13161

131610036
ref: 13161

LEVER-COMP-CHANGE SHA

€ 94.00

13236

132360089
ref: 13236

LEVER-COMP,POSITION

€ 9.50

13236A

132360091
ref: 13236A

LEVER-COMP,CHANGE PED

€ 94.50

13242

132420019
ref: 13242

LEVER-ASSY-CHANGE

€ 37.50

39111

391111157
ref: 39111

ROD-TIE

€ 33.50

92022

920221827
ref: 92022

WASHER,6X12.8X1.2

€ 3.00

92026

920261534
ref: 92026

SPACER

€ 2.50

92144

921441029
ref: 92144

SPRING

€ 5.00

92145

921450256
ref: 92145

SPRING

€ 5.50

92145A

921450317
ref: 92145A

SPRING

€ 3.50

92150

921501673
ref: 92150

BOLT

€ 7.00

92150A

921501869
ref: 92150A

BOLT,RETURN SPRING

€ 7.00

92151

921511226
ref: 92151

BOLT,6X20

€ 1.50

92153

921530446
ref: 92153

BOLT,8X32

€ 7.50

92161

921611300
ref: 92161

DAMPER,CHANGE PEDAL

€ 4.00

92200

922000174
ref: 92200

WASHER,8.0X22.0X1.5

€ 1.50

92210

922101100
ref: 92210

NUT

€ 1.50

92210A

922101101
ref: 92210A

NUT

€ 1.50
