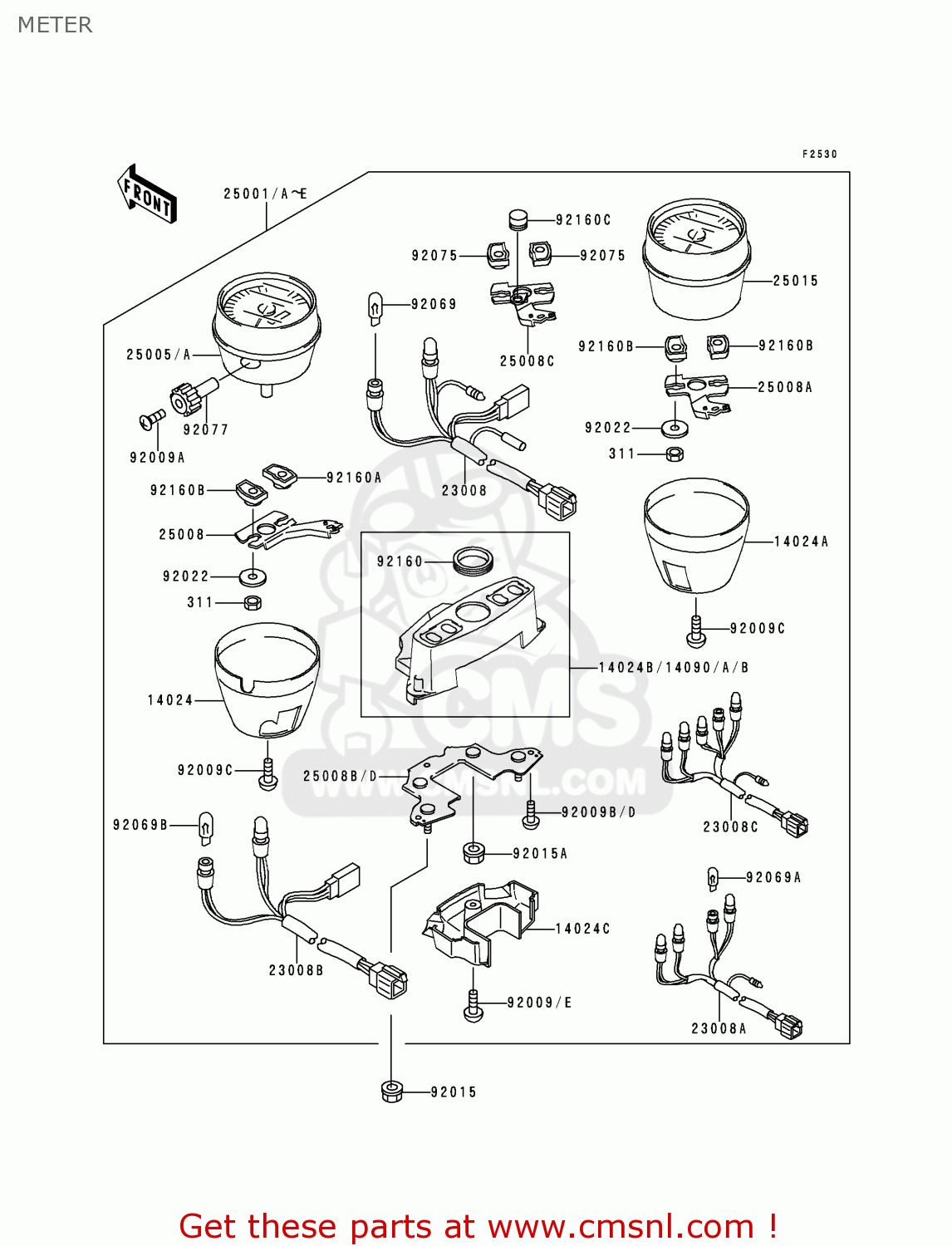

METER

ref

part #

description

quantity

14024

140241986
ref: 14024

COVER,SPEEDOMETER

€ 71.50

14024A

140241987
ref: 14024A

COVER,TACHOMETER

€ 71.50

14024C

140241989
ref: 14024C

COVER,PILOT BOX,LWR

€ 23.50

14090A

140901353
ref: 14090A
AREUFGGRSPSTUK

COVER,PILOT BOX,UPP

€ 49.50

14090B

140901374
ref: 14090B
FRNR

COVER,PILOT BOX,UPP

€ 47.50

23008

230081458
ref: 23008

SOCKET-ASSY,TACHOMETE

€ 43.00

23008B

230081460
ref: 23008B

SOCKET-ASSY,SPEEDOMET

€ 43.00

23008C

230081516
ref: 23008C

SOCKET-ASSY,PILOT BOX

€ 86.00

25001C

250011947
ref: 25001C
AREUFGGRSPST

METER-ASSY,KPH

€ 1,563.00

25001D

250011948
ref: 25001D
FRNR

METER-ASSY,KPH

€ 1,418.00

25001E

250011949
ref: 25001E
UK

METER-ASSY,MPH

€ 1,418.00

25005

250051466
ref: 25005
AREUFGFRGRNRSPST

SPEEDOMETER,KPH

€ 315.00

25005A

250051469
ref: 25005A
UK

SPEEDOMETER,MPH

€ 227.50

25008

250081171
ref: 25008

BRACKET-METER,SPEED

€ 15.00

25008C

250081185
ref: 25008C

BRACKET-METER,TACHO

€ 20.50

25008D

250081197
ref: 25008D

BRACKET-METER,PILOT B

€ 37.00

25015

250151298
ref: 25015

TACHOMETER,X1000R/MIN

€ 404.50

311

311B0500
ref: 311

NUT-HEX

€ 0.50

92009A

920091172
ref: 92009A

SCREW,2X6,BLACK

€ 2.00

92009B

920091395
ref: 92009B

SCREW

€ 2.50

92009C

920091601
ref: 92009C

SCREW,TAPPING,4X16

€ 2.00

92009E

920091690
ref: 92009E

SCREW,4X6

€ 2.50

92015

920151237
ref: 92015

NUT,FLANGED,6MM,BLACK

€ 3.50

92015A

920151367
ref: 92015A

NUT,FLANGED,6MM

€ 0.50

92022

92022263
ref: 92022

WASHER,PLAIN,6MM

€ 1.50

92069

920691020
ref: 92069

BULB,12C3W T-7

€ 3.00

92069A

920691068
ref: 92069A

BULB,14V 3W

€ 2.50

92069B

920691085
ref: 92069B

BULB,12V 1.7W

€ 3.00

92075

920751714
ref: 92075

DAMPER,METER

€ 8.50

92077

920771096
ref: 92077

KNOB,RESET TRIP

€ 15.00

92160

921601179
ref: 92160

DAMPER,IGNITION SWITC

€ 5.50

92160A

921601280
ref: 92160A

DAMPER,METER

€ 3.50

92160B

921601281
ref: 92160B

DAMPER,METER

€ 3.50

92160C

921601309
ref: 92160C

DAMPER,METER

€ 2.50

all assemblies
